Amplite™ Colorimetric NADH Assay Kit

Image Viewer
Analyze with Quest Graph™Plan a serial dilution
Close (X)
10.11e-210010- Dose-responseData legend Generated with Quest Graph™ NADH (uM) Absorbance Hover mouse to interact
NADH dose response was measured with Amplite™ Colorimetric NADH Assay Kit in a 96-well white/clear bottom plate using a SpectraMax microplate reader (Molecular devices).
Unit Size: Cat No: Price (USD): Qty:
400 Tests 15271 $245

Export item/cart as Excel file

Send item/cart as email

Important: We request your email address to ensure that the recipient(s) knows you intended for them to see the email, and that it is not junk mail.
Your Name*:
Your Email*:
Recipient Email*:
Your Personal Message:
Additional Ordering Information
Telephone: 1-800-990-8053
Fax: 1-408-733-1304
International: See distributors


Ex/Em (nm)460/None
Storage Freeze (<-15 °C)
Minimize light exposure
InstrumentsAbsorbance microplate reader
Category Cell Biology
Cell Metabolism
Related Redox Enzymes
Nicotinamide adenine dinucleotide (NAD+) and nicotinamide adenine dinucleotide phosphate (NADP+) are two important cofactors found in cells. NADH is the reduced form of NAD+. NAD forms NADP with the addition of a phosphate group to the 2' position of the adenyl nucleotide through an ester linkage. The traditional NAD/NADH and NADP/NADPH assays are based on monitoring the changes in NADH or NADPH absorption at 340 nm. The short UV wavelength of NAD/NADH and NADP/NADPH assays makes the traditional methods suffer low sensitivity and high interference. Due to the weak absorption of NAD and NADH, the UV absorption method requires large sample sizes, making NAD and NADH measurements unpractical for limited sample size. AAT Bioquest's Amplite™ Colorimetric NADH Assay Kit provides a convenient method for the detection of NADH. The NADH probe is a chromogenic sensor that has its maximum absorbance at 460 nm upon NADH reduction. The absorbance increase at 460 nm is directly proportional to the concentration of NADH in the solution. The NADH probe can recognize NADH in an enzyme-free reaction, and the signal can be easily read by an absorbance microplate reader at ~460 nm. The Amplite™ Colorimetric NADH Assay Kit provides a sensitive assay to detect as little as 3 µM NADH in a 100 µL assay volume. The assay can be performed in a convenient 96-well or 384-well microtiter-plate format.


Quick Preview

This protocol only provides a guideline, and should be modified according to your specific needs.
At a glance

Protocol summary

  1. Prepare NADH working solution (50 µL)
  2. Add NADH standards or test samples (50 µL)
  3. Incubate at RT for 15 minutes to 2 hours
  4. Monitor Absorbance at 460 nm

Important notes
Thaw one of each kit component at room temperature before starting the experiment.

Key parameters
Instrument:Absorbance microplate reader
Absorbance:460 nm
Recommended plate:Clear bottom
Preparation of stock solution
Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

1. NADH standard solution (1mM):
Add 200 µL of PBS buffer into the vial of NADH standard (Component C) to make 1 mM (1 nmol/µL) NADH standard solution.

Preparation of standard solution
NADH standard

For convenience, use the Serial Dilution Planner:

Add 100 μL of 1 mM (1 nmol/µL) NADH standard solution into 400 μL PBS buffer (pH 7.4) to generate 200 μM (100 pmol/μL) NADH standard solution (NS7). Take 200 μM NADH standard solution and perform 1:2 serial dilutions in PBS to get serial dilutions of NADH standard (NS6 - NS1). Note: Diluted NADH standard solution is unstable, and should be used within 4 hours.

Preparation of working solution

Add 1 mL of NADH Probe (Component A) into 4 mL NADH Assay Buffer (Component B) and mix well to make NADH working solution. Note: 5 mL NADH working solution is for one 96-well.

For guidelines on cell sample preparation, please visit

Sample experimental protocol

Table 1. Layout of NADH standards and test samples in a white/clear bottom 96-well microplate. NS= NADH Standards (NS1 - NS7, 3.13 to 200 µM), BL=Blank Control, TS=Test Samples.

NS1 NS1 ... ...
NS2 NS2 ... ...
NS3 NS3
NS4 NS4
NS5 NS5
NS6 NS6
NS7 NS7

Table 2. Reagent composition for each well.

Well Volume Reagent
NS1 - NS7 50 µL Serial Dilutions (3.13 to 200 µM)
BL 50 µL PBS
TS 50 µL test sample
  1. Prepare NADH standards (NS), blank controls (BL), and test samples (TS) according to the layout provided in Tables 1 and 2. For a 384-well plate, use 25 µL of reagent per well instead of 50 µL. Note: Prepare cells or tissue samples as desired. Lysis Buffer (Component D) can be used for lysing the cells for convenience.

  2. Add 50 µL of NADH working solution to each well of NADH standard, blank control, and test samples to make the total NADH assay volume of 100 µL/well. For a 384-well plate, add 25 µL of NADH working solution into each well instead, for a total volume of 50 µL/well.

  3. Incubate the reaction at room temperature for 15 minutes to 2 hours. Protect from light.

  4. Monitor the absorbance increase with an absorbance plate reader at 460 nm.
Example data analysis and figures

The reading (Absorbance) obtained from the blank standard well is used as a negative control. Subtract this value from the other standards' readings to obtain the base-line corrected values. Then, plot the standards' readings to obtain a standard curve and equation. This equation can be used to calculate NADH samples. We recommend using the Online Linear Regression Calculator which can be found at:

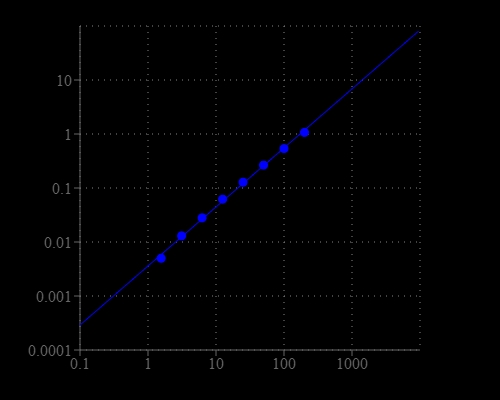

Figure 1. NADH dose response was measured with Amplite™ Colorimetric NADH Assay Kit in a 96-well white/clear bottom plate using a SpectraMax microplate reader (Molecular devices).

AAT Bioquest provides high-quality reagents and materials for research use only. For proper handling of potentially hazardous chemicals, please consult the Safety Data Sheet (SDS) provided for the product. Chemical analysis and/or reverse engineering of any kit or its components is strictly prohibited without written permission from AAT Bioquest. Please call 408-733-1055 or email if you have any questions.

References & Citations

Celastrol attenuates angiotensin II mediated human umbilical vein endothelial cells damage through activation of Nrf2/ERK1/2/Nox2 signal pathway
Authors: Miao Li, Xin Liu, Yongpeng He, Qingyin Zheng, Min Wang, Yu Wu, Yuanpeng Zhang, Chaoyun Wang
Journal: European Journal of Pharmacology (2017): 124--133

Cytosolic Redox Status of Wine Yeast (Saccharomyces Cerevisiae) under Hyperosmotic Stress during Icewine Fermentation
Authors: Fei Yang, Caitlin Heit, Debra L Inglis
Journal: Fermentation (2017): 61

Epigenetic regulation of Runx2 transcription and osteoblast differentiation by nicotinamide phosphoribosyltransferase
Authors: Min Ling, Peixin Huang, Shamima Islam, Daniel P Heruth, Xuanan Li, Li Qin Zhang, Ding-You Li, Zhaohui Hu, Shui Qing Ye
Journal: Cell & Bioscience (2017): 27

MCU-dependent mitochondrial Ca2+ inhibits NAD+/SIRT3/SOD2 pathway to promote ROS production and metastasis of HCC cells
Authors: T Ren, H Zhang, J Wang, J Zhu, M Jin, Y Wu, X Guo, L Ji, Q Huang, H Yang
Journal: Oncogene (2017)

Metabolic and molecular insights into an essential role of nicotinamide phosphoribosyltransferase
Authors: Li Q Zhang, Leon Van Haandel, Min Xiong, Peixin Huang, Daniel P Heruth, Charlie Bi, Roger Gaedigk, Xun Jiang, Ding-You Li, Gerald Wyckoff
Journal: Cell Death & Disease (2017): e2705

Pyrroloquinoline Quinone, a Redox-active o-Quinone, Stimulates Mitochondrial Biogenesis by Activating SIRT1/PGC-1α Signaling Pathway
Authors: Kazuhiro Saihara, Ryosuke Kamikubo, Kazuto Ikemoto, Koji Uchida, Mitsugu Akagawa
Journal: Biochemistry (2017)

Resveratrol attenuates excessive ethanol exposure induced insulin resistance in rats via improving NAD+/NADH ratio
Authors: Gang Luo, Bingqing Huang, Xiang Qiu, Lin Xiao, Ning Wang, Qin Gao, Wei Yang, Liping Hao
Journal: Molecular Nutrition & Food Research (2017)

Authors: Tatiana Bilova, Elena Lukasheva, Dominic Brauch, Uta Greifenhagen, Gagan Paudel, Elena Tarakhovskaya, Nadezhda Frolova, Juliane Mittasch, Gerd Ulrich Balcke, Alain Tissier
Journal: Journal of Biological Chemistry (2016): 7621--7636

AMPK activation protects cells from oxidative stress-induced senescence via autophagic flux restoration and intracellular NAD+ elevation
Authors: Xiaojuan Han, Haoran Tai, Xiaobo Wang, Zhe Wang, Jiao Zhou, Xiawei Wei, Yi Ding, Hui Gong, Chunfen Mo, Jie Zhang
Journal: Aging cell (2016): 416--427

Cell-Line Selectivity Improves the Predictive Power of Pharmacogenomic Analyses and Helps Identify NADPH as Biomarker for Ferroptosis Sensitivity
Authors: Kenichi Shimada, Miki Hayano, Nen C Pagano, Brent R Stockwell
Journal: Cell chemical biology (2016): 225--235

View More Citations
