DAX-J2™ Red

DAX-J2™ Red is a new nitric oxide (NO) sensor recently developed by AAT Bioquest. It is a non-fluorescent cell permeable reagent that can measure free NO and nitric oxide synthase (NOS) activity in living cells under physiological conditions. Once inside the cell the blocking groups on the DAX-J2 reagent are released to generate the highly fluorescent product upon NO oxidation. DAX-J2 fluorescent product can be detected using the filter set of Texas Red® that is equipped with most of flow cytometers and fluorescence microscope. DAX-J2 Red has distinct advantages for NO detection than the popular DAF-2 NO probe: 1). It does not require esterase activity for NO detection. DAF-2 requires intracellular esterases to cleave its acetate groups for detecting NO activity. This esterase dependence often complicates the NO detection since esterase activities are affected by cell health and many other factors. 2). DAX-2 product exhibits pH-independent fluorescence while DAF-2 has its fluorescence highly affected by pH. 3). DAX-J2 Red fluorescent product is much more photostable than DAF-2 product. 4). It is more sensitive for detecting NO than DAF-2. 5). It can be used with GFP cell lines or with the applications that use FITC-labeled antibodies for multicolor cell analysis.

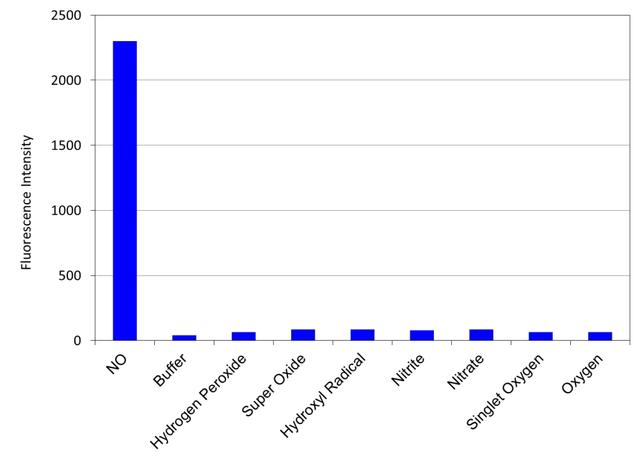

Fluorescence response of DAX-J2<sup>TM</sup> Red (2 uM) to different reactive oxygen species (1 mM) in PBS buffer (pH 7.2). The fluorescence intensities were measured with Ex/Em = 570/610 nm.

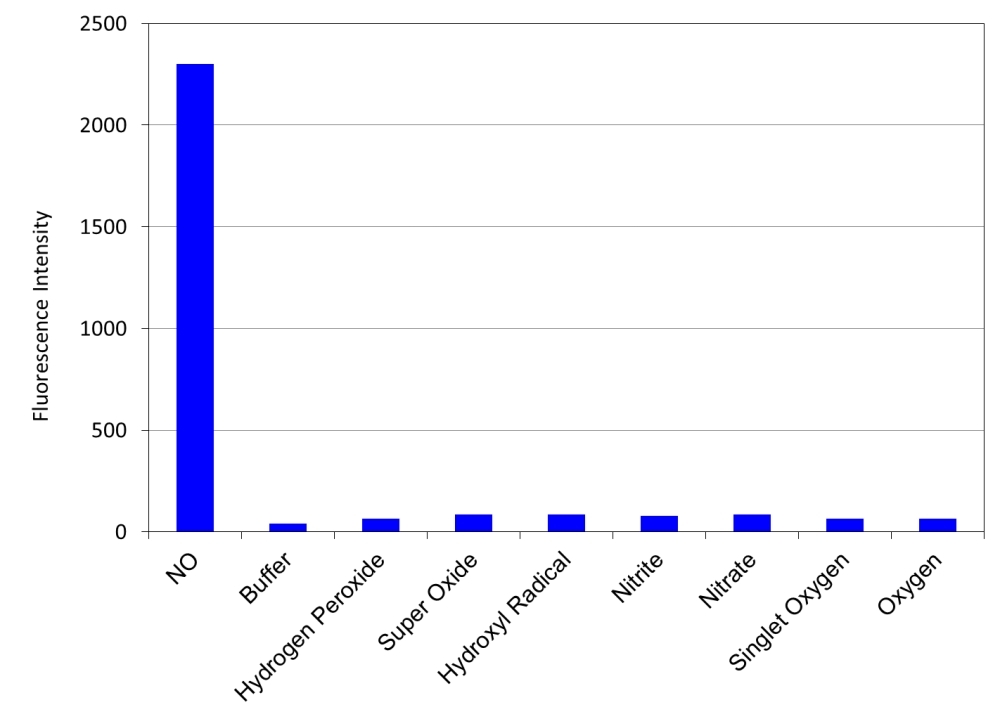

Fluorescence response of DAX-J2<sup>TM</sup> Red (2 uM) to different reactive oxygen species (1 mM) in PBS buffer (pH 7.2). The fluorescence intensities were measured with Ex/Em = 570/610 nm.
Fluorescence response of DAX-J2<sup>TM</sup> Red (2 uM) to different reactive oxygen species (1 mM) in PBS buffer (pH 7.2). The fluorescence intensities were measured with Ex/Em = 570/610 nm.
Ordering information
Price
Unit size
Catalog Number16301
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Molecular weight608.77
SolventDMSO
Spectral properties
Excitation (nm)587
Emission (nm)609
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12352200
Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of DAX-J2™ Red to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM164.266 µL821.328 µL1.643 mL8.213 mL16.427 mL
5 mM32.853 µL164.266 µL328.531 µL1.643 mL3.285 mL
10 mM16.427 µL82.133 µL164.266 µL821.328 µL1.643 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=
Spectrum
Product family
NameExcitation (nm)Emission (nm)
DAX-J2™ Orange552575
Citations
View all 7 citations: Citation Explorer
Presynaptic NK1 Receptor Activation by Substance P Suppresses EPSCs via Nitric Oxide Synthesis in the Rat Insular Cortex
Authors: Matsumura, Sachie and Yamamoto, Kiyofumi and Nakaya, Yuka and O'Hashi, Kazunori and Kaneko, Keisuke and Takei, Hiroki and Tsuda, Hiromasa and Shirakawa, Tetsuo and Kobayashi, Masayuki
Journal: Neuroscience (2021): 151--164
One-step preparation of the engineered titanium implant by rationally designed linear fusion peptides with spacer-dependent antimicrobial, anti-inflammatory and osteogenic activities
Authors: Xin, Haoqian and Chen, Junjian and Li, Tianjie and Hu, Guansong and Fang, Zhou and Zhou, Haiyan and Guo, Kunzhong and Wang, Lin and Wang, Yingjun
Journal: Chemical Engineering Journal (2021): 130380
Aspirin eugenol ester attenuates oxidative injury of vascular endothelial cells by regulating NOS and Nrf2 signaling pathways
Authors: Huang, Mei-Zhou and Yang, Ya-Jun and Liu, Xi-Wang and Qin, Zhe and Li, Jian-Yong
Journal: British Journal of Pharmacology (2019)
References
View all 139 references: Citation Explorer
Pitfalls and limitations in using 4,5-diaminofluorescein for evaluating the influence of polyphenols on nitric oxide release from endothelial cells
Authors: Uhlenhut K, Hogger P.
Journal: Free Radic Biol Med (2012): 2266
Effects of moderate electrical stimulation on reactive species production by primary rat skeletal muscle cells: cross talk between superoxide and nitric oxide production
Authors: Lambertucci RH, Silveira Ldos R, Hirabara SM, Curi R, Sweeney G, Pithon-Curi TC.
Journal: J Cell Physiol (2012): 2511
Improved measurements of intracellular nitric oxide in intact microvessels using 4,5-diaminofluorescein diacetate
Authors: Zhou X, He P.
Journal: Am J Physiol Heart Circ Physiol (2011): H108
Aging negatively affects estrogens-mediated effects on nitric oxide bioavailability by shifting ERalpha/ERbeta balance in female mice
Authors: Novensa L, Novella S, Medina P, Segarra G, Castillo N, Heras M, Hermenegildo C, Dantas AP.
Journal: PLoS One (2011): e25335
Temporal and spatial correlation of platelet-activating factor-induced increases in endothelial [Ca(2)(+)]i, nitric oxide, and gap formation in intact venules
Authors: Zhou X, He P.
Journal: Am J Physiol Heart Circ Physiol (2011): H1788
