DiD labeling solution [1,1-Dioctadecyl-3,3,3,3-tetramethylindodicarbocyanine] *5 mM DMSO solution*
Overview | ![]() ![]() |
See also: Cell Signaling, Cell Structures and Organelles, Plasma Membrane, Cellular Processes, Membrane Potential and Channels, Physiological Probes
CAS 127274-91-3 | Molecular weight 959.91 | Extinction coefficient (cm -1 M -1) 260000 | Excitation (nm) 646 | Emission (nm) 663 |
DiI, DiO, DiD and DiR dyes are a family of lipophilic fluorescent stains for labeling membranes and other hydrophobic structures. The fluorescence of these environment-sensitive dyes is greatly enhanced when incorporated into membranes or bound to lipophilic biomolecules such as proteins although they are weakly fluorescent in water. They have high extinction coefficients, polarity-dependent fluorescence and short excited-state lifetimes. Once applied to cells, these dyes diffuse laterally within the cellular plasma membranes, resulting in even staining of the entire cell at their optimal concentrations. The distinct fluorescence colors of DiI (orange fluorescence), DiO (green fluorescence), DiD (red fluorescence) and DiR (deep red fluorescent) provide a convenient tool for multicolor imaging and flow cytometric analysis of live cells. DiO and DiI can be used with standard FITC and TRITC filters respectively. Among them DiD is well excited by the 633 nm He-Ne laser, and has much longer excitation and emission wavelengths than those of DiI, providing a valuable alternative for labeling cells and tissues that have significant intrinsic fluorescence. DiR might be useful for in vivo imaging or tracing due to the effective transmission of infrared light through cells and tissues and low level of autofluorescence in the infrared range.
Calculators
Common stock solution preparation
Table 1. Volume of DMSO needed to reconstitute specific mass of DiD labeling solution [1,1-Dioctadecyl-3,3,3,3-tetramethylindodicarbocyanine] *5 mM DMSO solution* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.
0.1 mg | 0.5 mg | 1 mg | 5 mg | 10 mg | |
1 mM | 104.176 µL | 520.882 µL | 1.042 mL | 5.209 mL | 10.418 mL |
5 mM | 20.835 µL | 104.176 µL | 208.353 µL | 1.042 mL | 2.084 mL |
10 mM | 10.418 µL | 52.088 µL | 104.176 µL | 520.882 µL | 1.042 mL |
Molarity calculator
Enter any two values (mass, volume, concentration) to calculate the third.
Mass (Calculate) | Molecular weight | Volume (Calculate) | Concentration (Calculate) | Moles | ||||
/ | = | x | = |

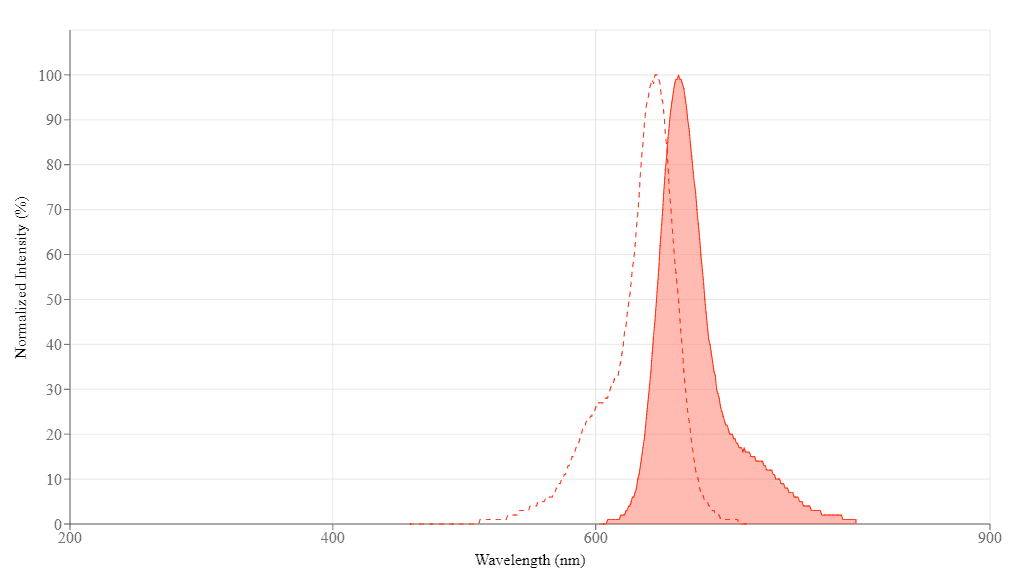

Spectrum
Open in Advanced Spectrum Viewer
Spectral properties
Extinction coefficient (cm -1 M -1) | 260000 |
Excitation (nm) | 646 |
Emission (nm) | 663 |
Citations
View all 55 citations: Citation Explorer
Salivary protein glycopatterns for natural regulation of oral microbiota
Authors: Shu, Jian and Yu, Hanjie and Wang, Yan and Wang, Xilong and Ren, Xiameng and Zhang, Kun and Tang, Zhen and Chen, Wentian and Li, Baozhen and Li, Zheng
Journal: (2021)
Authors: Shu, Jian and Yu, Hanjie and Wang, Yan and Wang, Xilong and Ren, Xiameng and Zhang, Kun and Tang, Zhen and Chen, Wentian and Li, Baozhen and Li, Zheng
Journal: (2021)
A Stable Cell Membrane-Based Coating with Antibiofouling and Macrophage Immunoregulatory Properties for Implants at the Macroscopic Level
Authors: Dong, Zhiyun and Ke, Xiang and Tang, Shuxian and Wu, Shuai and Wu, Wei and Chen, Xingyu and Yang, Jiaojiao and Xie, Jing and Luo, Jun and Li, Jianshu
Journal: Chemistry of Materials (2021)
Authors: Dong, Zhiyun and Ke, Xiang and Tang, Shuxian and Wu, Shuai and Wu, Wei and Chen, Xingyu and Yang, Jiaojiao and Xie, Jing and Luo, Jun and Li, Jianshu
Journal: Chemistry of Materials (2021)
Engineered macrophages as near-infrared light activated drug vectors for chemo-photodynamic therapy of primary and bone metastatic breast cancer
Authors: Huang, Yanjuan and Guan, Zilin and Dai, Xiuling and Shen, Yifeng and Wei, Qin and Ren, Lingling and Jiang, Jingwen and Xiao, Zhanghong and Jiang, Yali and Liu, Di and others,
Journal: Nature Communications (2021): 1--22
Authors: Huang, Yanjuan and Guan, Zilin and Dai, Xiuling and Shen, Yifeng and Wei, Qin and Ren, Lingling and Jiang, Jingwen and Xiao, Zhanghong and Jiang, Yali and Liu, Di and others,
Journal: Nature Communications (2021): 1--22
Chemosensitization of Temozolomide-Resistant Pediatric Diffuse Midline Glioma Using Potent Nanoencapsulated Forms of a N (3)-Propargyl Analogue
Authors: Heravi Shargh, Vahid and Luckett, Jeni and Bouzinab, Kaouthar and Paisey, Stephen and Turyanska, Lyudmila and Singleton, William GB and Lowis, Stephen and Gershkovich, Pavel and Bradshaw, Tracey D and Stevens, Malcolm FG and others,
Journal: ACS Applied Materials \& Interfaces (2021)
Authors: Heravi Shargh, Vahid and Luckett, Jeni and Bouzinab, Kaouthar and Paisey, Stephen and Turyanska, Lyudmila and Singleton, William GB and Lowis, Stephen and Gershkovich, Pavel and Bradshaw, Tracey D and Stevens, Malcolm FG and others,
Journal: ACS Applied Materials \& Interfaces (2021)
Heparanase induces necroptosis of microvascular endothelial cells to promote the metastasis of hepatocellular carcinoma
Authors: Chen, Xiaopeng and Cheng, Bin and Dai, Dafei and Wu, Yuhai and Feng, Zhiwen and Tong, Chaogang and Wang, Xiangming and Zhao, Jun
Journal: Cell death discovery (2021): 1--13
Authors: Chen, Xiaopeng and Cheng, Bin and Dai, Dafei and Wu, Yuhai and Feng, Zhiwen and Tong, Chaogang and Wang, Xiangming and Zhao, Jun
Journal: Cell death discovery (2021): 1--13
Polymer-loaded hydrogels serve as depots for lactate and mimic “cold” tumor microenvironments
Authors: Allen, Riley and Ivtchenko, Emilie and Thuamsang, Bhasirie and Sangsuwan, Rapeepat and Lewis, Jamal S
Journal: Biomaterials science (2020): 6056--6068
Authors: Allen, Riley and Ivtchenko, Emilie and Thuamsang, Bhasirie and Sangsuwan, Rapeepat and Lewis, Jamal S
Journal: Biomaterials science (2020): 6056--6068
Near-infrared laser-triggered, self-immolative smart polymersomes for in vivo cancer therapy
Authors: Tang, Qing and Hu, Ping and Peng, Haibo and Zhang, Ning and Zheng, Qiang and He, Yun
Journal: International Journal of Nanomedicine (2020): 137
Authors: Tang, Qing and Hu, Ping and Peng, Haibo and Zhang, Ning and Zheng, Qiang and He, Yun
Journal: International Journal of Nanomedicine (2020): 137
3D super-resolved imaging in live cells using sub-diffractive plasmonic localization of hybrid nanopillar arrays
Authors: Kim, Soojung and Song, Hyerin and Ahn, Heesang and Jun, Seung Won and Kim, Seungchul and Song, Young Min and Yang, Seung Yun and Kim, Chang-Seok and Kim, Kyujung
Journal: Nanophotonics (2020)
Authors: Kim, Soojung and Song, Hyerin and Ahn, Heesang and Jun, Seung Won and Kim, Seungchul and Song, Young Min and Yang, Seung Yun and Kim, Chang-Seok and Kim, Kyujung
Journal: Nanophotonics (2020)
The Influence of Cell Source and Donor Age on the Tenogenic Potential and Chemokine Secretion of Human Mesenchymal Stromal Cells
Authors: Zarychta-Wisniewska, Weronika and Burdzińska, Anna and Zielniok, Katarzyna and Koblowska, Marta and Gala, Kamila and Pedzisz, Piotr and Iwanicka-Nowicka, Roksana and Fogtman, Anna and Aksamit, Aleks and ra , undefined and Kulesza, Agnieszka and others, undefined
Journal: Stem Cells International (2019)
Authors: Zarychta-Wisniewska, Weronika and Burdzińska, Anna and Zielniok, Katarzyna and Koblowska, Marta and Gala, Kamila and Pedzisz, Piotr and Iwanicka-Nowicka, Roksana and Fogtman, Anna and Aksamit, Aleks and ra , undefined and Kulesza, Agnieszka and others, undefined
Journal: Stem Cells International (2019)
Exosomes from macrophages exposed to apoptotic breast cancer cells promote breast cancer proliferation and metastasis
Authors: Yu, Xiuyan and Zhang, Qun and Zhang, Xuehui and Han, Qing and Li, Hui and Mao, Yiqing and Wang, Xi and Guo, Hongyan and Irwin, David M and Niu, Gang and others,
Journal: Journal of Cancer (2019): 2892
Authors: Yu, Xiuyan and Zhang, Qun and Zhang, Xuehui and Han, Qing and Li, Hui and Mao, Yiqing and Wang, Xi and Guo, Hongyan and Irwin, David M and Niu, Gang and others,
Journal: Journal of Cancer (2019): 2892
References
View all 92 references: Citation Explorer
Use of lipophilic near-infrared dye in whole-body optical imaging of hematopoietic cell homing
Authors: Kalchenko V, Shivtiel S, Malina V, Lapid K, Haramati S, Lapidot T, Brill A, Harmelin A.
Journal: J Biomed Opt (2006): 50507
Authors: Kalchenko V, Shivtiel S, Malina V, Lapid K, Haramati S, Lapidot T, Brill A, Harmelin A.
Journal: J Biomed Opt (2006): 50507
Nox2, Ca2+, and protein kinase C play a role in angiotensin II-induced free radical production in nucleus tractus solitarius
Authors: Wang G, Anrather J, Glass MJ, Tarsitano MJ, Zhou P, Frys KA, Pickel VM, Iadecola C.
Journal: Hypertension (2006): 482
Authors: Wang G, Anrather J, Glass MJ, Tarsitano MJ, Zhou P, Frys KA, Pickel VM, Iadecola C.
Journal: Hypertension (2006): 482
Functional neuroanatomy of the rhinophore of Aplysia punctata
Authors: Wertz A, Rossler W, Obermayer M, Bickmeyer U.
Journal: Front Zool (2006): 6
Authors: Wertz A, Rossler W, Obermayer M, Bickmeyer U.
Journal: Front Zool (2006): 6
In vivo imaging and counting of rat retinal ganglion cells using a scanning laser ophthalmoscope
Authors: Higashide T, Kawaguchi I, Ohkubo S, Takeda H, Sugiyama K.
Journal: Invest Ophthalmol Vis Sci (2006): 2943
Authors: Higashide T, Kawaguchi I, Ohkubo S, Takeda H, Sugiyama K.
Journal: Invest Ophthalmol Vis Sci (2006): 2943
Confocal laser scanning microscopy using dialkylcarbocyanine dyes for cell tracing in hard and soft biomaterials
Authors: Heinrich L, Freyria AM, Melin M, Tourneur Y, Maksoud R, Bernengo JC, Hartmann DJ.
Journal: J Biomed Mater Res B Appl Biomater. (2006)
Authors: Heinrich L, Freyria AM, Melin M, Tourneur Y, Maksoud R, Bernengo JC, Hartmann DJ.
Journal: J Biomed Mater Res B Appl Biomater. (2006)
Regional cardiac ganglia projections in the guinea pig heart studied by postmortem DiI tracing
Authors: Harrison TA, Perry KM, Hoover DB.
Journal: Anat Rec A Discov Mol Cell Evol Biol (2005): 758
Authors: Harrison TA, Perry KM, Hoover DB.
Journal: Anat Rec A Discov Mol Cell Evol Biol (2005): 758
Afferent and efferent connections of the cerebellum of the chondrostean Acipenser baeri: a carbocyanine dye (DiI) tracing study
Authors: Huesa G, Anadon R, Yanez J.
Journal: J Comp Neurol (2003): 327
Authors: Huesa G, Anadon R, Yanez J.
Journal: J Comp Neurol (2003): 327
A novel morphological technique to investigate a single climbing fibre synaptogenesis with a Purkinje cell in the developing mouse cerebellum: DiI injection into the inferior cerebellar peduncle
Authors: Kiyohara Y, Endo K, Ide C, Mizoguchi A.
Journal: J Electron Microsc (Tokyo) (2003): 327
Authors: Kiyohara Y, Endo K, Ide C, Mizoguchi A.
Journal: J Electron Microsc (Tokyo) (2003): 327
Retinal ganglion cells resistant to advanced glaucoma: a postmortem study of human retinas with the carbocyanine dye DiI
Authors: Pavlidis M, Stupp T, Naskar R, Cengiz C, Thanos S.
Journal: Invest Ophthalmol Vis Sci (2003): 5196
Authors: Pavlidis M, Stupp T, Naskar R, Cengiz C, Thanos S.
Journal: Invest Ophthalmol Vis Sci (2003): 5196
Projection pattern of nerve fibers from the septal organ: DiI-tracing studies with transgenic OMP mice
Authors: Levai O, Strotmann J.
Journal: Histochem Cell Biol (2003): 483
Authors: Levai O, Strotmann J.
Journal: Histochem Cell Biol (2003): 483
