PE Anti-human CD4 Antibody *SK3*

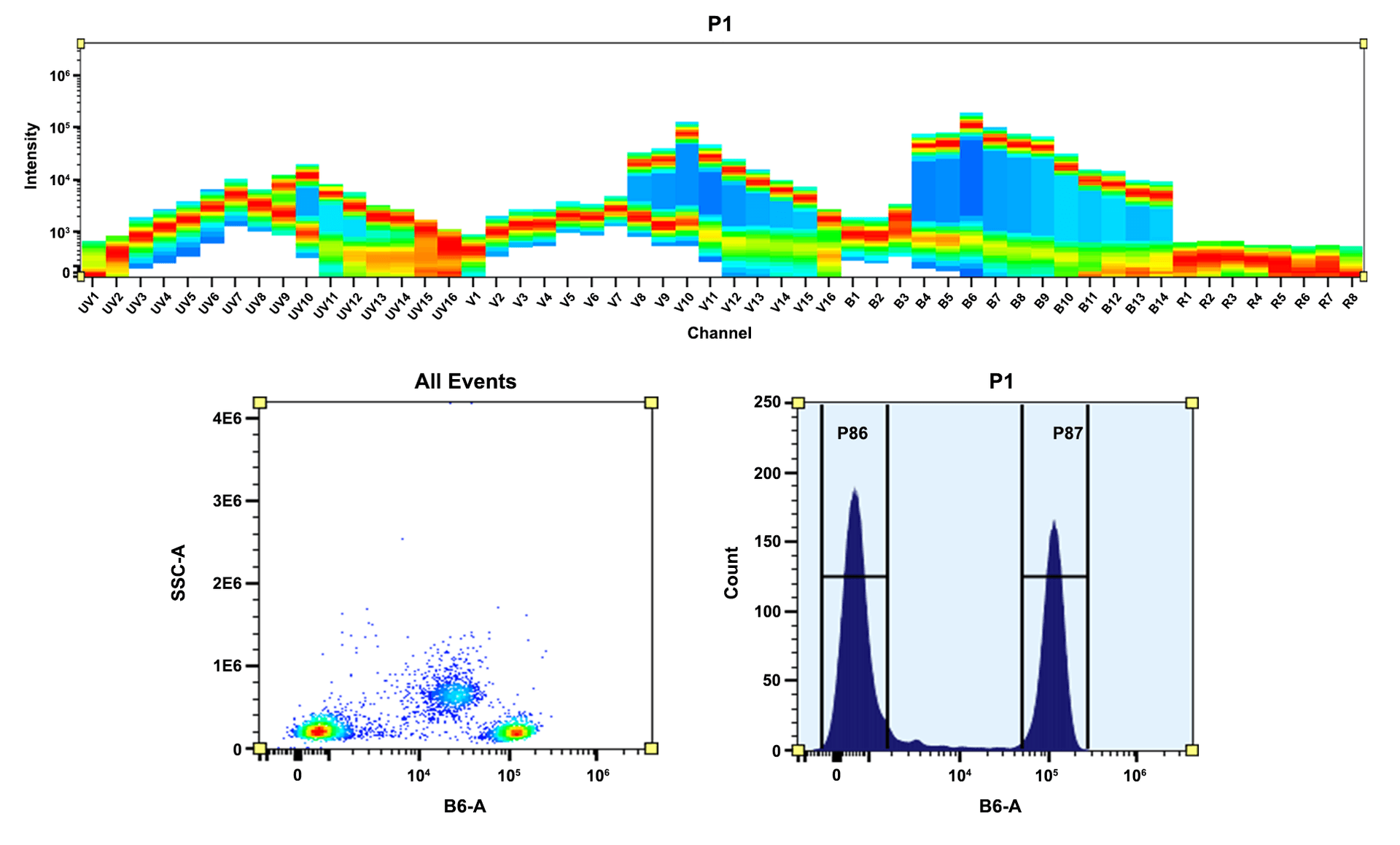

Top) Spectral pattern was generated using a 4-laser spectral cytometer. Spatially offset lasers (355 nm, 405 nm, 488 nm, and 640 nm) were used to create four distinct emission profiles, then, when combined, yielded the overall spectral signature. Bottom) Flow cytometry analysis of PBMC stained with PE anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora spectral flow cytometer in the PE specific B6-A channel.
Top) Spectral pattern was generated using a 4-laser spectral cytometer. Spatially offset lasers (355 nm, 405 nm, 488 nm, and 640 nm) were used to create four distinct emission profiles, then, when combined, yielded the overall spectral signature. Bottom) Flow cytometry analysis of PBMC stained with PE anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora spectral flow cytometer in the PE specific B6-A channel.
Top) Spectral pattern was generated using a 4-laser spectral cytometer. Spatially offset lasers (355 nm, 405 nm, 488 nm, and 640 nm) were used to create four distinct emission profiles, then, when combined, yielded the overall spectral signature. Bottom) Flow cytometry analysis of PBMC stained with PE anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora spectral flow cytometer in the PE specific B6-A channel.
Flow cytometry analysis of whole blood stained with PE anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora spectral flow cytometer in the PE specific B4-A channel.
Detection of CD4 expression on human peripheral blood lymphocytes stained by flow cytometry. Human PBMCs were stained with PE anti-human CD4 monoclonal antibody *SK3* (Cat No. 100421L1). The fluorescence signal was monitored using an ACEA NovoCyte flow cytometer in the PE channel.
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Spectral properties
Correction Factor (280 nm)0.175
Extinction coefficient (cm -1 M -1)1960000
Excitation (nm)565
Emission (nm)574
Quantum yield0.82
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22

OverviewpdfSDSpdfProtocol


Other names
Leu-3; T4
Clone
SK3
Host
mouse
Isotype
Mouse IgG1, κ
Reactivity
human
Application
Correction Factor (280 nm)
0.175
Extinction coefficient (cm -1 M -1)
1960000
Excitation (nm)
565
Emission (nm)
574
Quantum yield
0.82
SK3 is an anti-human monoclonal antibody that recognizes the CD4 antigen. CD4 (alternatively called T4 or Leu3a) is a 55 kD member of the Ig superfamily that is located on the surface of cells such as macrophages, T cells and granulocytes. CD4 has been associated with important biological processes such as membrane organization, specifically fusion of virus membrane with host plasma membrane. Furthermore, it is involved with vital cellular pathways, for example, the T cell receptor signaling pathway, enzyme linked receptor protein signaling pathway and cytokine-mediated signaling pathway. In some organisms, CD4 acts to positively regulate peptidyl-tyrosine phosphorylation, is an enhancer of transcription, DNA-templated and is a positive regulator of ERK1 and ERK2 cascade. From a research standpoint, it is of biological interest due to its association with essential macromolecules/ligands such as MHC Class II, gp120, IL-16 and Lck. CD4 is a very popular antibody target, with over 180000 publications in the last decade. CD4 is commonly used in flow cytometry applications as a phenotypic marker for differentiation of cell types, especially in the study of immunology. This antibody was purified through affinity chromatography and conjugated to PE (ex/em = 566/574 nm). It is compatible with the 561 nm laser and 586/15 nm bandpass filter (for example, as in the BD FACSCelesta™).

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Correction Factor (280 nm)0.175
Extinction coefficient (cm -1 M -1)1960000
Excitation (nm)565
Emission (nm)574
Quantum yield0.82

Antibody Finder


Select Your CD Antibody
Select Your Clone
Select Your Conjugate

Conjugation


We provide custom conjugation services for this antibody (eg. labeling of cd4 antibody with HRP). A list of available labels can be found in the table below:

AFAF350, AF488, AF555, AF594, AF647, AF680, AF700, AF750
ProteinsHRP, Alkaline Phosphatase, Streptavidin
TandemsAPC, APC/Cy7, APC/AF750, APC/iFluor™ 700, APC/iFluor™ 750, PE, PE/Cy5, PE/Cy7, PE/AF610, PE/AF700, PE/iFluor™ 594, PE/iFluor™ 647, PE/iFluor™ 700, PE/iFluor™ 750, PE/Texas Red®, PerCP, PerCP/Cy5.5
Small MoleculesBiotin
Traditional DyesFITC (fluorescein), TRITC, PacBlue, PacOrange, Cy3, Cy5
iFluor350, 405, 430, 450, 488, 514, 532, 546, 555, 560, 568, 594, 610, 633, 647, 660, 670, 680, 700, 710, 750, 790, 800, 810, 820, 840, 860, A7
mFluorUV375, UV460, Violet 450, Violet 500, Violet 510, Violet 540, Blue 570, Green 620, Red 700, Red 780

For additional information about custom conjugations, please consult our services page here.
