XFD546 tyramide reagent *Same Structure to Alexa Fluor™ 546 tyramide*

Ordering information
Price ()
Catalog Number11075
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight1282.88
SolventDMSO
Spectral properties
Correction Factor (260 nm)0.21
Correction Factor (280 nm)0.12
Extinction coefficient (cm -1 M -1)112000
Excitation (nm)561
Emission (nm)572
Quantum yield0.791
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12171501
Related products
XFD488 azide *Same Structure to Alexa Fluor™ 488 azide*
XFD488 alkyne *Same Structure to Alexa Fluor™ 488 alkyne*
XFD488 NHS Ester *Same Structure to Alexa Fluor™ 488 NHS Ester*
XFD488 C5 Maleimide *Same Structure to Alexa Fluor™ 488 C5 Maleimide*
XFD350 NHS Ester *Same Structure to Alexa Fluor™ 350 NHS Ester*
XFD532 NHS Ester *Same Structure to Alexa Fluor™ 532 NHS Ester*
XFD594 NHS Ester *Same Structure to Alexa Fluor™ 594 NHS Ester*
XFD350 C5 Maleimide *Same Structure to Alexa Fluor™ 350 C5 Maleimide*
XFD532 C5 Maleimide *Same Structure to Alexa Fluor™ 532 C5 Maleimide*
XFD594 C5 Maleimide *Same Structure to Alexa Fluor™ 594 C5 Maleimide*
XFD488 Hydroxylamine *Same Structure to Alexa Fluor™ 488 Hydroxylamine*
XFD350 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD594 Same Structure to Alexa Fluor™ 594*
XFD350 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD594 Same Structure to Alexa Fluor™ 594*
XFD488 amine *Same Structure to Alexa Fluor™ 488 amine*
XFD594 amine *Same Structure to Alexa Fluor™ 594 amine*
XFD350-streptavidin conjugate *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488-streptavidin conjugate *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594-streptavidin conjugate *XFD594 Same Structure to Alexa Fluor™ 594*
XFD350 Phalloidin *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 Phalloidin *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 Phalloidin *XFD594 Same Structure to Alexa Fluor™ 594*
XFD532 acid *Same Structure to Alexa Fluor™ 532 acid*
XFD488 acid *Same Structure to Alexa Fluor™ 488 acid*
XFD488 NHS Ester-UltraPure Grade *XFD488 Same Structure to Alexa Fluor™ 488*
XFD555 NHS Ester *Same Structure to Alexa Fluor™ 555 NHS Ester*
XFD647 NHS Ester *Same Structure to Alexa Fluor™ 647 NHS Ester*
XFD680 NHS Ester *Same Structure to Alexa Fluor™ 680 NHS Ester*
XFD700 NHS Ester *Same Structure to Alexa Fluor™ 700 NHS Ester*
XFD750 NHS Ester *Same Structure to Alexa Fluor™ 750 NHS Ester*
XFD647 maleimide *C2, XFD647 Same Structure to Alexa Fluor™ 647*
XFD546 NHS Ester *Same Structure to Alexa Fluor™ 546 NHS Ester*
XFD568 NHS Ester *Same Structure to Alexa Fluor™ 568 NHS Ester*
XFD350 acid *Same Structure to Alexa Fluor™ 350 acid*
XFD546 acid *Same Structure to Alexa Fluor™ 546 acid*
XFD568 acid *Same Structure to Alexa Fluor™ 568 acid*
XFD488 tetrazine *Same Structure to Alexa Fluor™ 488 tetrazine*
XFD488 aldehyde *Same Structure to Alexa Fluor™ 488 aldehyde*
XFD™488-dUTP *1 mM in Tris Buffer (pH 7.5)*
XFD514 acid
XFD514 NHS Ester *Same Structure to Alexa Fluor™ 514 NHS Ester*
XFD514 tyramide
XFD532 tyramide
XFD647 Azide
XFD647 Alkyne
XFD488 TCO
Show More (49)

OverviewpdfSDSpdfProtocol


Molecular weight
1282.88
Correction Factor (260 nm)
0.21
Correction Factor (280 nm)
0.12
Extinction coefficient (cm -1 M -1)
112000
Excitation (nm)
561
Emission (nm)
572
Quantum yield
0.791
XFD546 is manufactured by AAT Bioquest, and it has the same chemical structure of Alexa Fluor® 546 (Alexa Fluor® is the trademark of ThermoFisher). For many immunohistochemical (IHC) applications, the traditional enzymatic amplification procedures are sufficient for achieving adequate antigen detection. However, several factors limit the sensitivity and utility of these procedures. Tyramide signal amplification (TSA) has proven to be a particularly versatile and powerful enzyme amplification technique with improved assay sensitivity. TSA is based on the ability of HRP, in the presence of low concentrations of hydrogen peroxide, to convert labeled tyramine-containing substrate into an oxidized, highly reactive free radical that can covalently bind to tyrosine residues at or near the HRP. To achieve maximal IHC detection, tyramine is prelabeled with a fluorophore. The signal amplification conferred by the turnover of multiple tyramide substrates per peroxidase label translates ultrasensitive detection of low-abundance targets and the use of smaller amounts of antibodies and hybridization probes. In immunohistochemical applications, sensitivity enhancements derived from TSA method allow primary antibody dilutions to be increased to reduce nonspecific background signals, and can overcome weak immunolabeling caused by suboptimal fixation procedures or low levels of target expression. XFD546 tyramide contains the bright XFD546 dye that can be readily detected with the standard TRITC filter set.

Platform


Fluorescence microscope

ExcitationCy3/TRITC filter set
EmissionCy3/TRITC filter set
Recommended plateBlack wall/clear bottom
Instrument specification(s)Cy3/TRITC filter set

Example protocol


AT A GLANCE

Protocol Summary
  1. Fix/permeabilize/block cells or tissue
  2. Add primary antibody in blocking buffer
  3. Add HRP-conjugated secondary antibody
  4. Prepare tyramide working solution and apply in cells or tissue for 5-10 minutes at room temperature

PREPARATION OF STOCK SOLUTIONS

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

1. XFD 546 tyramide stock solution (200X)
Add 100 µL of DMSO into the vial of XFD 546 tyramide conjugate to make 200X tyramide stock solution. Note: Make single use aliquots, and store unused 200X stock solution at 2-8 °C in dark place.

2. H2O2 stock solution
Add 10 µL of 3% hydrogen peroxide (Not provided) to 90 µL of ddH2O. Note: Prepare the 100X H2O2 solution fresh on the day of use.

PREPARATION OF WORKING SOLUTION

1. XFD 546 tyramide working solution (1X)
Every 2 mL of Reaction Buffer requires 10 µL of tyramide stock solution and 10 µL of H2O2 stock solution. Note: The tyramide provided is enough for 200 tests based on 100 µL of tyramide working solution needed per coverslip or per well in a 96-well microplate. Note: The tyramide working solution must be used within 2 hours after preparation and avoid direct exposure to light. Note: Tris Buffer, pH=7.4 can be used. For optimal performance, use ReadiUse Tyramide (TSA)/Styramide (PSA) Optimized Reaction buffer (AAT Cat# 45090).

2. Secondary antibody-HRP working solution
Make appropriate concentration of secondary antibody-HRP working solution as per the manufacturer's recommendations.

SAMPLE EXPERIMENTAL PROTOCOL

This protocol is applicable for both cells and tissues staining.

Cell fixation and permeabilization
  1. Fix the cells or tissue with 3.7% formaldehyde or paraformaldehyde, in PBS at room temperature for 20 minutes.
  2. Rinse the cells or tissue with PBS twice.
  3. Permeabilize the cells with 0.1% Triton X-100 solution for 1-5 minutes at room temperature.
  4. Rinse the cells or tissue with PBS twice.

Tissue fixation, deparaffinization and rehydration
Deparaffinize and dehydrate the tissue according to the standard IHC protocols. Perform antigen retrieval with preferred specific solution/protocol as needed.
Protocol can be found at
https://www.aatbio.com/resources/guides/paraffin-embedded-tissue-immunohistochemistry-protocol.html

Peroxidase labeling
  1. Optional: Quench endogenous peroxidase activity by incubating cell or tissue sample in peroxidase quenching solution (such as 3% hydrogen peroxide) for 10 minutes. Rinse with PBS twice at room temperature.
  2. Optional: If using HRP-conjugated streptavidin, it is advisable to block endogenous biotins by biotin blocking buffer.
  3. Block with preferred blocking solution (such as PBS with 1% BSA) for 30 minutes at 4 °C.
  4. Remove blocking solution and add primary antibody diluted in recommended antibody diluent for 60 minutes at room temperature or overnight at 4 °C.
  5. Wash with PBS three times for 5 minutes each.
  6. Apply 100 µL of secondary antibody-HRP working solution to each sample and incubate for 60 minutes at room temperature. Note: Incubation time and concentration can be varied depending on the signal intensity.
  7. Wash with PBS three times for 5 minutes each.

Tyramide labeling
  1. Prepare and apply 100 µL of tyramide working solution to each sample and incubate for 5-10 minutes at room temperature. Note: If you observe non-specific signal, you can shorten the incubation time with tyramide. You should optimize the incubation period using positive and negative control samples at various incubation time points. Or you can use lower concentration of tyramide in the working solution.
  2. Rinse with PBS three times.

Counterstain and fluorescence imaging
  1. Counterstain the cell or tissue samples as needed. AAT provides a series of nucleus counterstain reagents as listed in Table 1. Follow the instruction provided with the reagents.
  2. Mount the coverslip using a mounting medium with anti-fading properties.
  3. Use the appropriate filter set to visualize the signal from the tyramide labeling.
Table 1.Products recommended for nucleus counterstain.
Cat# Product Name Ex/Em (nm)
17548 Nuclear Blue™ DCS1 350/461
17550 Nuclear Green™ DCS1 503/526
17551 Nuclear Orange™ DCS1 528/576
17552 Nuclear Red™ DCS1 642/660

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of XFD546 tyramide reagent *Same Structure to Alexa Fluor™ 546 tyramide* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM77.95 µL389.748 µL779.496 µL3.897 mL7.795 mL
5 mM15.59 µL77.95 µL155.899 µL779.496 µL1.559 mL
10 mM7.795 µL38.975 µL77.95 µL389.748 µL779.496 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

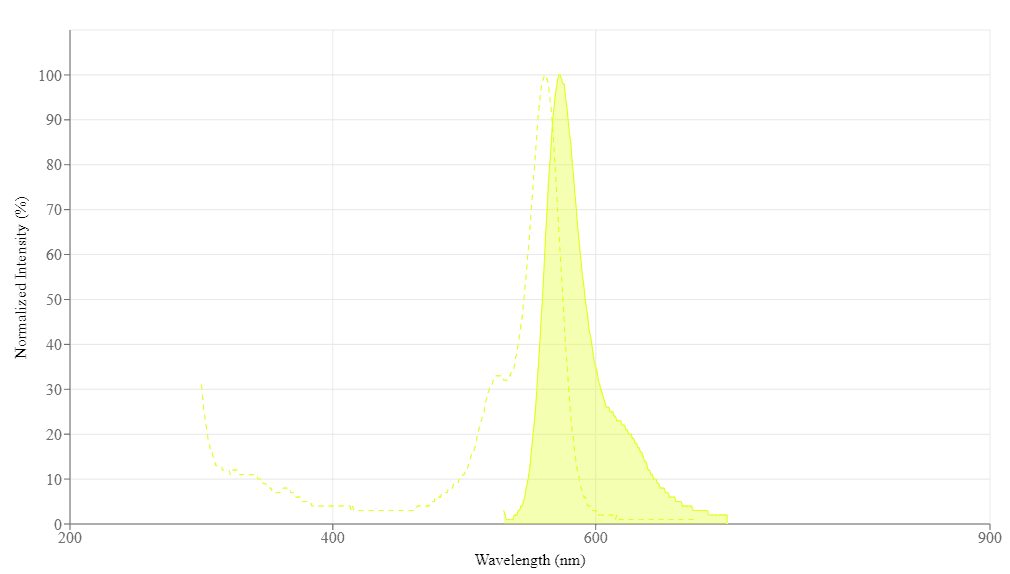

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Correction Factor (260 nm)0.21
Correction Factor (280 nm)0.12
Extinction coefficient (cm -1 M -1)112000
Excitation (nm)561
Emission (nm)572
Quantum yield0.791

Product family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Quantum yieldCorrection Factor (260 nm)Correction Factor (280 nm)
XFD488 tyramide reagent *Same Structure to Alexa Fluor™ 488 tyramide*499520730000.9210.30.11
XFD594 tyramide reagent *Same Structure to Alexa Fluor™ 594 tyramide*590618920000.6610.430.56
XFD350 tyramide reagent *Same Structure to Alexa Fluor™ 350 tyramide*34344119000-0.250.19
XFD568 tyramide reagent *Same Structure to Alexa Fluor™ 568 tyramide*579603880000.6910.450.46
