Amplite® Fluorimetric Biotin Quantitation Kit

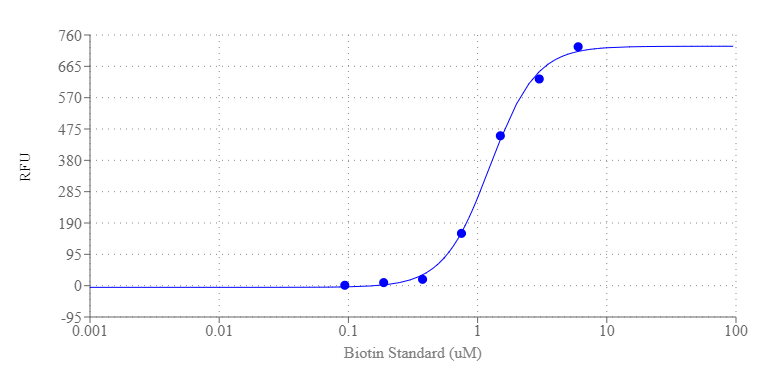

The Biotin Standard Curve was determined using a black bottom 96-well plate and the Amplite® Fluorimetric Biotin Quantitation Kit, with measurements taken on a fluorescence microplate reader at an Ex/Em = 490/530 nm and Cutoff = 515 nm.
The Biotin Standard Curve was determined using a black bottom 96-well plate and the Amplite® Fluorimetric Biotin Quantitation Kit, with measurements taken on a fluorescence microplate reader at an Ex/Em = 490/530 nm and Cutoff = 515 nm.
The Biotin Standard Curve was determined using a black bottom 96-well plate and the Amplite® Fluorimetric Biotin Quantitation Kit, with measurements taken on a fluorescence microplate reader at an Ex/Em = 490/530 nm and Cutoff = 515 nm.
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
Related products
Biotin *CAS 58-85-5*
Biotin, succinimidyl ester *CAS 35013-72-0*
Biotin ethylenediamine *CAS 1217450-40-2*
Biotin cadaverine
Biotin C2 maleimide
Biotin-4-fluorescein *CAS 1032732-74-3*
Biotin hydrazide *CAS 66640-86-6*
Biotin-X NTA [Biotin-X nitrilotriacetic acid, potassium salt] *CAS 856661-92-2*
Biotin-X, succinimidyl ester *CAS 72040-63-2*
Biotin PEG2 amine *CAS 138529-46-1*
Biotin PEG2 maleimide *CAS 305372-39-8*
Biotin PEG2 succinimidyl ester
Biotin-PEG3-azide *CAS 875770-34-6*
Biotin Azide
Biotin Alkyne *CAS 773888-45-2*
Biotin PEG4 succinimidyl ester
ReadiView™ biotin acid
ReadiView™ biotin amine
ReadiView™ biotin hydrazide
ReadiView™ biotin maleimide
ReadiView™ biotin succinimidyl ester
ReadiLink™ Protein Biotinylation Kit *Powered by ReadiView™ Biotin Visionization Technology*
Biotin-11-dUTP *1 mM in TE Buffer (pH 7.5)* *CAS 86303-25-5*
Biotin-16-dUTP *1 mM in TE Buffer (pH 7.5)* *CAS 136632-31-0*
Biotin-20-dUTP *1 mM in TE Buffer (pH 7.5)*
Cal-520®-Biotin Conjugate
Phalloidin-Biotin Conjugate
FMOC-Lys(Biotin)-OH
Biotin-14-dCTP *1 mM in Tris Buffer (pH 7.5)*
Biotin PEG3 amine
Annexin V-Biotin conjugate
N6-Methyladenosine-Biotin conjugate
Biotin Styramide *Superior Replacement for Biotin Tyramide*
Cy5 biotin conjugate
Biotin-cAMP conjugate
2',3'-cGAMP-Biotin conjugate
Cy5.5 biotin conjugate
Biotin-PEG4-tyramide
HRP-Biotin Conjugate
Biotin-11-dATP *1 mM in Tris Buffer (pH 7.5)*
Biotin-11-dGTP *1 mM in Tris Buffer (pH 7.5)*
Biotin NTA
Biotin-X IDA
ReadiCleave™ SSL biotin NHS ester
Biotin-dT Phosphoramidite
ReadiLink™ Biotin Nick Translation dsDNA Labeling Kit
ReadiLink™ Biotin Oligo and ssDNA Labeling Kit
AF532 PEG4 biotin conjugate
Biotin PEG 4 Alkyne
Cy3 biotin conjugate
Cy7 biotin conjugate
Biotin C2 Azide
mFluor™ UV 375 Biotin Conjugate
mFluor™ UV 460 Biotin Conjugate
mFluor™ Violet 500 Biotin Conjugate
mFluor™ Violet 540 Biotin Conjugate
mFluor™ Red 780 Biotin Conjugate
Biotin Phosphoramidite
Bio-16-UTP [Biotin-16-UTP] *1 mM*
Biotin PEG4 amine
mFluor™ Violet 450-PEG4-Biotin Conjugate
Acridinium Biotin Conjugate
FastClick™ Biotin Azide
FastClick™ Biotin Alkyne
ReadiLeave™ Reversible Biotin Succinimidyl Ester
ReadiLeave™ Reversible Biotin Maleimide
ReadiLeave™ Reversible Biotin Azide
ReadiLeave™ Reversible Biotin Alkyne
ReadiLeave™ Reversible Biotin Amine
Xylazine-Biotin Conjugate
Amplite® Rapid Colorimetric Biotin Quantitation Kit *Optimized to Use with Nanodrop*
Portelite™ Rapid Fluorimetric Biotin Quantitation Kit *Optimized to Use with CytoCite™ and Qubit™ Fluorometers*
Biotin-PEG2-azide *CAS 945633-30-7*
Show More (63)

OverviewpdfSDSpdfProtocol


Amplite® Fluorimetric Biotin Quantitation Kit uses Biotinylite™ Green, a fluorogenic biotin sensor. Biotinylite™ Green is almost non-fluorescent and give strong green fluorescence upon interaction with a biotin or biotin conjugate. The concentration of biotin is proportional to the fluorescence intensity of Biotinylite™ Green. The amount of biotin is determined by comparing a sample’s fluorescence to the predetermined biotin standard curve. This fluorescence-based assay is much more sensitive than the commonly used colorimetric HABA assay. Biotin is a relatively small molecule that is routinely conjugated to antibodies and proteins with minimal interference of their biological activity. The avidin/streptavidin-biotin interaction is the strongest known binding pair between a protein and its ligand. The biotin-avidin interaction has been extensively explored for a variety of biological applications.

Platform


Fluorescence microplate reader

Excitation490 nm
Emission530 nm
Cutoff515 nm
Recommended plateSolid black

Components


Example protocol


PREPARATION OF STANDARD SOLUTIONS

For convenience, use the Serial Dilution Planner:
https://www.aatbio.com/tools/serial-dilution/5538

Biotin Standard
To prepare a 6 µM Biotin Standard (STD7), add 10 µL of 300 µM Biotin Standard stock solution to 490 µL of Assay Buffer (Component C). Then, create 1:2 serial dilutions by taking 200 µL of this Biotin Standard solution and diluting it with equal volumes of Assay Buffer (Component C) to obtain serially diluted standards (STD7-STD1).

PREPARATION OF WORKING SOLUTION

Biotinylite™ Green Working Solution
  1. To prepare the Biotinylite™ Green working solution, add 100 μL of Biotinylite™ Green (10X) (Component A) to 900 μL of Assay Buffer (Component C) and mix thoroughly.

SAMPLE EXPERIMENTAL PROTOCOL

Table 1. Layout of biotin standards and test samples in a solid black 96-well microplate.

STD = Biotin Standard (STD1-STD7, 0.094 ~ 6 µM), BL = Blank Control, TS = Test Samples

STD7
STD7
TS1
TS1
STD6
STD6
TS2
TS2
STD5
STD5
...
...
STD4
STD4
...
...
STD3
STD3
...
...
STD2
STD2
...
...
STD1
STD1
...
...
BL
BL
...
...

 Table 2. Reagent composition for each well.

Well
Volume
Reagents
STD7~STD1
50 µL
Biotin Serial Dilution (0.094 - 6 µM)
BL
50 µL
Assay Buffer Control
TS
50 µL
Test Sample
  1. Prepare the Biotin standard (STD1~STD7), blank controls (BL), and test samples (TS) as outlined in Tables 1 and 2, using 25 µL of reagent per well for a 384-well plate instead of 50 µL.

  2. Add 50 µL of Biotinylite™ Green working solution to each well containing Biotin standards (STD1~STD7), blank controls (BL), and test samples (TS), ensuring the total volume in each well reaches 100 µL. For a 384-well plate, use 25 µL of the working solution per well.

  3. Incubate the reaction at room temperature for 10 to 30 minutes, protected from light.

  4. Monitor the fluorescence increase at Ex/Em = 490/530 nm (Cutoff = 515 nm) with a fluorescence microplate reader.
