6-ROXtra™ SE Superior 6-ROX Replacement

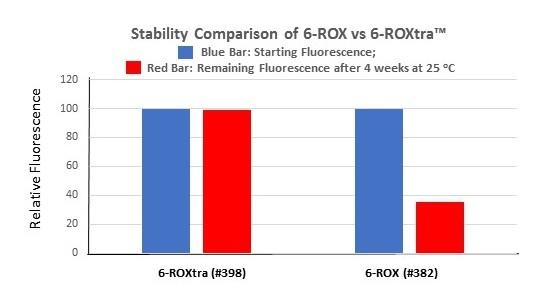

Stability comparison of 6-ROX versus 6-ROXtra™. Blue bar represents starting fluorescence. Red bar represents remaining fluorescence after 4 weeks at 25 °C

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
Quotation	Request
International	See distributors
Shipping	Standard overnight for United States, inquire for international

Physical properties

Molecular weight	1030.23
Solvent	DMSO

Spectral properties

Excitation (nm)	578
Emission (nm)	595

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12171501

Overview SDS Protocol

Molecular weight

1030.23

Excitation (nm)

578

Emission (nm)

595

Although ROX dyes have strong fluorescence they are notoriously unstable. Some commercial samples only have a few months' shelf life. Compared to 6-ROX labeling compounds our 6-ROXtra™ dyes have greatly enhanced stability while they have essentially identical spectral properties to those of 6-ROX when conjugated to a biological substrate (such as oligonucleotides). In addition, our 6-ROXtra™ dyes are much more water-soluble than 6-ROX dyes that are essentially insoluble in water and aqueous buffers. Our preliminary studies indicated that 6-ROXtra-derived oligos are more easily purified than the corresponding 6-ROX oligos in most cases. When conjugated to proteins, the fluorescence of 6-ROX is severely quenched while 6-ROXtra™ still shows strong fluorescence.

Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of 6-ROXtra™ SE *Superior 6-ROX Replacement* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

	0.1 mg	0.5 mg	1 mg	5 mg	10 mg
1 mM	97.066 µL	485.329 µL	970.657 µL	4.853 mL	9.707 mL
5 mM	19.413 µL	97.066 µL	194.131 µL	970.657 µL	1.941 mL
10 mM	9.707 µL	48.533 µL	97.066 µL	485.329 µL	970.657 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)		Molecular weight		Volume (Calculate)		Concentration (Calculate)		Moles
	/		=		x		=

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Excitation (nm)	578
Emission (nm)	595

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)	Correction Factor (280 nm)
6-ROXtra™ acid	578	595	-	-
6-FAM, SE [6-Carboxyfluorescein, succinimidyl ester] CAS 92557-81-8	493	517	83000	0.178
6-HEX, SE [6-Carboxy-2',4,4',5',7,7'-hexachlorofluorescein, succinimidyl ester] Single Isomer	533	559	73000	0.15
6-JOE, SE [6-Carboxy-4',5'-dichloro-2',7'-dimethoxyfluorescein, succinimidyl ester] CAS#: 113394-23-3	520	545	75000¹	-
6-TET, SE [6-Carboxy-2',4,7',7-tetrachlorofluorescein, succinimidyl ester]	521	542	73000	0.13
6-CR6G, SE [6-Carboxyrhodamine 6G, succinimidyl ester] Single isomer	522	546	94000	0.214
6-TAMRA, SE [6-Carboxytetramethylrhodamine, succinimidyl ester] CAS#: 150810-69-8	552	578	90000	0.178
6-ROX, SE [6-Carboxy-X-rhodamine, succinimidyl ester] CAS#: 216699-36-4	578	604	82000	0.168
6-VIC, SE [6-VIC NHS ester]	526	543	-	-
6-NED, SE [6-NED NHS ester]	545	567	74000¹	-
Show More (1)

Images

Figure 1. Stability comparison of 6-ROX versus 6-ROXtra™. Blue bar represents starting fluorescence. Red bar represents remaining fluorescence after 4 weeks at 25 °C

References

View all 11 references: Citation Explorer

Four-color DNA sequencing by synthesis on a chip using photocleavable fluorescent nucleotides
Authors: Seo TS, Bai X, Kim DH, Meng Q, Shi S, Ruparel H, Li Z, Turro NJ, Ju J.
Journal: Proc Natl Acad Sci U S A (2005): 5926

Adsorption of oligonucleotides on PMMA/PNIPAM core-shell latexes: polarity of the PNIPAM shell probed by fluorescence
Authors: Prazeres TJ, Santos AM, Martinho JM, Elaissari A, Pichot C.
Journal: Langmuir (2004): 6834

Photocleavable fluorescent nucleotides for DNA sequencing on a chip constructed by site-specific coupling chemistry
Authors: Seo TS, Bai X, Ruparel H, Li Z, Turro NJ, Ju J.
Journal: Proc Natl Acad Sci U S A (2004): 5488

Evaluation of surface-enhanced resonance Raman scattering for quantitative DNA analysis
Authors: Faulds K, Smith WE, Graham D.
Journal: Anal Chem (2004): 412

Blue light-induced generation of reactive oxygen species in photoreceptor ellipsoids requires mitochondrial electron transport
Authors: Yang JH, Basinger SF, Gross RL, Wu SM.
Journal: Invest Ophthalmol Vis Sci (2003): 1312

HLA-DRB fluorotyping by dark quenching and automated analysis
Authors: Slateva K, Elsner HA, Albis-Camps M, Blasczyk R.
Journal: Tissue Antigens (2001): 250

Influence of fluorophor dye labels on the migration behavior of polymerase chain reaction--amplified short tandem repeats during denaturing capillary electrophoresis
Authors: Hahn M, Wilhelm J, Pingoud A.
Journal: Electrophoresis (2001): 2691

Design, synthesis, and spectroscopic properties of peptide-bridged fluorescence energy-transfer cassettes
Authors: Li Y, Glazer AN.
Journal: Bioconjug Chem (1999): 241

Differential display with carboxy-X-rhodamine-labeled primers and the selection of differentially amplified cDNA fragments without cloning
Authors: Yoshikawa Y, Mukai H, Asada K, Hino F, Kato I.
Journal: Anal Biochem (1998): 82

Comparison of fluorescence energy transfer primers with different donor-acceptor dye combinations
Authors: Hung SC, Mathies RA, Glazer AN.
Journal: Anal Biochem (1998): 32
