Helixyte™ Gold Nucleic Acid Gel Stain *10,000X DMSO Solution*

160 ng of 1 Kb Plus DNA Ladder  (ThermoFisher 10787018) in 0.9% agarose/TBE electrophoresis gel were stained with Helixyte™ Gold and SYBR® Gold and imaged with 254-nm UV transilluminator using UVP Bioimaging System.
160 ng of 1 Kb Plus DNA Ladder  (ThermoFisher 10787018) in 0.9% agarose/TBE electrophoresis gel were stained with Helixyte™ Gold and SYBR® Gold and imaged with 254-nm UV transilluminator using UVP Bioimaging System.
Ordering information
Price ()
Catalog Number17595
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight749.48
SolventDMSO
Spectral properties
Excitation (nm)496
Emission (nm)539
Storage, safety and handling
H-phraseH303, H313, H340
Hazard symbolT
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R68
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC41116134

OverviewpdfSDSpdfProtocol


Molecular weight
749.48
Excitation (nm)
496
Emission (nm)
539
Helixyte™ Gold is manufactured by AAT Bioquest, and it has the same chemical structure of SYBR® Gold (SYBR® is the trademark of ThermoFisher). Helixyte™ Gold is an excellent nucleic acid gel stain, and exhibits large fluorescence enhancement upon binding to nucleic acids. It has the same spectral properties to those of SYBR® Gold, thus a great replacement to SYBR® Gold (SYBR® Gold is the trademark of ThermoFisher). It is one of the most sensitive stains available for detecting DNA in agarose and polyacrylamide gels. Helixyte™ Gold has higher sensitivity for DNA than RNA, and is ideal for use with laser scanners with the same instrument settings of SYBR Gold. Helixyte™ Gold is much more sensitive than ethidium bromide for DNA in agarose gels, and it can detect as low as picogram dsDNA on gels.

Example protocol


AT A GLANCE

Spectral Properties of Helixyte™ Gold
Excitation/Emission: 495/540 nm
Important      Helixyte™ Gold nucleic acid gel stain is significantly less mutagenic than ethidium bromide. However, we must caution that no data are available on the mutagenicity or toxicity of Helixyte™ Gold stain in humans. It should be treated as a potential mutagen and used with appropriate care due to the fact that this reagent binds to nucleic acids. The disposing of the stain shall be in compliance with local regulations.
We have found the greatest sensitivity is achieved by post-staining which also eliminates the possibility of dye interference with DNA migration. While the precast protocol is more convenient, some DNA samples may experience migration, it is highly recommended the gel running time does not exceed more than 2 hours. The following protocols are recommended. However, some comparisons might be needed to determine which one better meets your needs.

PREPARATION OF WORKING SOLUTION

Helixyte™ Gold working solution (1X)
Make 1X Helixyte™ Gold working solution by diluting the 10,000X stock reagent into pH 7.5 - 8 buffer (e.g., TAE, TBE or TE, preferably pH 8.0).
Note     Staining solutions prepared in water are less stable than those prepared in buffer and must be used within 24 hours to ensure maximal staining sensitivity.
Note     In addition, staining solutions prepared in buffers with pH below 7.5 or above 8.0 are less stable and show reduced staining efficacy.

SAMPLE EXPERIMENTAL PROTOCOL

Post-Staining Protocol
  1. Run gels based on your standard protocol.
  2. Place the gel in a suitable polypropylene container. Gently add a sufficient amount of the 1X Helixyte™ Gold working solution to submerge the gel.
    Note     Do not use a glass container, as it will adsorb much of the dye in the staining solution.
  3. Agitate the gel gently at room temperature for ~30 minutes, protected from the light.
    Note     The staining solution can be stored in the dark (preferably refrigerated) for a week and reused up to 2 - 3 times.
  4. Image the stained gel with a 254 nm transilluminator or a laser-based gel scanner using a long path green filter, such as a SYBR® filter or GelStar® filter.

Pre-Casting Protocol
  1. Prepare agarose gel solution using your standard protocol.
  2. Add 1X Helixyte™ Gold working solution to the gel and mix thoroughly.
  3. Run gels based on your standard protocol.
  4. Image the stained gel with a 254 nm transilluminator or a laser-based gel scanner using a long path green filter, such as a SYBR® filter or GelStar® filter.

DNA-Staining Before Electrophoresis
  1. Incubate DNA with a 1:1000 to 1:3000 dilution of the dye (in TE, TBE, or TAE) for at least 15 minutes prior to electrophoresis.
  2. Run gels based on your standard protocol.
  3. Image the stained gel with a 254 nm transilluminator, or a laser-based gel scanner using a long path green filter such as a SYBR® filter or GelStar® filter.

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of Helixyte™ Gold Nucleic Acid Gel Stain *10,000X DMSO Solution* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM133.426 µL667.129 µL1.334 mL6.671 mL13.343 mL
5 mM26.685 µL133.426 µL266.852 µL1.334 mL2.669 mL
10 mM13.343 µL66.713 µL133.426 µL667.129 µL1.334 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

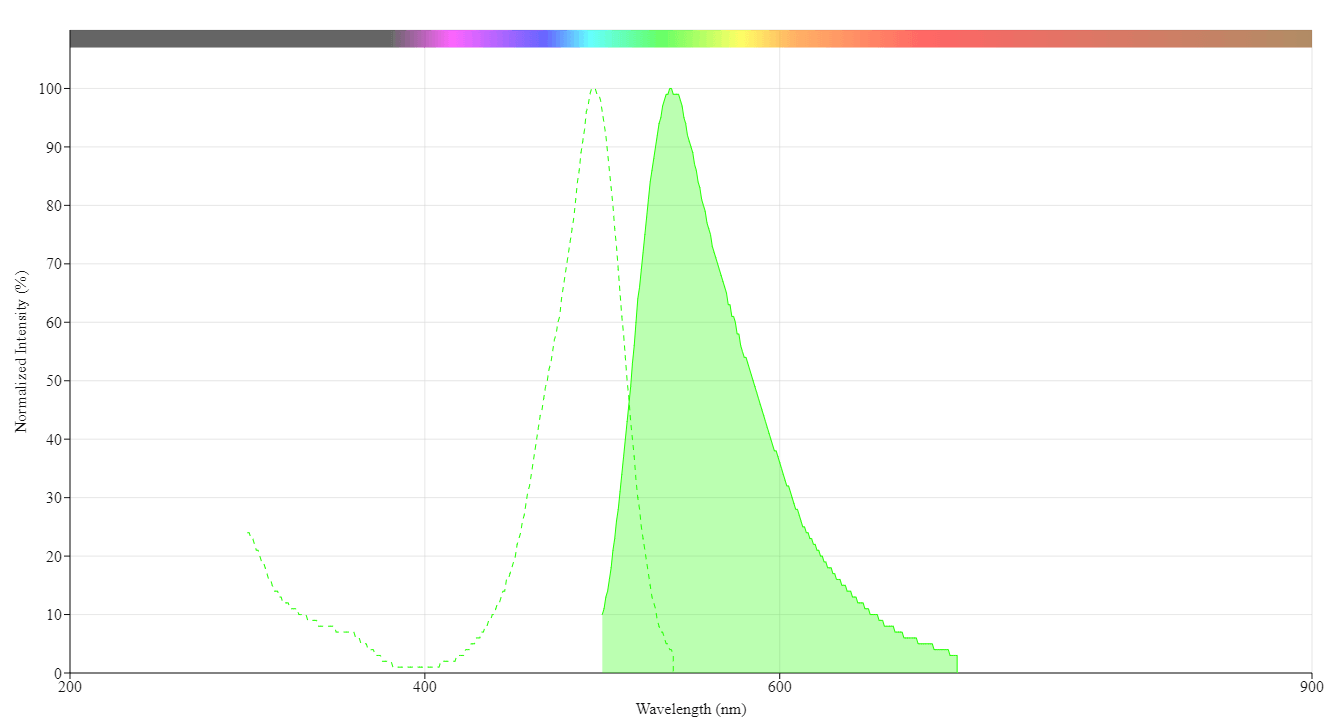

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Excitation (nm)496
Emission (nm)539

Product family


NameExcitation (nm)Emission (nm)
Helixyte™ Green Nucleic Acid Gel Stain *10,000X DMSO Solution*498522
