Protonex™ Red 780 acid

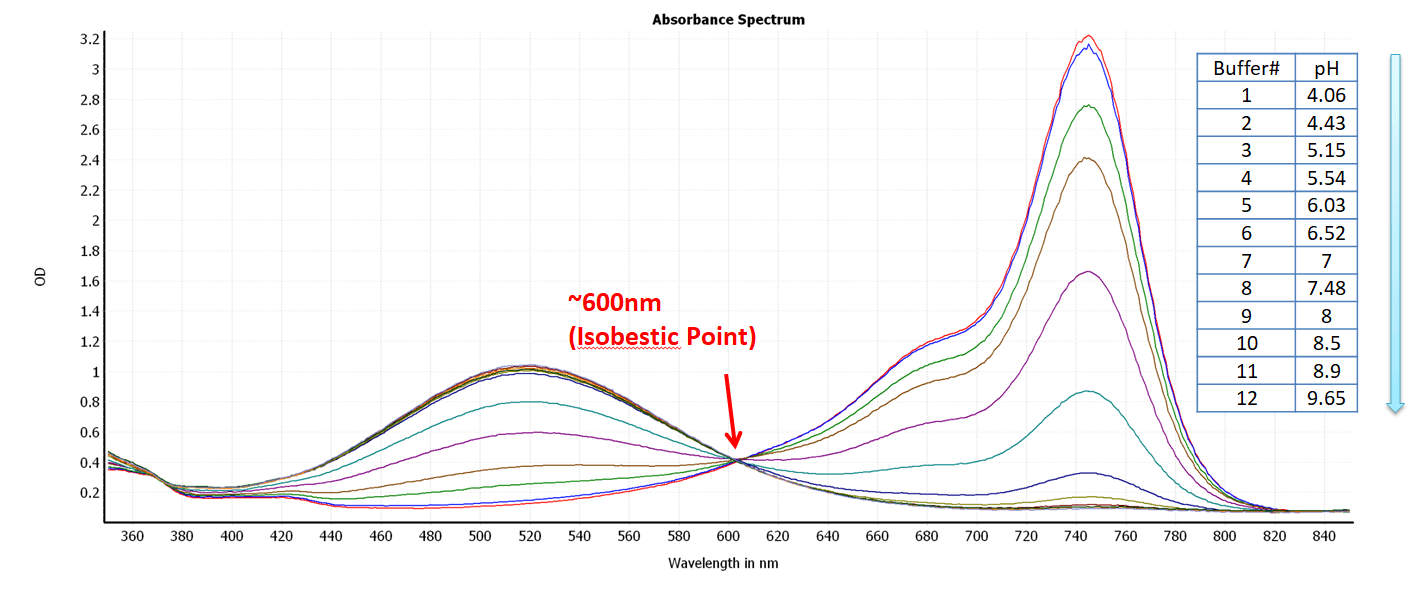

The pH-dependent absorbance spectra of Protonex™ Red 780.
The pH-dependent absorbance spectra of Protonex™ Red 780.
The pH-dependent absorbance spectra of Protonex™ Red 780.
The pH-dependent emission spectra of Protonex™ Red 780.
Ordering information
Catalog Number
Unit Size
Add to cart
Additional ordering information
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Molecular weight857.18
Spectral properties
Excitation (nm)748
Emission (nm)769
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure


Molecular weight
Excitation (nm)
Emission (nm)
Protonex™ Red 780 works by changing its fluorescence intensity depending on the pH of the environment. Protonex™ Red 780 is minimally fluorescent at a basic pH and maximally fluorescent at an acidic pH. When Protonex™ Red 780 is bound to a receptor or an antibody on the cell surface, it is essentially non-fluorescent because the extracellular pH is neutral. However, when the receptor or antibody is internalized into the cell in response to a stimulus, it enters the endosomal pathway, where the pH is acidic. This causes Protonex™ Red 780 to become highly fluorescent and emit near-infrared light when excited by a red laser. By measuring the fluorescence intensity of Protonex™ Red 780, one can monitor the activation and trafficking of receptors or antibodies in live cells. Protonex™ Red 780 is especially useful in studying the activation and trafficking of G protein-coupled receptors (GPCRs), one of the most popular therapeutic drug targets. Protonex™ Red 780 can be used to label any receptor or epitope tag antibody and monitor its movement from the cell surface into acidic endosomes upon agonist stimulation. Protonex™ Red 780 might also be used to measure high-potency agonist and antagonist responses of different GPCRs in live cells.


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of Protonex™ Red 780 acid to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM116.662 µL583.308 µL1.167 mL5.833 mL11.666 mL
5 mM23.332 µL116.662 µL233.323 µL1.167 mL2.333 mL
10 mM11.666 µL58.331 µL116.662 µL583.308 µL1.167 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles


Open in Advanced Spectrum Viewer

Spectral properties

Excitation (nm)748
Emission (nm)769

Product Family
