What's A Ratiometric Indicator

Ions play an intricate role in many physiologically processes. For example, intracellular calcium ions are essential in signal transduction pathways promoting the release of neurotransmitters from neurons, and involved in the mechanisms required for the contraction of all muscle cells. Cellular ionic concentrations are regulated by passive and active ion channels and pumps. Malfunctions in ionic channels and pumps can result in the improper regulation of ionic concentrations creating adverse conditions non-conducive for normal cell functionality.

To investigate cellular ion fluxes, ionic imaging techniques are used in conjunction with fluorescence ionic indicators. Fluorescence ion indicators fall under two categories: a single-wavelength indicator or a ratiometric indicator. For qualitative analysis, single-wavelength indicators are recommended. Their large dynamic range makes them sensitive at detecting modest and transient ionic changes. Unfortunately, drawbacks such as variable dye loading and extrusion, associated with the usage of single-wavelength indicators makes it difficult to accurately determine cellular ionic concentrations. For these reasons, ratiometric indicators are recommended for the quantitative measurements of ionic concentrations.

Ratiometric, or dual-wavelength, ion indicators are a subcategory of fluorescent dyes utilized for their ability to quantitatively measure intracellular ion concentrations. Compared to single-wavelength indicators, dual-wavelength indicators possess unique spectral properties which are triggered in response to binding its target ion. In the case of ratiometric calcium indicators, such dyes undergo a shift in either their optimum absorption or emission wavelength intensities when binding to free Ca2+. For example, dual-excitation Ca2+ indicators exhibit two peak excitation wavelengths when either bound or free of Ca2+. An increase in Ca2+ concentration initiates an increase and decrease in the fluorescence emission intensities of the dual-excitation indicator when excited at the Ca2+-bound and Ca2+-free peak excitation wavelengths, respectively. Using ratios derived from the photometric data gathered, researchers can accurately determine intracellular Ca2+ concentrations. Ratioing techniques are advantageous because it reduces effects indicative of uneven dye loading, poor dye retention and photobleaching. Since their introduction in 1985 by Tsien and collaborators, ratiometric indicators have been cited in countless scientific papers and have aided in advances in investigating the role of calcium in cellular regulation (Grynkiewicz et al. 1985).

Calcium IndicatorToolsCatalog #Excitation SourceAdvantageApplications
Single-WavelengthCalbryte-52020650, 20656Visible LightLarge dynamic range excellent for detecting modest and transient Ca2+ fluxesQualitative Data Analysis Fluorescence Microscopy Flow Cytometry Calcium Imaging
Fluo-821080, 21086, 21087
Rhod-221060
Rhod-421120
Dual-WavelengthFura-221020, 21025, 21026Ultra Violet LightAccurately measures Ca2+ concentrations.

Avoids artifacts associated with variable dye distribution, photobleaching, and indicator leakage.

Quantitative Data Analysis

Fluorescence Microscopy

Flow Cytometry

Calcium Imaging

Indo-121030
Fura-821055
Fura-Red21045, 21046Visible Light



Fura-2 & Indo-1


Ratiometric indicators are powerful tools for detecting and imaging fluxes in target ion concentrations. Calcium indicators, such as fura-2 and indo-1, are UV-excitable fluorescent molecules utilized for investigating the regulatory roles of calcium at a cellular level. Depending on the binding status of fura-2 or indo-1's calcium chelating moieties, these ratiometric indicators will experience a shift in their maximum excitation or emission wavelengths. Fura-2 and its analogs are excitation-ratioable indicators for measuring intracellular Ca2+ concentrations. Upon binding to free Ca2+, these dual excitation indicators experience an absorption shift towards the blue spectrum while maintaining a fixed emission wavelength at ~510 nm. Fura-2 indicators with Ca2+-free chelators exhibit a maximum excitation wavelength at ~363 nm, while fura-2 indicators with Ca2+-bound chelators excite at ~335 nm.

In contrast to fura-2, which exhibits a shift in absorption upon binding to Ca2+, indo-1 and its analogs are emission-ratioable indicators for measuring intracellular Ca2+ concentrations. In Ca2+ free environments, indo-1 exhibits a maximum emission wavelength at ~475 nm. Upon binding to free Ca2+, indo-1's emission shifts toward the blue spectrum emitting at ~400 nm. Regardless of calciums presence, indo-1 maintains a maximum absorption at ~350 nm. This feature makes indo-1 well-suited for flow cytometry applications where it is easier to change emission filters rather than excitation sources.



Preparing Sample with Fura-2


Sample protocol for preparing cells with Fura-2, AM ester ratiometric indicators

Materials & Reagents:

  • Fura-2 AM (Cat# 21020)
  • HHBS (Cat# 20011)
  • 04% Pluronic® F-127 (Cat# 20052)

Labeling Live Cells:

  1. Prepare a 2 to 5 mM AM ester stock solution by dissolving fura-2, AM in high-quality, anhydrous DMSO.
    1. For future intended use, store DMSO stock solutions desiccated at -20 °C and protected from light.
  2. Prepare a working solution of 2 to 20 µM in HHBS with 0.04% Pluronic® F-127.
    1. For most cell lines we recommend a final concentration of Ca2+indicators to be 4-5 µM. To avoid any artifacts caused by overloading and potential dye toxicity, use the minimal probe concentration necessary to obtain an adequate signal, typically as low as 0.1 µM.
  3. For samples containing cells with organic anion-transports, such as CHO cells, probenecid (2-5 mM, Cat#20060) may be added to the dye working solution to reduce leakage of de-esterified indicators.
    1. Final in well concentration will be 1-2.5 mM for probenecid.
  4. Add equal volume of the dye working solution (from Step 2 or 3) into your cell plate.
  5. Incubate at room temperature or 37 °C for 1 – 2.5 hours.
  6. Replace the dye working solution with HHBS to remove excess probes.
  7. Run the desired experiment at Ex/Em wavelengths appropriate for fura-2.
    1. Ca2+-bound peak excitation wavelength at ~340 nm.
    2. Ca2+-free peak excitation wavelength at ~380 nm.
    3. Peak emission wavelength ~510 nm



Fluorescence Detection of Fura-2 & Indo-1


Monitoring the absorption and emission spectrum of ratiometric indicators under appropriate conditions is an excellent technique for observing the wavelength shifts of indicators in response to free intracellular Ca2+. The absorption shift of fura-2 can be observed by scanning the excitation spectrum between 300 nm and 400 nm with a fixed emission wavelength at ~510 nm. Likewise, indo-1 can be well excited by the argon-ion laser (~350 nm) of flow cytometers. When bound to free intracellular Ca2+, indo-1's emission shifts from a wavelength of ~475 nm to ~400 nm. A key feature of fura-2 and indo-1's fluorescence emissions is the presence of an isosbetic point at ~360 nm and ~460 nm, respectively (Figure 1). At this point, both ratiometric indicators' fluorescence intensity is insensitive to the concentration of free Ca2+. Additionally, the presence of an isosbetic point is indicative of good laboratory practices, as its absence is associated with either contamination by other ions or sloppy pipetting.

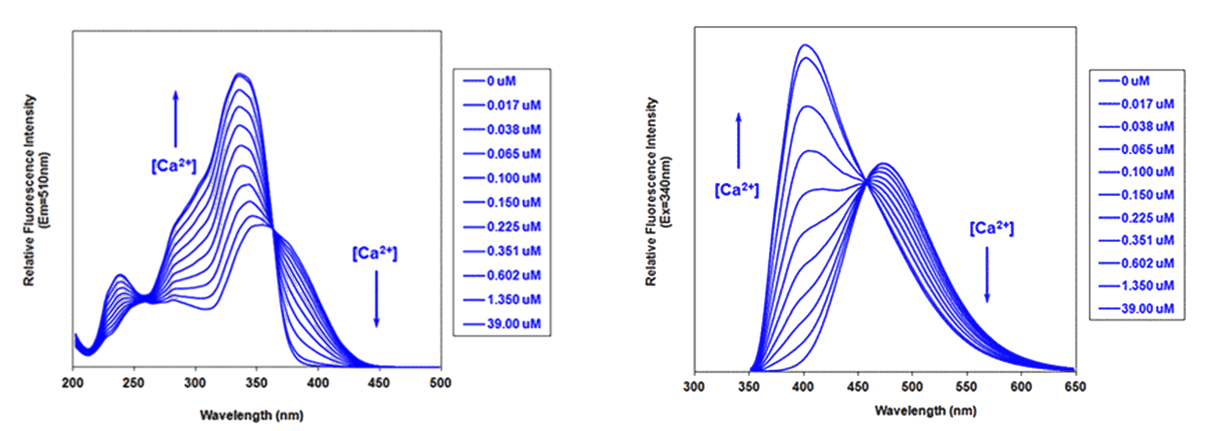

Fura-2
Indo-1

Fluorescence excitation spectra of fura-2 (left) and emission spectra of indo-1 (right) in solutions containing 0 to 39 µM free Ca2+.



Fura-2 & Indo-1 Derivatives


AM Esters: Live Cell Loading of Ratiometric Indicators


Fura-2 and indo-1 ratiometric indicators are available in AM ester form for live cell loading. Labeling ratiometric indicators with AM esters facilitates their passive diffusion across intact cell membranes of live cells. Once inside the cell, non-specific intracellular esterases hydrolyze the AM esters which activate the Ca2+ sensitive indicator.

Fura-2 & Indo-1: Salt Derivatives


Fura-2 and indo-1 are also available as cell-impermeant salt derivatives for determining the concentration of free Ca2+ in the cytosol, using the following equation: [Ca2+]free = Kd[F - Fmin]/[Fmax - F]

Where:
  • Kd is the Ca2+ dissociation constant of the indicator
  • F is the fluorescence value of the indicator at experimental Ca2+ levels
  • Fmin is the observed fluorescence value of the indicator in the absence of Ca2+
  • Fmax is the observed fluorescence value of a Ca2+-saturated indicator.

The Ca2+-binding and spectroscopic properties of ratiometric indicators vary significantly in cellular environments compared to calibration solutions. In situ calibrations of intracellular indicators typically yield Kd values significantly higher than in vitro determinations. In situ calibrations are performed by exposing loaded cells to controlled Ca2+ buffers in the presence of ionophores such as A-23187 which are used to raise intracellular Ca2+ levels. Alternatively, cell permeabilization agents such as digitonin can be used to expose the indicator to the controlled Ca2+ levels of the extracellular medium. The Kd values of some calcium ratiometric indicators are listed in Table 1.

Table 1. Spectral and Ca2+-binding properties of ratiometric calcium indicators.
Ca2+ IndicatorCatalog NumberExcitationEmissionKd of Ca2+-Binding
AM EsterSalt
Fura-221020, 21021 21022, 2102321025, 21026340/380 nm510 nm140 nM
Fura FF2102721028340/380 nm510 nm5.5 µM
Fura-8™21055, 2105621057, 21058354/415 nm524 nm260 nM
Fura-8™ FF2062020621354/415 nm524 nm6 µM
Fura Red21046, 2104821045, 21047436/471 nm630/652 nm400 nM
Indo-121030, 21032 21033, 2103621040, 21044355 nm400/475 nm230 nM



Fura-8 and Its Derivatives

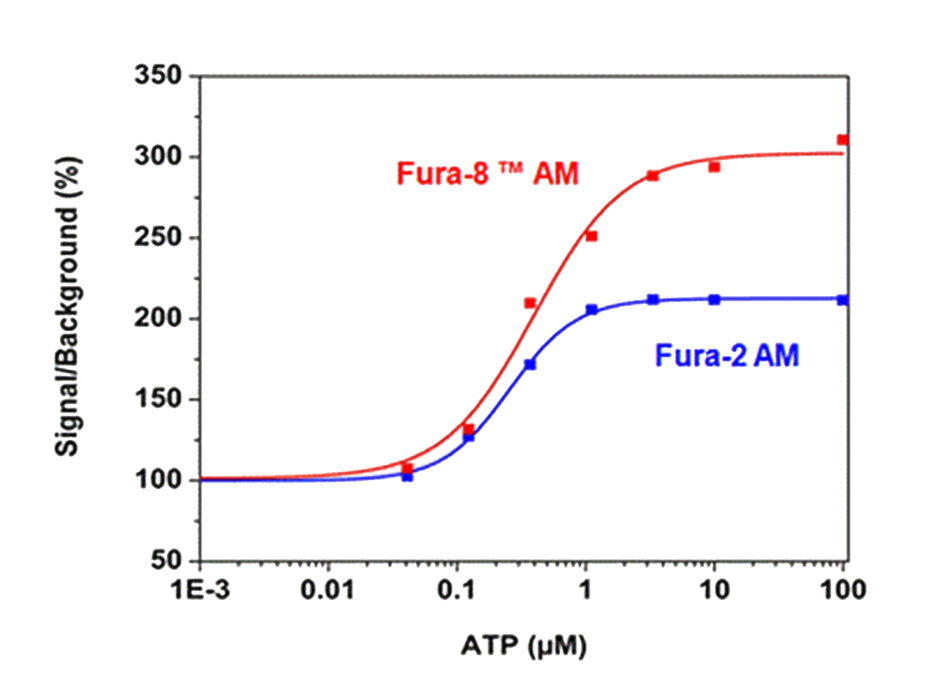

ATP Dose response
ATP Dose response in CHO-K1 cells measured with fura-2, AM (Cat#21020) and fura-8™, AM (Cat#21055) respectively. CHO-K1 cells were seeded overnight at 40,000 cells/100 µL/well in a black wall/clear bottom 96-well plate. The cells incubated with fura-2, AM or fura-8, AM calcium assay dye-loading solution respectively for 1 hour. ATP Dose was added by Flexstation.
AAT Bioquest has developed fura-8™ ratiometric indicators available in AM ester and salt derivative forms for an improved and sensitive response to measuring intracellular calcium concentrations. Compared to fura-2, fura-8™ has a higher signal-to-background ratio while maintaining a similar affinity for Ca2+ (Figure 2). The significant advantage to fura-8™ is a shift of its absorption and emission wavelengths in the direction of the red spectrum. Fura-8™ can be excited at ~365 nm (Ca2+-bound) and 410 nm (Ca2+-free) wavelengths with and emission wavelength ~ 525 nm. Such spectral properties makes fura-8™ excitable by relatively inexpensive high power LEDs and compatible with common emission filter sets such as FITC. Additionally, fura-8™'s shift in excitation wavelengths makes it acceptable to use with organic compounds that tend to fluoresce when excited below 360 nm, which could lead to a false signal. When using fura-8™ we recommend using Ex/Em = 354/530 nm and 415/530 nm for ratio measurements.


References


  1. Belz, Mathias, et al. "Fiber optic biofluorometer for physiological research on muscle slices."; Search the world's largest collection of optics and photonics applied research, International Society for Optics and Photonics, 17 Mar. 2016, www.spiedigitallibrary.org/conference-proceedings-of spie/9702/1/Fiber-optic-biofluorometer-for-physiological-research-on-muscle-slices/10.1117/12.2220291.full.
  2. Grynkiewicz, G, et al. "A new generation of Ca2 indicators with greatly improved fluorescence properties."; The Journal of biological chemistry., U.S. National Library of Medicine, 25 Mar. 1985, www.ncbi.nlm.nih.gov/pubmed/3838314.
  3. Pritchard, K., and C.c. Ashley. "Na /Ca2 Exchange in isolated smooth muscle cells de monstrated by the fluorescent calcium indicator fura-2."; FEBS Letters,vol. 195, no. 1-2, 1986, pp. 23–27., doi:10.1016/0014-5793(86)80122-3.
