Flow cytometry is a powerful technique routinely used for analyzing complex cell populations based on their physical and chemical characteristics. When combined with fluorescent labels, cellular components can be monitored and quantitatively assessed according to various parameters such as size, internal complexities or through expression of specific cellular markers (e.g. lipids, proteins, or DNA content). In applications utilizing DNA binding stains, flow cytometric analysis has the capacity to screen, characterize and fluorescently sort entire cell populations according to cellular DNA content. This is particularly important in resolving cell distribution within the major phases of the cell cycle, estimating the frequency of apoptotic cells characterized by fractional DNA content and revealing ploidy of the analyzed cell populations . Data collected from this approach has proved significantly useful in fields of research focusing on cell growth and development, proliferation and tumorigenesis, cell cycle regulation, drug discovery and oncology.
Eukaryotic Cell Cycle
The eukaryotic cell cycle includes a series of events that are involved in the growth, replication and division of cells. It describes the progression of a cell through a cycle of division, which consists of cytoplasmic and nuclear events controlled by cyclin-dependent kinases and their cyclin partners . In a given population, cells will be distributed among three major phases of the cell cycle: the G0/G1 phase, the S phase and the G2/M phase. The distribution of cells within these phases of the cell cycle is contingent upon their differences in cellular DNA content, and with the aid of DNA binding stains these variations can be quantitatively assessed with high sensitivity .
In flow cytometry, cellular DNA content is referred to as DNA ploidy. In the pre-replicative G0/G1 phase, cells induce growth by synthesizing RNA and proteins while the DNA content remains unaltered. At this stage of the cell cycle, cells have a DNA ploidy of 1, and when stained, exhibit fluorescence intensities proportional to its DNA content. Cells that have entered the G2/M phase of the cell cycle contain double the amount of cellular DNA. As such, these cells will have a DNA ploidy equal to 2 and therefore, exhibit fluorescence intensities twice that of the G0/G1 phase cells . In the S phase, cells are undergoing DNA replication and contain varying amounts of DNA (more than G0/G1 phase cells but less than G2/M phase cells). S phase cells are characterized by a DNA ploidy ranging between 1 to 2 and exhibit fluorescence intensities greater than G0/G1 phase cells but less than G2/M phase cells.
Supravital Staining For Cell Cycle Analysis
Analyzing cell cycle progression in live cells requires the use of cell-permeant DNA binding dyes. In this approach, cells are incubated with a dye that binds stoichiometrically to DNA. This means that the dye binds in proportion to the amount of DNA present in the each cell, and when excited by a laser will generate a signal proportional to its cellular DNA content. Traditionally, flow cytometric cell cycle analysis in live cells was performed using Hoechst dyes. Although cell-permeant, Hoechst dyes require ultraviolet excitation which is damaging to cellular DNA and can increase background interference in other channels.
To address this limitation, AAT Bioquest® has developed three Cell Meter™ Fluorimetric Live Cell Cycle Assay Kits for use with the common 405 nm violet laser or the 488 nm blue laser. These assays are ideal tools for flow cytometric analysis of DNA content in live cells as they progress through various phases of the cell cycle. Utilizing the same approach as aforementioned, cell populations are incubated with a stoichiometrically binding, cell permeable DNA dye. Upon DNA binding, the dye will undergo a significant fluorescence enhancement, emitting a signal that is proportional to cellular DNA mass. The percentage of cells in a given sample that are in G0/G1, S and G2/M phases, as well as the cells in the sub-G1 phase prior to apoptosis can be determined by flow cytometry. The collected fluorescence data can be used to generate a histogram illustrating the distribution of cells in each phase of the cycle (Figure 1).

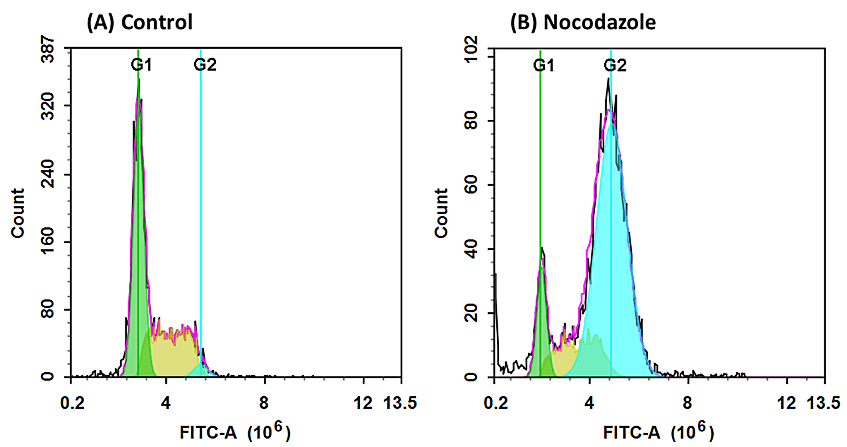

Figure 1. DNA profile in growing and nocodazole treated Jurkat cells. Jurkat cells were treated without (A) or with 100 ng/mL nocodazole (B) in a 37 °C, 5% CO2 incubator for 24 hours, and then dye loaded with Nuclear Green™ CCS1 for 30 minutes. The fluorescence intensity of Nuclear Green™ CCS1 was measured with ACEA NovoCyte flow cytometer using the channel of FITC. In growing Jurkat cells (A), nuclear stained with Nuclear Green™ CCS1 shows G1, S, and G2 phases. In nocodazole treated G2 arrested cells (B), frequency of G2 cells increased dramatically and frequencies of G1 and S phases decreased significantly.
Protocols for labeling live cell populations with Cell Meter™ Fluorimetric Live Cell Cycle Assays are simple and robust. Because these dyes are DNA selective, RNAse treatment of cell populations is not required to reduce background interference. Additionally, Nuclear Violet™, Nuclear Green™ CCS1 and Nuclear Red™ CCS2, the dye component of each kit, are provided as pre-formulated solutions and therefore do not have to be reconstituted. Simply incubate cells with the dye and then monitor the cell population using a flow cytometer, without washing.
Another distinct advantage of Cell Meter™ Fluorimetric Live Cell Cycle Assays is the capacity for multiplexing applications in flow cytometric analysis. Cell Meter™ Fluorimetric Live Cell Cycle assays are available in three distinct color choices for use with violet or blue laser. These options allow researchers the flexibility to designate other channels on their flow cytometers for analyzing different parameters. The Nuclear Violet™ stains take advantage of the commonly available 405 nm excitation source, while Nuclear Green™ CCS1 and Nuclear Red™ CCS2 stains utilize the 488 nm excitation source. This enables simultaneous co-staining of the cell population for other parameters such as analysis of GFP cells, CFSE cell tracing, cell sorting and immunophenotyping. A fluorescence spectrum viewer can assist in determining the ideal dye combination for multiplex analysis. Fluorophores under consideration should have minimal spectral overlap to reduce any bleed-through or spill-over effects.

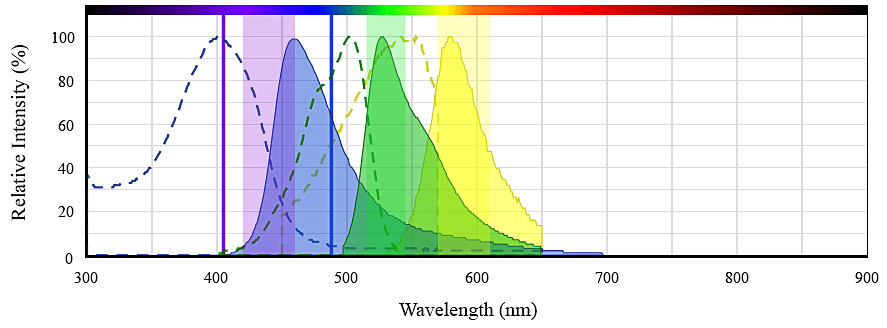

Figure 2. Excitation and emission spectra for Nuclear Violet™, Nuclear Green™ CCS1 and Nuclear Red™ CCS2. Nuclear Violet™ is efficiently excited by the 405 nm violet laser and can be visualized using the DAPI channel. Nuclear Green™ CCS1 is efficiently excited by the 488 nm blue laser and can be visualized using the FITC channel. Nuclear Red™ CCS2 is efficiently excited by the 488 nm blue laser and can be visualized using the Cy3/TRITC channel.
While flow cytometric analysis of DNA content may seem like a simple application, many factors influence the measurement. Instrument performance, sample preparation and acquisition, and the manner in which data is analyzed can have significant effects on measurement . Prior to cell cycle analysis, ensure that the flow cytometer is properly calibrated, and optimize the conditions for cell preparation, labeling acquisition and analysis.
Table 1. Product Ordering Information
|Cat. #||Product Name||Unit Size||Price||Instrument|
|22841||Cell Meter™ Fluorimetric Live Cell Cycle Assay Kit *Green Fluorescence*||100 Tests||$195||Flow Cytometer|
|22845||Cell Meter™ Fluorimetric Live Cell Cycle Assay Kit *Optimized for 405 nm Violet Laser Excitation*||100 Tests||$195|
|22860||Cell Meter™ Fluorimetric Live Cell Cycle Assay Kit *Red Fluorescence*||100 Tests||$295|
Cell Sample Preparation: Flow cytometry assays
Each cell line should be evaluated on the individual basis to determine the optimal cell density. For detaching adherent cells from the plate, 0.5 mM EDTA is recommended. Enzymatic reagents (e.g. trypsin, Accutase™) can be considered but need to be tested to make sure the receptor of interest on the cell surface is not affected.
- Plate cells at 400,000 to 800,000 cells/mL in cell growth medium on the day prior to use.
- Centrifuge the cells and carefully discard the supernatant (i.e., the culture medium).
- Re-suspend the cell pellet in 500 µL – 1 mL cell growth medium or HHBS at 500,000 to 1,000,000 cells/mL .
Sample Protocol for Flow Cytometric Live Cell Cycle Analysis
- For each sample, prepare cells in 0.5 mL of warm medium or buffer of your choice at a density of 5 × 105 to 1 × 106 cells/mL.
a. Note: Each cell line should be evaluated on an individual basis to determine the optimal cell density for apoptosis induction.
- Treat cells with test compounds for a desired period of time to induce apoptosis or other cell cycle functions.
- Add 2.5 µL of 200X Nuclear Green™ CCS1 (Component A) into the cells containing the growth medium, and incubate the cells in a 37 °C, 5% CO2 incubator for 30 to 60 minutes.
a. Note: For adherent cells, gently lift the cells with 0.5 mM EDTA to keep the cells intact, and wash the cells once with serum-containing media prior to incubation with Nuclear Green™ CCS1.
b. Note: The appropriate incubation time depends on the individual cell type and cell concentration used. Optimize the incubation time for each experiment.
c. Note: It is not necessary to fix the cells before DNA staining since the Nuclear Green™ CCS1 is cell-permeable.
- Optional: Centrifuge the cells at 1000 rpm for 4 minutes, and then re-suspend cells in 0.5 mL of assay buffer (Component B) or the buffer of your choice.
- Monitor the fluorescence intensity by flow cytometry using the 488 nm blue laser (Ex/Em = 490/525 nm). Gate on the cells of interest, excluding debris.
- Schorl, Christoph, and John M. Sedivy. “Analysis of Cell Cycle Phases and Progression in Cultured Mammalian Cells.” Methods, vol. 41, no. 2, 2007, pp. 143–150., doi:10.1016/j.ymeth.2006.07.022.
- Duronio, R. J., and Y. Xiong. “Signaling Pathways That Control Cell Proliferation.” Cold Spring Harbor Perspectives in Biology, vol. 5, no. 3, Jan. 2013, doi:10.1101/cshperspect.a008904.
- Darzynkiewicz, Zbigniew, et al. “Analysis of Cellular DNA Content by Flow Cytometry.” Current Protocols in Cytometry, Feb. 2017, doi:10.1002/cpcy.28.
- Darzynkiewicz, Zbigniew. “Critical Aspects in Analysis of Cellular DNA Content.” Current Protocols in Cytometry, vol. 56, no. 1, 2011, doi:10.1002/0471142956.cy0702s56.
- Kemp, Paul F. Handbook of Methods in Aquatic Microbial Ecology. Lewis, 1993.
