Fura-2, AM *UltraPure Grade* *CAS 108964-32-5*

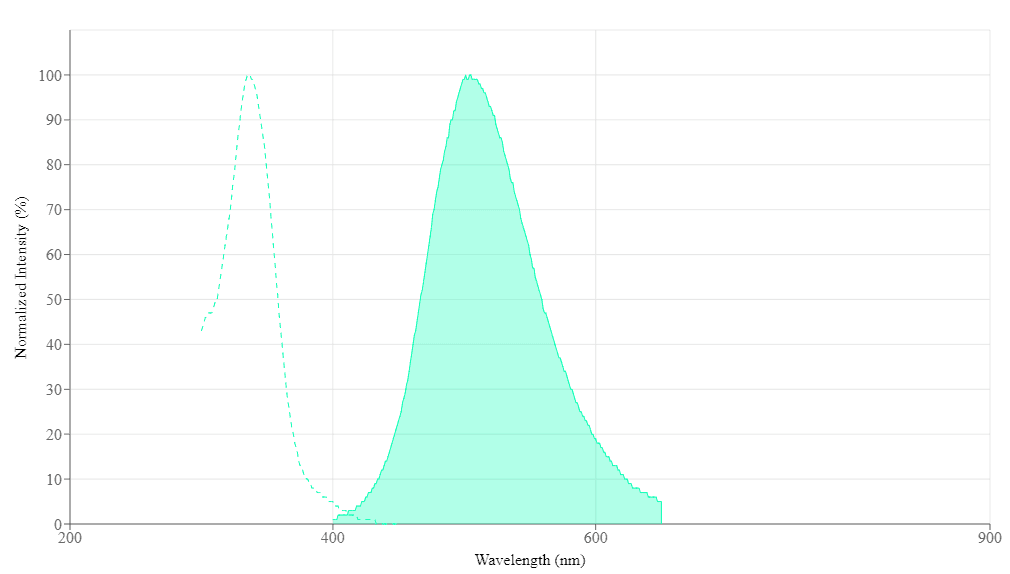

Fluorescence excitation spectra of Fura-2 in solutions conctaining 0 to 39uM free Ca2+.
Fluorescence excitation spectra of Fura-2 in solutions conctaining 0 to 39uM free Ca2+.
Fluorescence excitation spectra of Fura-2 in solutions conctaining 0 to 39uM free Ca2+.
Ordering information
Catalog Number
AvailabilityIn stock
Unit Size
Add to cart
Additional ordering information
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Dissociation constant (Kd, nM)145
Molecular weight1001.86
Spectral properties
Excitation (nm)336
Emission (nm)505
Storage, safety and handling
Certificate of OriginDownload PDF
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
Alternative formats
Fura-2, AM *CAS 108964-32-5*


Molecular weight
Dissociation constant (Kd, nM)
Excitation (nm)
Emission (nm)
Among the ratiometric calcium indicators, Fura-2 and Indo-1 are most commonly used. Fura-2 is excitation-ratioable while Indo-1 is emission-ratioable. Fura-2 is preferred for ratio-imaging microscopy, in which it is more practical to change excitation wavelengths than emission wavelengths. Upon binding Ca2+, Fura-2 exhibits an absorption shift that can be observed by scanning the excitation spectrum between 300 and 400 nm, while monitoring the emission at ~510 nm. Fura-2, AM is a cell-permeable calcium indicator that is emission-ratiometric and UV light'excitable. This AM ester form can be loaded into live cells noninvasively.


Fluorescence microscope

ExcitationFura 2 filter set
EmissionFura 2 filter set
Recommended plateBlack wall/clear bottom

Fluorescence microplate reader

Excitation340, 380
Recommended plateBlack wall/clear bottom
Instrument specification(s)Bottom read mode/Programmable liquid handling

Example protocol


Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles

Fura-2 AM *UltraPure Grade* Stock Solution
  1. Prepare a 2 to 5 mM stock solution of Fura-2 AM in high-quality, anhydrous DMSO.


Fura-2 AM *UltraPure Grade* Working Solution
  1. On the day of the experiment, either dissolve Fura-2 AM in DMSO or thaw an aliquot of the indicator stock solution to room temperature.

  2. Prepare a 2 to 20 µM Fura-2 AM working solution in a buffer of your choice (e.g., Hanks and Hepes buffer) with 0.04% Pluronic® F-127. For most cell lines, Fura-2 AM at a final concentration of 4-5 μM is recommended. The exact concentration of indicators required for cell loading must be determined empirically.

    Note: The nonionic detergent Pluronic® F-127 is sometimes used to increase the aqueous solubility of Fura-2 AM. A variety of Pluronic® F-127 solutions can be purchased from AAT Bioquest.

    Note: If your cells contain organic anion-transporters, probenecid (1-2 mM) may be added to the dye working solution (final in well concentration will be 0.5-1 mM) to reduce leakage of the de-esterified indicators. A variety of ReadiUse™ Probenecid products, including water-soluble, sodium salt, and stabilized solutions, can be purchased from AAT Bioquest.


Following is our recommended protocol for loading AM esters into live cells. This protocol only provides a guideline and should be modified according to your specific needs.

  1. Prepare cells in growth medium overnight.
  2. On the next day, add 1X Fura-2 AM working solution to your cell plate.

    Note: If your compound(s) interfere with the serum, replace the growth medium with fresh HHBS buffer before dye-loading.

  3. Incubate the dye-loaded plate in a cell incubator at 37 °C for 30 to 60 minutes.

    Note: Incubating the dye for longer than 1 hour can improve signal intensities in certain cell lines.

  4. Replace the dye working solution with HHBS or buffer of your choice (containing an anion transporter inhibitor, such as 1 mM probenecid, if applicable) to remove any excess probes.
  5. Add the stimulant as desired and simultaneously measure fluorescence using either a fluorescence microscope equipped with a Fura 2 filter set or a fluorescence plate reader containing a programmable liquid handling system such as a FlexStation, at Ex/Em1 = 340/510 nm cutoff 475 nm and Ex/Em2 = 380/510 nm cutoff 475 nm.


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of Fura-2, AM *UltraPure Grade* *CAS 108964-32-5* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM99.814 µL499.072 µL998.143 µL4.991 mL9.981 mL
5 mM19.963 µL99.814 µL199.629 µL998.143 µL1.996 mL
10 mM9.981 µL49.907 µL99.814 µL499.072 µL998.143 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles


Open in Advanced Spectrum Viewer

Spectral properties

Excitation (nm)336
Emission (nm)505
