ReadiLink™ Rapid mFluor™ Violet 540 Antibody Labeling Kit Microscale Optimized for Labeling 50 μg Antibody Per Reaction

Flow cytometry analysis of HL-60 cells stained with 1ug/ml Mouse IgG control (Green) or with 1ug/ml mouse Anti-Human HLA-ABC (W6/32 mAb)  (Red) and  then followed by Goat Anti-Mouse IgG-mFluor™ Violet 540 conjugate prepared with ReadiLink™ Rapid mFluor™ Violet 540 Antibody Labeling Kit (Cat#1114). The fluorescence signal was monitored using ACEA NovoCyte flow cytometer in the AmCyan channel.

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
International	See distributors
Bulk request	Inquire
Custom size	Inquire
Shipping	Standard overnight for United States, inquire for international

Request quotation

Spectral properties

Absorbance (nm)	401
Correction Factor (260 nm)	1.326
Correction Factor (280 nm)	0.543
Extinction coefficient (cm ^-1 M ^-1)	18000¹
Excitation (nm)	402
Emission (nm)	535
Quantum yield	0.21¹

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
UNSPSC	12171501

Overview SDS Protocol

Absorbance (nm)

401

Correction Factor (260 nm)

1.326

Correction Factor (280 nm)

0.543

Extinction coefficient (cm ^-1 M ^-1)

18000¹

Excitation (nm)

402

Emission (nm)

535

Quantum yield

0.21¹

AAT Bioquest's mFluor™ dyes are developed for flow cytometry-focused applications. These dyes have large Stokes Shifts, and can be well excited by the laser lines of flow cytometers (e.g., 405 nm, 488 nm and 633 nm). mFluor™ Violet 540 dyes have fluorescence excitation and emission maxima of ~405 nm and ~540 nm respectively. These spectral characteristics make them an excellent replacement for Pacific Orange™ labeling dye. mFluor™ Violet 540 SE is reasonably stable and shows good reactivity and selectivity with protein amino groups. This kit has all the essential components to perform two separate labeling reactions with no purification needed. Each of the two vials of mFluor™ Violet 540 SE provided in the kit is optimized for labeling ~50 µg antibody. mFluor™ Violet 540 SE antibody labeling kit provides a convenient method to label small amounts of monoclonal, polyclonal antibodies or other proteins (>10 kDa) with the Violet Laser-excitable mFluor™ Violet 540 SE.

Figure 1. Overview of the ReadiLink™ Rapid Antibody Labeling protocol. In just two simple steps, and with no purification necessary, covalently label microgram amounts of antibodies in under an hour.

Components

Example protocol

AT A GLANCE

Important

Warm all the components and centrifuge the vials briefly before opening, and immediately prepare the required solutions before starting your conjugation. The following protocol is for recommendation.

PREPARATION OF WORKING SOLUTION

Protein working solution (Solution A)

For labeling 50 µg of protein (assuming the target protein concentration is 1 mg/mL), mix 5 µL (10% of the total reaction volume) of Reaction Buffer (Component B) with 50 µL of the target protein solution.
Note     If you have a different protein concentration, adjust the protein volume accordingly to make ~50 µg of protein available for your labeling reaction.
Note     For labeling 100 µg of protein (assuming the target protein concentration is 1 mg/mL), mix 10 µL (10% of the total reaction volume) of Reaction Buffer (Component B) with 100 µL of the target protein solution.
Note     The protein should be dissolved in 1X phosphate buffered saline (PBS), pH 7.2 - 7.4; if the protein is dissolved in glycine buffer, it must be dialyzed against 1X PBS, pH 7.2 - 7.4, or use Amicon Ultra-0.5, Ultracel-10 Membrane, 10 kDa (cat# UFC501008 from Millipore) to remove free amines or ammonium salts (such as ammonium sulfate and ammonium acetate) that are widely used for protein precipitation.
Note     Impure antibodies or antibodies stabilized with bovine serum albumin (BSA) or gelatin will not be labeled well.
Note     For optimal labeling efficiency, a final protein concentration range of 1 - 2 mg/mL is recommended, with a significantly reduced conjugation efficiency at less than 1 mg/mL.

SAMPLE EXPERIMENTAL PROTOCOL

Run conjugation reaction

Add the protein working solution (Solution A) to ONE vial of labeling dye (Component A), and mix them well by repeatedly pipetting for a few times or vortex the vial for a few seconds.
Note If labeling 100 µg of protein, use both vials (Component A) of labeling dye by dividing the 100 µg of protein into 2 x 50 µg of protein and reacting each 50 µg of protein with one vial of labeling dye. Then combine both vials for the next step.
Keep the conjugation reaction mixture at room temperature for 30 - 60 minutes.
Note The conjugation reaction mixture can be rotated or shaken for longer time if desired.

Stop Conjugation reaction

Add 5 µL (for 50 µg protein) or 10 µL (for 100 µg protein) which is 10% of the total reaction volume of TQ-Dyed Quench Buffer (Component C) into the conjugation reaction mixture; mix well.
Incubate at room temperature for 10 minutes. The labeled protein (antibody) is now ready to use.

Storage of Protein Conjugate

The protein conjugate should be stored at > 0.5 mg/mL in the presence of a carrier protein (e.g., 0.1% bovine serum albumin). For longer storage, the protein conjugates could be lyophilized or divided into single-used aliquots and stored at ≤ –20°C.

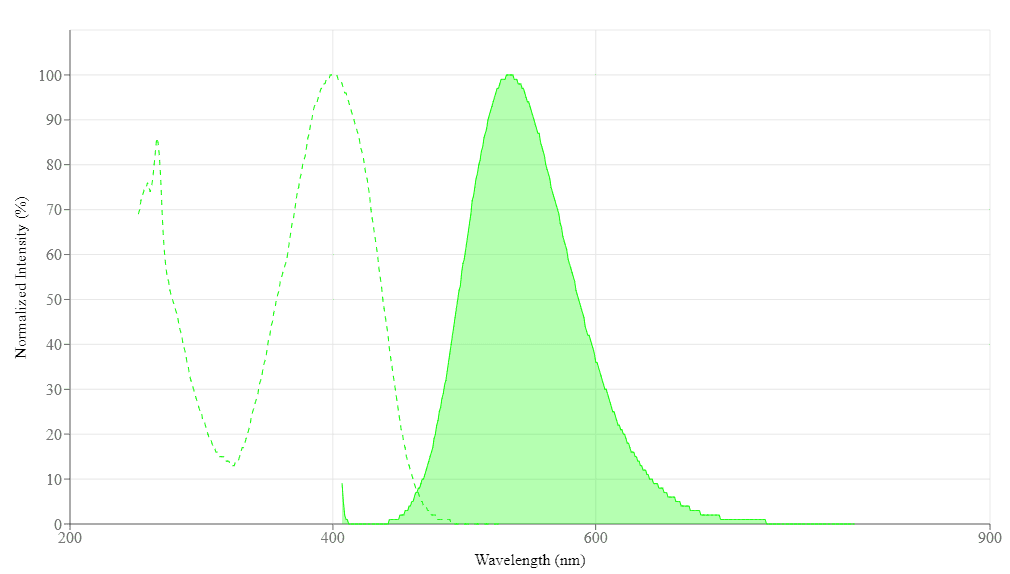

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Absorbance (nm)	401
Correction Factor (260 nm)	1.326
Correction Factor (280 nm)	0.543
Extinction coefficient (cm ^-1 M ^-1)	18000¹
Excitation (nm)	402
Emission (nm)	535
Quantum yield	0.21¹

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)	Quantum yield	Correction Factor (260 nm)	Correction Factor (280 nm)
ReadiLink™ Rapid mFluor™ Violet 450 Antibody Labeling Kit Microscale Optimized for Labeling 50 μg Antibody Per Reaction	406	445	35000¹	0.81¹	0.338	0.078
ReadiLink™ Rapid mFluor™ Violet 420 Antibody Labeling Kit Microscale Optimized for Labeling 50 μg Antibody Per Reaction	403	427	37000¹	0.91¹	-	-
ReadiLink™ Rapid mFluor™ Violet 510 Antibody Labeling Kit Microscale Optimized for Labeling 50 μg Antibody Per Reaction	412	505	25000¹	0.86¹	0.464	0.366

Images

Figure 1. Flow cytometry analysis of HL-60 cells stained with 1ug/ml Mouse IgG control (Green) or with 1ug/ml mouse Anti-Human HLA-ABC (W6/32 mAb) (Red) and then followed by Goat Anti-Mouse IgG-mFluor™ Violet 540 conjugate prepared with ReadiLink™ Rapid mFluor™ Violet 540 Antibody Labeling Kit (Cat#1114). The fluorescence signal was monitored using ACEA NovoCyte flow cytometer in the AmCyan channel.
