XFD700 acid
Ordering information
| Price | |
| Catalog Number | |
| Unit Size | |
| Quantity |
Additional ordering information
| Telephone | 1-800-990-8053 |
| Fax | 1-800-609-2943 |
| sales@aatbio.com | |
| International | See distributors |
| Bulk request | Inquire |
| Custom size | Inquire |
| Shipping | Standard overnight for United States, inquire for international |
Physical properties
| Molecular weight | 1102.97 |
| Solvent | DMSO |
Spectral properties
| Correction Factor (280 nm) | 0.07 |
| Extinction coefficient (cm -1 M -1) | 205000 |
| Excitation (nm) | 696 |
| Emission (nm) | 719 |
| Quantum yield | 0.251 |
Storage, safety and handling
| H-phrase | H303, H313, H333 |
| Hazard symbol | XN |
| Intended use | Research Use Only (RUO) |
| R-phrase | R20, R21, R22 |
| Storage | Freeze (< -15 °C); Minimize light exposure |
Related products
| Overview |  SDSProtocol |
Molecular weight 1102.97 | Correction Factor (280 nm) 0.07 | Extinction coefficient (cm -1 M -1) 205000 | Excitation (nm) 696 | Emission (nm) 719 | Quantum yield 0.251 |
XFD700 is the same molecule as the Alexa Fluor® 700 (Alexa Fluor® is the trademark of ThermoFisher). It is a bright and photostable near-IR dye that can be excited with a xenon-arc lamp, far-red diode lasers, or dye pumped lasers operating in the 675–700 nm range. It is used for stable signal generation in imaging and flow cytometry, and can be conjugated to antibodies, peptides, proteins, tracers, and amplification substrates. XFD700 has an absorption maximum at 702 nm and an emission maximum at 723 nm. It is compatible with all common excitation sources and instruments and can replace standard fluorophores such as Cy5.5 or IR680 for most applications.
Calculators
Common stock solution preparation
Table 1. Volume of DMSO needed to reconstitute specific mass of XFD700 acid to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.
| 0.1 mg | 0.5 mg | 1 mg | 5 mg | 10 mg | |
| 1 mM | 90.664 µL | 453.321 µL | 906.643 µL | 4.533 mL | 9.066 mL |
| 5 mM | 18.133 µL | 90.664 µL | 181.329 µL | 906.643 µL | 1.813 mL |
| 10 mM | 9.066 µL | 45.332 µL | 90.664 µL | 453.321 µL | 906.643 µL |
Molarity calculator
Enter any two values (mass, volume, concentration) to calculate the third.
| Mass (Calculate) | Molecular weight | Volume (Calculate) | Concentration (Calculate) | Moles | ||||
| / | = | x | = |
Spectrum
Open in Advanced Spectrum Viewer
Spectral properties
| Correction Factor (280 nm) | 0.07 |
| Extinction coefficient (cm -1 M -1) | 205000 |
| Excitation (nm) | 696 |
| Emission (nm) | 719 |
| Quantum yield | 0.251 |
Product Family
| Name | Excitation (nm) | Emission (nm) | Extinction coefficient (cm -1 M -1) | Quantum yield | Correction Factor (260 nm) | Correction Factor (280 nm) |
| XFD532 acid *Same Structure to Alexa Fluor™ 532 acid* | 317 | 553 | 81000 | 0.611 | 0.24 | 0.09 |
| XFD488 acid *Same Structure to Alexa Fluor™ 488 acid* | 490 | 520 | 71000 | 0.921 | 0.30 | 0.11 |
| XFD350 acid *Same Structure to Alexa Fluor™ 350 acid* | 303 | 439 | 19000 | - | 0.25 | 0.19 |
| XFD546 acid *Same Structure to Alexa Fluor™ 546 acid* | 323 | 572 | 112000 | 0.791 | 0.21 | 0.12 |
| XFD568 acid *Same Structure to Alexa Fluor™ 568 acid* | 546 | 603 | 91300 | 0.691 | 0.45 | 0.46 |
| XFD514 acid | 315 | 543 | 80000 | - | 0.31 | 0.18 |
| XFD555 acid | 553 | 568 | 155000 | 0.11 | 0.08 | 0.08 |
| XFD647 acid | 650 | 671 | 270000 | 0.331 | - | 0.03 |
| XFD750 acid | 752 | 776 | 290000 | 0.121 | - | 0.04 |
Show More (11) | ||||||
Images

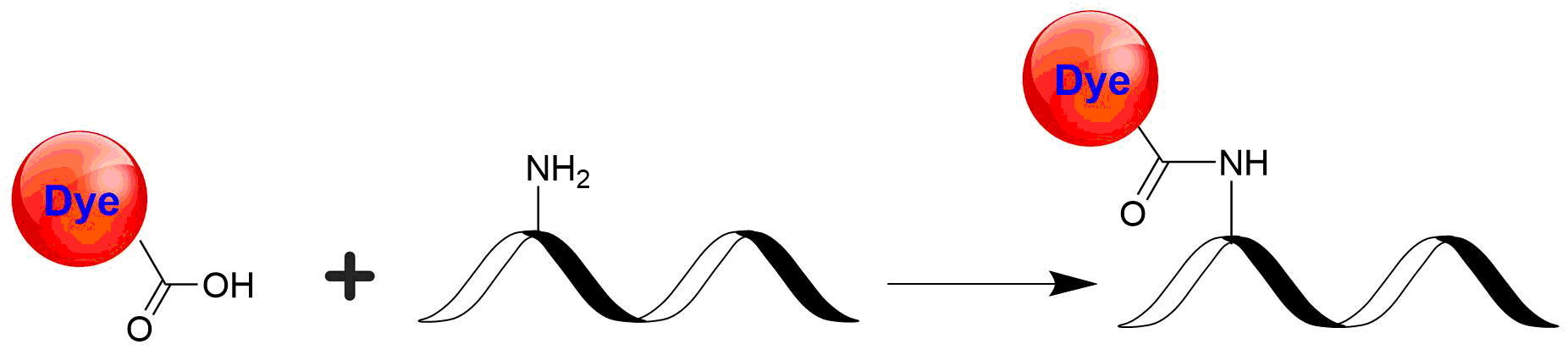

Figure 1. XFD700 is the same molecule as the Alexa Fluor® 700. It reacts with an amino compound in the presence of a catalyst such as EDAC etc.
