Labeling Proteins with iFluor® Dye Maleimides

Introduction


iFluor® dyes are a series of excellent fluorescent labeling dyes that span the full visible spectrum. All the iFluor® dyes have excellent water solubility. Their hydrophilic property minimizes the use of organic solvents. The iFluor® dyes also have much better labeling performance than the classic fluorescent labeling dyes such as FITC, TRITC, Texas Red®, Cy3®, Cy5® and Cy7®. Some of our iFluor® dyes significantly outperform Alexa Fluor® labeling dyes on certain antibodies. They are the best affordable fluorescent dyes (alternative to Alexa Fluor® dyes) for labeling proteins and nucleic acids without comprised performance. Each iFluor® dye was developed to match the spectral properties of a particular Alexa Fluor® or other labeling dyes (such as DyLight™ dyes).

Because free thiol (SH) groups, also called mercapto groups, are not present as abundantly as amino groups in most proteins, thiol-reactive reagents provide a means of selectively modifying a protein at a defined site. Thiol-reactive dyes are often used to prepare fluorescent peptides for probing biological structures, functions and interactions. There are many types of thiol-reactive dyes reported in the literature, including iodoacetamides, disulfides, maleimides, vinyl sulfones and various electron-deficient aryl halides and sulfonates. Maleimide is by far the most popular thiol-reactive moiety. Maleimides readily react with thiol moieties of biopolymers to form thioether conjugates even under neutral conditions. The thioether bond formed is quite stable. Maleimides require conjugation conditions less stringent than those of iodoacetamides, and do not react with histidine and methionine under physiological conditions. For example, most conjugations can be done at room temperature at neutral pH.

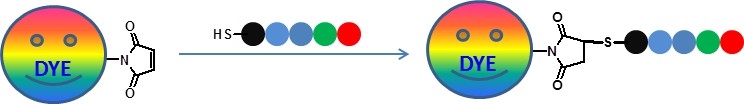

Figure 1. Maleimide reaction scheme for chemcial conjugation to a sulfhydryl.



Storage and Handling


Upon receipt, iFluor® dyes should be stored at <-15 oC, and kept from light and moisture. The reconstituted DMSO stock solution of iFluor® dye maleimides can be stored at <-15 oC for up to 4 weeks. The desired protein conjugate should be stored at >0.5 mg/mL in the presence of a carrier protein (e.g., 0.1% bovine serum albumin). The conjugate solution could be stored at 4 °C for two months without significant change when stored in the presence of 2 mM sodium azide and kept from light. For longer storage, the protein conjugates could be lyophilized or divided into single-used aliquots and stored at ≤–60 °C, and protected from light.



Sample Labeling Protocol


This labeling protocol was developed for the conjugate of Goat anti-mouse IgG with iFluor® 647 maleimide. You might need further optimization for your particular proteins.

  1. Prepare protein stock solution (Solution A):

    1. (Optional) If your protein does not contain a free cysteine, you must treat your protein with DTT or TCEP to generate a thiol group. DTT or TCEP are used for converting a disulfide bond to two free thiol groups. If DTT is used you must remove free DTT by dialysis or gel filtration before conjugating a dye maleimide to your protein. The following is a sample protocol for generating a free thiol group:
      1. Prepare a fresh solution of 1 M DTT (15.4 mg/100 µL) in distilled
      2. Make IgG solution in 20 mM DTT, add 20 µL of DTT stock per mL of IgG solution while mixing. Let stand at room temp for 30 minutes without additional mixing (to minimize reoxidation of cysteines to cystines).
      3. Pass the reduced IgG over a filtration column pre-equilibrated with "Exchange Buffer". Collect 0.25 mL fractions off the column.
      4. Determine the protein concentrations and pool the fractions with the majority of the IgG. This can be done either spectrophotometrically or colorimetrically.
      5. Carry out the conjugation as soon as possible after this step (see below).

        Note 1: IgG solutions should be >4 mg/mL for the best results. The antibody should be concentrated if less than 2 mg/mL. Include an extra 10% for losses on the buffer exchange column.

        Note 2: The reduction can be carried out in almost any buffers from pH 7-7.5, e.g., MES, phosphate or TRIS buffers.

        Note 3: Steps c and d can be replaced by dialysis.

    2. Mix 100 µL of a reaction buffer (e.g., 100 mM MES buffer with pH ~6.0) with 900 µL of the target protein solution (e.g. antibody, protein concentration >2 mg/mL if possible) to give 1 mL protein labeling stock solution.

      Note 1: The pH of the protein solution (Solution A) should be 6.5 ± 0.5.

      Note 2: Impure antibodies or antibodies stabilized with bovine serum albumin (BSA) or other proteins will not be labeled well.

      Note 3: The conjugation efficiency is significantly reduced if the protein concentration is less than 2 mg/mL. For optimal labeling efficiency the final protein concentration range of 2-10 mg/mL is recommended.

  2. Prepare dye stock solution (Solution B):

    1. Add anhydrous DMSO into the vial of iFluor® dye maleimide to make a 10-20 mM stock solution. Mix well by pipetting or vortex under subdued light (if possible).

      Note 1: Prepare the dye stock solution (Solution B) before starting the conjugation. Use promptly. Extended storage of the dye stock solution may reduce the dye activity. Solution B can be stored in freezer for up to 4 weeks when kept from light and moisture. Avoid freeze-thaw cycles.

  3. Determine the optimal dye/protein ratio (optional):

    Each protein requires a distinct dye/protein ratio, which also depends on the properties of dyes. Over labeling a protein could detrimentally affect its binding affinity, while protein conjugates of low dye/protein ratio gives reduced sensitivity. We recommend you experimentally determine the best dye/protein ratio by repeating Steps 4 and 5 using a serial different amount of labeling dye solutions. In general 4-6 dyes/protein are recommended for most of dye-protein conjugates.

    1. Use 10:1 molar ratio of Solution B (dye)/Solution A (protein) as the starting point: Add 5 µL of the dye stock solution (Solution B, assuming the dye stock solution is 10 mM) into the vial of the protein solution (95 µL of Solution A) with effective shaking. The concentration of the protein is ~0.05 mM assuming the protein concentration is 10 mg/mL and the molecular weight of the protein is ~200KD.

      Note 1: The concentration of the DMSO in the protein solution should be <10%.

    2. Run conjugation reaction (see Step 4 below).
    3. Repeat 3b with the molar ratios of Solution B/Solution A at 5:1; 15:1 and 20:1, respectively.
    4. Purify the desired conjugates using premade spin columns.
    5. Calculate the dye/protein ratio (DOS) for the above 4 conjugates (see next page).
    6. Run your functional tests of the above 4 conjugates to determine the best dye/protein ratio to scale up your labeling reaction.
  4. Run conjugation reaction:

    1. Add the appropriate amount of dye stock solution (Solution B) into the vial of the protein solution (Solution A) with effective shaking.

      Note 1: The best molar ratio of Solution B (dye)/Solution A (protein) is determined from Step 3f. If Step 3 is skipped, we recommend to use 10:1 molar ratio of Solution B (dye)/Solution A (protein).

    2. Continue to rotate or shake the reaction mixture at room temperature for 30-60 minutes.
  5. Purify the conjugation:

    The following protocol is an example of dye-protein conjugate purification by using a Sephadex G-25 column.

    1. Prepare Sephadex G-25 column according to the manufacture instruction.
    2. Load the reaction mixture (directly from Step 4) to the top of the Sephadex G-25 column.
    3. Add PBS (pH 7.2-7.4) as soon as the sample runs just below the top resin surface.
    4. Add more PBS (pH 7.2-7.4) to the desired sample to complete the column purification. Combine the fractions that contain the desired dye-protein conjugate.

      Note 1: For immediate use, the dye-protein conjugate need be diluted with staining buffer, and aliquoted for multiple uses.

      Note 2: For longer term storage, dye-protein conjugate solution need be concentrated or freeze dried (see below).



 Characterize the Desired Dye-Protein Conjugate


The Degree of Substitution (DOS) is the most important factor for characterizing dye-labeled proteins. Proteins of lower DOS usually have weaker fluorescence intensity, but proteins of higher DOS (e.g. DOS > 6) tend to have reduced fluorescence too. The optimal DOS for most antibodies is recommended between 2 and 10 depending on the properties of dye and protein. For effective labeling, the degree of substitution should be controlled to have 2-6 moles of iFluor® 647 dye to one mole of antibody. The following steps are used to determine the DOS of iFluor® 647 labeled proteins.

  1. Measure absorption:

    1. To measure the absorption spectrum of a dye-protein conjugate, it is recommended to keep the sample concentration in the range of 1-10 µM depending on the extinction coefficient of the dye.
  2. Read OD (absorbance) at 280 nm and dye maximum absorption (λmax = 651 nm for iFluor® 647 dyes):

    1. For most spectrophotometers, the sample (from the column fractions) need be diluted with de-ionized water so that the OD values are in the range of 0.1 to 0.9. The O.D. (absorbance) at 280 nm is the maximum absorption of protein while 649 nm is the maximum absorption of iFluor® 647 dye. To obtain accurate DOS, make sure that the conjugate is free of the non-conjugated dye.

  3. Calculate DOS using the following equations:

    1. Calculate protein concentration

      [Protein] = [(A280 - OD at Dye Maximum Absorption x CF at 280nm)]/Protein Extinction Coefficient] x Dilution Factor

    2. Calculate dye concentration

      [Dye] = [OD at Maximum Absorption/Dye Extinction Coefficient] x Dilution Factor

    3. Calculate the degree of labeling:

      DOS =  [Dye]/[Protein] = [DOD651 x Pε280]/[250,000 x (A280 - 0.03A651)]

[Dye] is the dye concentration, and can be readily calculated from the Beer-Lambert Law: A=εdyeCL. [Protein] is the protein concentration. This value can be either estimated by the weight (added to the reaction) if the conjugation efficiency is high enough (preferably >70%) or more accurately calculated by the Beer-Lambert Law: A=εproteinCL. For example, IgG has an ε value of 203,000 cm-1M-1Pε280 protein molar extinction coefficient at 280 nm (e. g. the molar extinction coefficient of IgG is 203,000 cm-1M-1). CF (dye absorption correction factor at 280 nm) = OD280/OD651 =  0.03 for iFluor® 647 dye. 250,000 cm-1M-1 is the molar extinction coefficient of iFluor® 647 dye.



References


  1. Hermanson GT (1996). Biocojugate Techniques, Academic Press, New York.
  2. Haugland RP (1995). Coupling of monoclonal antibodies with fluorophores. Methods Mol Biol 45, 205-21.
  3. Brinkley M (1992). A brief survey of methods for preparing protein conjugates with dyes, haptens, and cross-linking reagents. Bioconjug Chem 3, 2-13.



 Spectral Properties of iFluor® Fluroescence-Labeling Dyes


Cat# Product Name  Ext. Coeff. 1  Abs. (nm)  Em. (nm)  FQY 2  CF at 260 nm 3  CF at 280 nm 4
1060 iFluor® 350  20,000  346  443  0.95  0.83  0.23
1053 iFluor® 405  37,000  402  425  0.91  0.48  0.77
1054 iFluor® 430  40,000  433  497  0.78  0.68  0.3
1057 iFluor® 450  40,000  449  504  0.82  0.45  0.27
1062 iFluor® 488  75,000  491  518  0.9  0.21  0.11
1061 iFluor® 532  90,000  536  560  0.68  0.26  0.16
1063 iFluor® 555  100,000  552  567  0.64  0.23  0.14
1055 iFluor® 568  100,000  568  587  0.57  0.34  0.15
1064 iFluor® 594  180,000  594  614  0.53  0.05  0.04
1056 iFluor® 633  250,000  638  655  0.29  0.062  0.044
1065 iFluor® 647  250,000  649  664  0.25  0.03  0.03
1066 iFluor® 680  220,000  684  702  0.23  0.097  0.094
1067 iFluor® 700  220,000  685  710  0.23  0.09  0.04
1068 iFluor® 750  275,000  749  775  0.12  0.044  0.039
1366 iFluor® 790  275,000  782  811  0.13  0.1  0.09
1378 iFluor® 800  250,000  801  820  0.11  0.03  0.08
1388 iFluor® 810  250,000  811  825  0.05  0.09  0.15
1398 iFluor® 820  250,000  822  852  N/A  0.11  0.16
1402 iFluor® 840  200,000  836 876   0.02  0.2 0.09
1408 iFluor® 860  250,000  854  878  N/A  0.1  0.14

Note:

  1. Ext. Coeff. = Extinction coefficient at their maximum absorption wavelength. The units of extinction coefficient are cm-1M-1.
  2. FQY = fluorescence quantum yield in aqueous buffer (pH 7.2).
  3. CF at 260 nm is the correction factor used for eliminating the dye contribution to the absorbance at 260 nm.
  4. CF at 280 nm is the correction factor used for eliminating the dye contribution to the absorbance at 280 nm (for peptides and protein labeling).
  5. Fluorescence intensity is significantly increased upon coupling to proteins.
