mFluor™ Violet 510-streptavidin conjugate

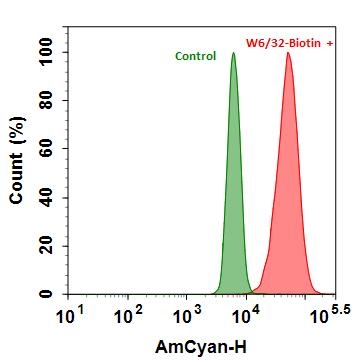

Flow cytometry analysis of HL-60 cells stained with(Red)  or without (Green) 1ug/ml Anti-Human HLA-ABC-Biotin then followed by mFluor™ Violet 510-streptavidin conjugate (Cat#16931). The fluorescence signal was monitored using ACEA NovoCyte flow cytometer in the AmCyan channel.
Flow cytometry analysis of HL-60 cells stained with(Red)  or without (Green) 1ug/ml Anti-Human HLA-ABC-Biotin then followed by mFluor™ Violet 510-streptavidin conjugate (Cat#16931). The fluorescence signal was monitored using ACEA NovoCyte flow cytometer in the AmCyan channel.
Ordering information
Price ()
Catalog Number16931
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight52000
SolventWater
Spectral properties
Absorbance (nm)410
Correction Factor (260 nm)0.464
Correction Factor (280 nm)0.366
Extinction coefficient (cm -1 M -1)250001
Excitation (nm)412
Emission (nm)505
Quantum yield0.861
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12352200
Related products
mFluor™ Violet 450 SE
mFluor™ Violet 510 SE
mFluor™ Violet 540 SE
mFluor™ Blue 570 SE
mFluor™ Green 620 SE
mFluor™ Yellow 630 SE
mFluor™ Red 700 SE
mFluor™ Red 780 SE
mFluor™ Red 780 amine
mFluor™ Violet 450-VAD-FMK
mFluor™ 510-VAD-FMK
mFluor™ Blue 570-streptavidin conjugate
mFluor™ Green 620-streptavidin conjugate
mFluor™ Yellow 630-streptavidin conjugate
mFluor™ Red 700-streptavidin conjugate
mFluor™ Red 780-streptavidin conjugate
mFluor™ Violet 450-dUTP *1 mM in Tris Buffer (pH 7.5)*
mFluor™ Violet 450 acid
mFluor™ Violet 510 acid
mFluor™ Violet 540 acid
mFluor™ Blue 570 acid
mFluor™ Green 620 acid
mFluor™ Yellow 630 acid
mFluor™ Red 700 acid
mFluor™ Violet 500 SE
mFluor™ UV375 SE
mFluor™ Red 780 acid
mFluor™ UV460 SE
mFluor™ Blue 630 SE
mFluor™ Blue 660 SE
mFluor™ Violet 610 SE
mFluor™ Green 630 SE
mFluor™ Blue 580 SE
mFluor™ Blue 590 SE
mFluor™ Blue 620 SE
mFluor™ Red 780 Maleimide
mFluor™ Violet 550 SE
mFluor™ Violet 505 SE
mFluor™ Violet 590 SE
mFluor™ Violet 545 SE
mFluor™ UV420 SE
mFluor™ UV455 SE
mFluor™ UV520 SE
mFluor™ UV540 SE
mFluor™ UV610 SE
mFluor™ Violet 450 Azide
mFluor™ Violet 450 maleimide
mFluor™ UV 375 Biotin Conjugate
mFluor™ UV 460 Biotin Conjugate
mFluor™ Violet 500 Biotin Conjugate
mFluor™ Violet 540 Biotin Conjugate
mFluor™ Red 780 Biotin Conjugate
mFluor™ Violet 530 SE
mFluor™ Violet 530 maleimide
RPE-streptavidin conjugate
APC-streptavidin conjugate
PerCP-streptavidin conjugate
RPE-iFluor® 647-streptavidin conjugate
RPE-iFluor® 750-streptavidin conjugate
APC-iFluor® 750-streptavidin conjugate
FITC-streptavidin conjugate
Texas Red®-streptavidin conjugate
Cy3®-streptavidin conjugate
Cy5®-streptavidin conjugate
Cy7®-streptavidin conjugate
HRP-streptavidin conjugate
AP-streptavidin conjugate [Streptavidin-alkaline phosphatase conjugate]
trFluor™ Eu-streptavidin conjugate
trFluor™ Tb-streptavidin conjugate
iFluor® 350-streptavidin conjugate
iFluor® 405-streptavidin conjugate
iFluor® 488-streptavidin conjugate
iFluor® 514-streptavidin conjugate
iFluor® 532-streptavidin conjugate
iFluor® 555-streptavidin conjugate
iFluor® 594-streptavidin conjugate
iFluor® 633-streptavidin conjugate
iFluor® 647-streptavidin conjugate
iFluor® 680-streptavidin conjugate
iFluor® 700-streptavidin conjugate
iFluor® 750-streptavidin conjugate
iFluor® 546-streptavidin conjugate
iFluor® 568-streptavidin conjugate
XFD350-streptavidin conjugate *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488-streptavidin conjugate *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594-streptavidin conjugate *XFD594 Same Structure to Alexa Fluor™ 594*
RPE-Cy7-streptavidin conjugate
iFluor® 790-streptavidin conjugate
iFluor® 800-streptavidin conjugate
iFluor® 820-streptavidin conjugate
iFluor® 840-streptavidin conjugate
iFluor® 860-streptavidin conjugate
MegaWox™ polyHRP-Streptavidin Conjugate
RPE-Cy5-streptavidin conjugate
Show More (94)

OverviewpdfSDSpdfProtocol


Molecular weight
52000
Absorbance (nm)
410
Correction Factor (260 nm)
0.464
Correction Factor (280 nm)
0.366
Extinction coefficient (cm -1 M -1)
250001
Excitation (nm)
412
Emission (nm)
505
Quantum yield
0.861
Streptavidin conjugates are widely used together with a conjugate of biotin for specific detection of a variety of proteins, protein motifs, nucleic acids and other molecules since streptavidin has a very high binding affinity for biotin. This mFluor™ Violet 510-streptavidin conjugate comprises streptavidin (as the biotin-binding protein) with mFluor™ Violet 510 covalently attached (as the fluorescent label). It is commonly used as a second step reagent for indirect immunofluorescent staining, when used in conjunction with biotinylated primary antibodies. It is a very valuable tool for biotin-streptavidin-based biological assays and tests using a flow cytometer equiped with a 405 nm excitation (e.g., the Violet Laser). A variety of the complementary biotinylated reagents are available from numerous commercial vendors.

Calculators


Common stock solution preparation

Table 1. Volume of Water needed to reconstitute specific mass of mFluor™ Violet 510-streptavidin conjugate to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM1.923 µL9.615 µL19.231 µL96.154 µL192.308 µL
5 mM384.615 nL1.923 µL3.846 µL19.231 µL38.462 µL
10 mM192.308 nL961.538 nL1.923 µL9.615 µL19.231 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Absorbance (nm)410
Correction Factor (260 nm)0.464
Correction Factor (280 nm)0.366
Extinction coefficient (cm -1 M -1)250001
Excitation (nm)412
Emission (nm)505
Quantum yield0.861

Product family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Quantum yieldCorrection Factor (260 nm)Correction Factor (280 nm)
mFluor™ Violet 450-streptavidin conjugate4064453500010.8110.3380.078
mFluor™ Violet 540-streptavidin conjugate4025351800010.2111.3260.543
