Fluorescent Calcium Indicators

Calcium acts as a universal second messenger in a variety of cells. Numerous functions of all types of cells are regulated by Ca2+, thus calcium measurement is critical for various biological investigations. Since the 1920s, scientists have attempted to measure Ca2+, but few were successful due to the limited availability of Ca2+ probes. The first reliable measurement of Ca2+ was performed by Ridgway and Ashley by injecting the photoprotein aequorin into the giant muscle fiber of the barnacle. Subsequently, in the 1980s, Tsien and colleagues produced a variety of fluorescent indicators. Among these indicators, Indo-1, Fura-2, Fluo-3 and Rhod-2 have been the most valuable dyes for measuring Ca2+ with a fluorescence instrument. In recent years, AAT Bioquest has introduced the most robust calcium probes: Fluo-8® and Cal-520®, both of which enable the high throughput screening of GPCR and calcium channel drug discovery targets through the convenient calcium detection. FLIPR® and FlexStation® instruments of Molecular Devices, FDSS®/µCELL of Hamamatsu and NOVOstar of BMG Technologies have further accelerated the high throughput measurement of calcium for GPCR and ion channel research.

Fluorescent probes that show spectral responses upon binding Ca2+ have enabled researchers to investigate changes in intracellular free Ca2+ concentrations by using fluorescence microscopy, flow cytometry, fluorescence spectroscopy and fluorescence microplate readers. Most of these fluorescent indicators are derivatives of BAPTA chelators that incorporate a PET system responsive to calcium. There are quite a few factors that need be considered when selecting a fluorescent Ca2+ indicator.

Among the visible light-excitable calcium indicators, Fluo-8®, Fluo-4, Fluo-3, Rhod-2 and Rhod-4™ are most commonly used. Fluo-8® indicators are widely used in flow cytometry and confocal laser-scanning microscopy. More recently, Fluo-8® AM has been extensively used for high throughput screening of GPCR targets. Fluo-8® is essentially nonfluorescent unless bound to Ca2+ and exhibits a quantum yield of ~0.15 in the presence of saturating Ca2+ and a Kd of 390 nM for Ca2+. Cal-520® is by far the best 488 nm-excitable green fluorescent calcium indicator with a significantly improved signal/background ratio and intracellular retention.

The long-wavelength Rhod-4™, Cal-590™ and Cal-630™ are valuable alternative Ca2+ indicators to the green fluorescent Fluo-8®, Fluo-4 and Fluo-3 for experiments in cells and tissues that have high levels of autofluorescence. Rhod-5N has a lower binding affinity for Ca2+ than any other BAPTA-based indicator (Kd = ~320 &µM) and is suitable for Ca2+ measurements from 10 &µM to 1 mM. Like the parent Rhod-2 indicator, Rhod-5N is essentially nonfluorescent in the absence of divalent cations and exhibits strong fluorescence enhancement with no spectral shift upon binding Ca2+. Both Fluo and Rhod indicators are available as cell-impermeant potassium salts or as cell-permeant AM esters.


Table 1. Classic Single Wavelength Fluorescent Calcium Indicators

Cat No.
Product Name
Ex (nm)
Em (nm)
Kd
Unit Size
20500Cal Green™ 1, hexapotassium salt506531190 nM 10x50 ug
20501Cal Green™ 1, AM [Equivalent to Calcium Green-1, AM]506531190 nM 10x50 ug
21011Fluo-3, AM *UltraPure grade* *CAS 121714-22-5*506526390 nM 1 mg
21018Fluo-3, pentaammonium salt506526390 nM 1 mg
21017Fluo-3, pentapotassium salt506526390 nM 1 mg
21016Fluo-3, pentasodium salt506526390 nM 1 mg
21064Rhod-2, AM *UltraPure Grade* *CAS#: 145037-81-6*549578570 nM 20x50 ug
21067Rhod-2, tripotassium salt549578570 nM 1 mg
21068Rhod-2, trisodium salt549578570 nM 1 mg
21070Rhod-5N, AM5515770.3 mM 1 mg
21072 Rhod-5N, tripotassium salt5515770.3 mM 1 mg



Dextran Conjugates of Calcium Indicators


Fluorescence intensity increase of Cal-520<sup>®</sup> -Dextran

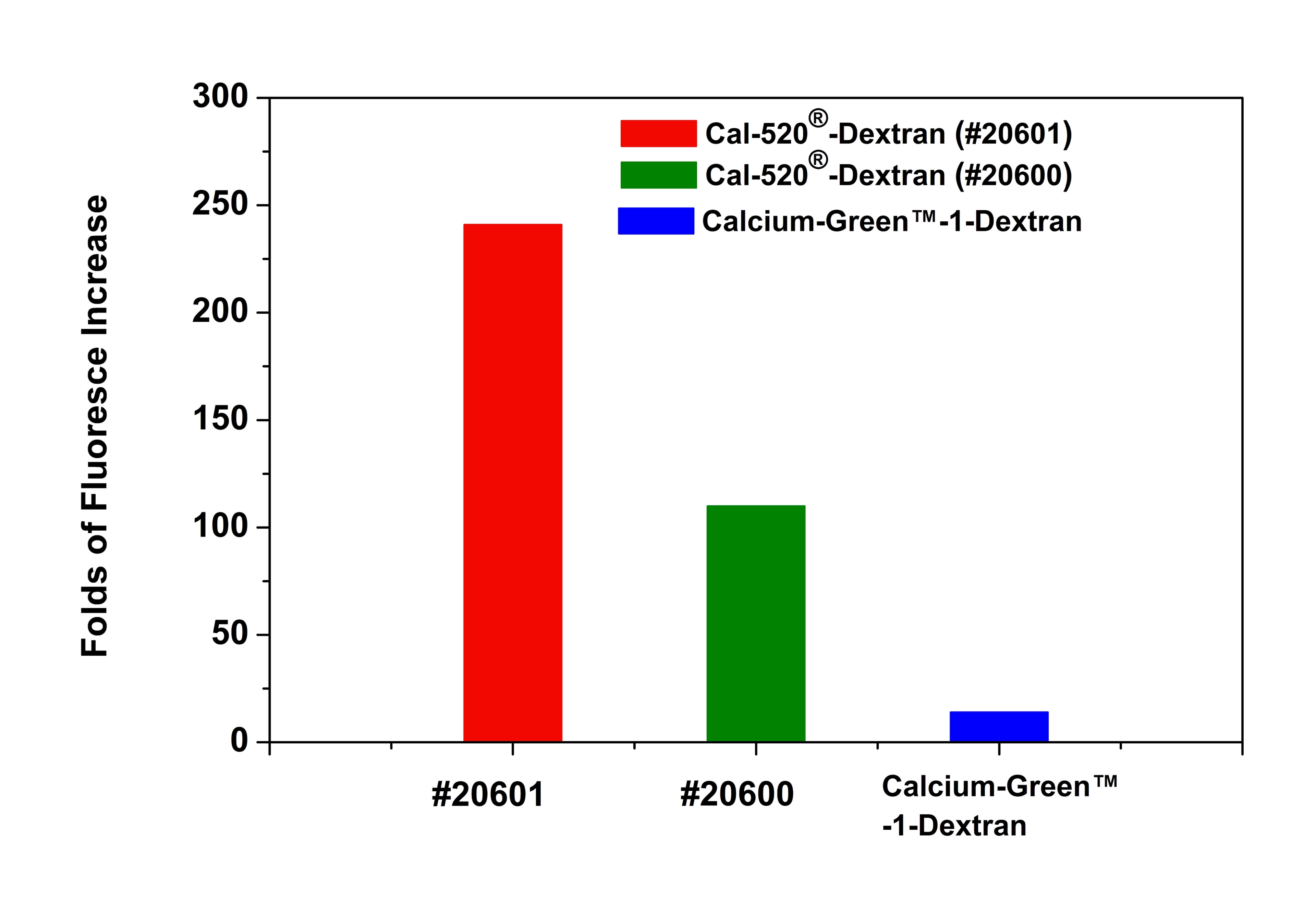

Fluorescence intensity increase of Cal-520® -Dextran (Cat# 20600), Cal-520® -Dextran (Cat# 20601) and Calcium-Green™ -1-Dextran upon binding to saturated amount of Ca2+.
Calcium measurement is critical for numerous biological investigations. Fluorescent probes tha show spectral responses upon binding to calcium have enabled researchers to investigate changes in intracellular free calcium concentrations by using fluorescence microscopy, flow cytometry, fluorescence spectroscopy and fluorescence microplate readers. Cells may be physically loaded with the cell-impermeant salt forms of these dextran-conjugated calcium indicators using patch pipettes or microinjection. The fluorescence signal from these cells is measured using fluorescence microscopy. The dextran forms of our calcium indicators show a dramatic reduction in both leakage and compartmentalization compared to the AM ester forms. Among the fluorescent calcium indicator dextran conjugates, Cal-520® dextran conjugates are the best choice due to their high fluorescence quantum yields and large fluorescence enhancement by calcium. Compared with Oregon Green® BAPTA-1 dextran, Cal-520® dextran exhibits much lower background and much larger calcium-induced fluorescence enhancement. Among the fluorescent calcium indicator dextran conjugates, Cal-590™ & Cal-630™ dextran conjugates might be better choices than other red fluorescent dextran conjugates due to their higher fluorescence quantum yields and larger fluorescence enhancement by calcium.


Table 2. Dextran Conjugates of Calcium Indicators

Cat No.
Product Name
Ex (nm)
Em (nm)
Unit Size
20600Cal-520®-Dextran Conjugate *MW 3,000*4925141 mg
20601Cal-520®-Dextran Conjugate *MW 10,000*4925145 mg
20508Cal-590™-Dextran Conjugate *MW 3,000*5735881 mg
20509Cal-590™-Dextran Conjugate *MW 10,000*5735881 mg
20545Cal-630™-Dextran Conjugate *MW 3,000*6086261 mg
20546Cal-630™-Dextran Conjugate *MW 10,000*6086261 mg



Cal Red™ R525/650


ATP-stimulated calcium response of endogenous P2Y receptor in CHO-K1 cells

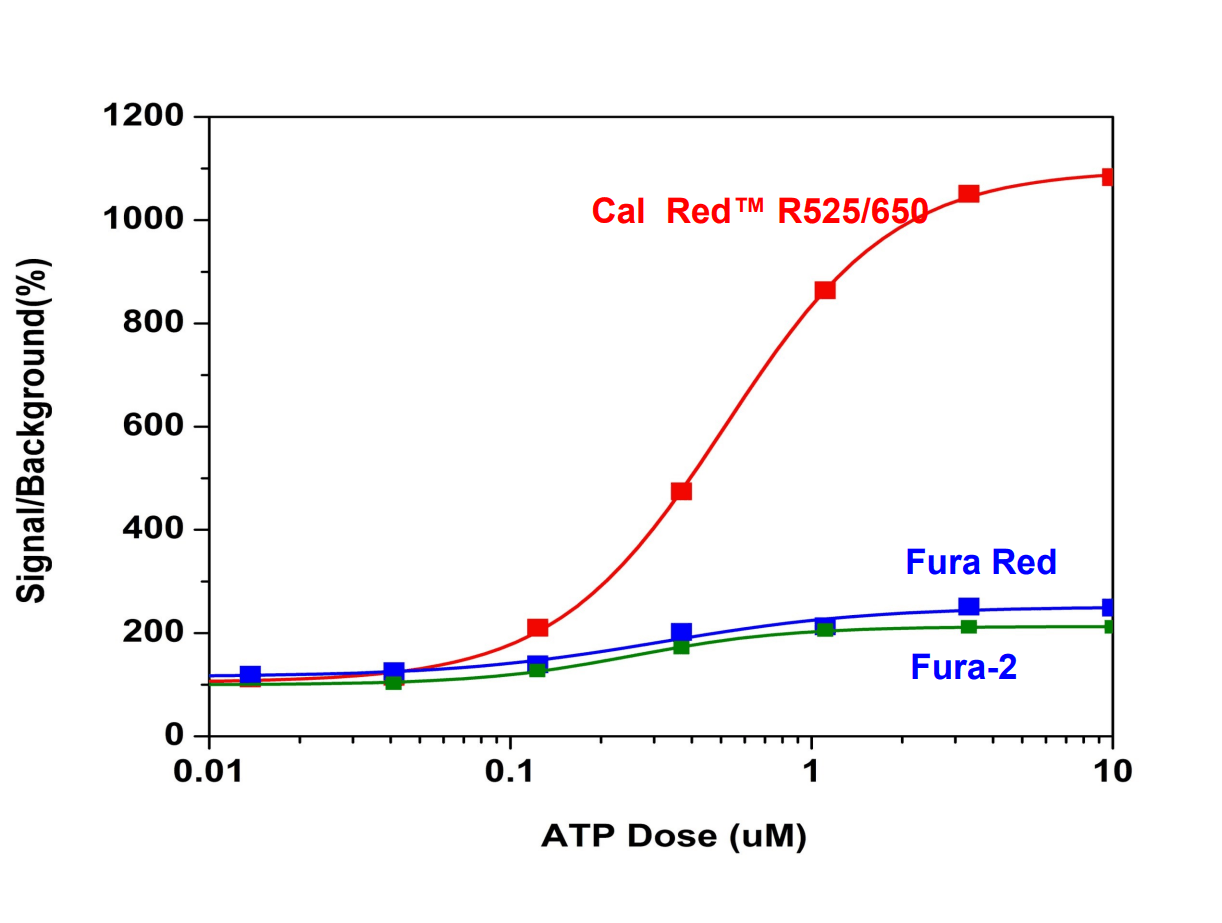

ATP-stimulated calcium response of endogenous P2Y receptor in CHO-K1 cells incubated with different Ca2+ indicators under the same conditions. ATP (50 µL/well) was added by FlexStation® 3 (Molecular Devices) to achieve the final indicated concentrations. (Red: Cal Red™ R525/650, AM, Cat# 20591; Blue: Fura Red, AM, Cat# 21046; Green: Fura-2, AM, Cat# 21023).
Cal Red™ R525/650 has been developed as a new 488 nm-excitable ratiometric fluorescence calcium indicator. Cal Red™ R525/650 is weakly fluorescent. Once it enters cells, the lipophilic AM blocking groups are cleaved by intracellular esterase, resulting in a negatively charged fluorescent dye retained well in cells with excitation close to 488 nm and two emissions at 525 nm and 650 nm. When cells are stimulated with a bioactive compound, the receptor initiates the release of intracellular calcium, which is chelated by Cal Red™ R525/650. The emission signal is increased at 525 nm and decreased at 650 nm when excited at 488 nm. The excitation and emission wavelengths of Cal Red™ R525/650 are compatible with common filter sets and cause minimal damage to cells, making it a robust tool for evaluating and screening GPCR agonists and antagonists, as well as calcium channel targets.


Table 3. Cal Red™ R525/620

Cat No.
Product Name
Ex (nm)
Em (nm)
Unit Size
20590Cal Red™ R525/650 AM492525/6501 mg
20591Cal Red™ R525/650 AM492525/65010x50 µg
20588Cal Red™ R525/650 potassium salt492525/6505x50 µg



Fluo-4 Calcium Indicators


chemical structure of Fluo-4 AM

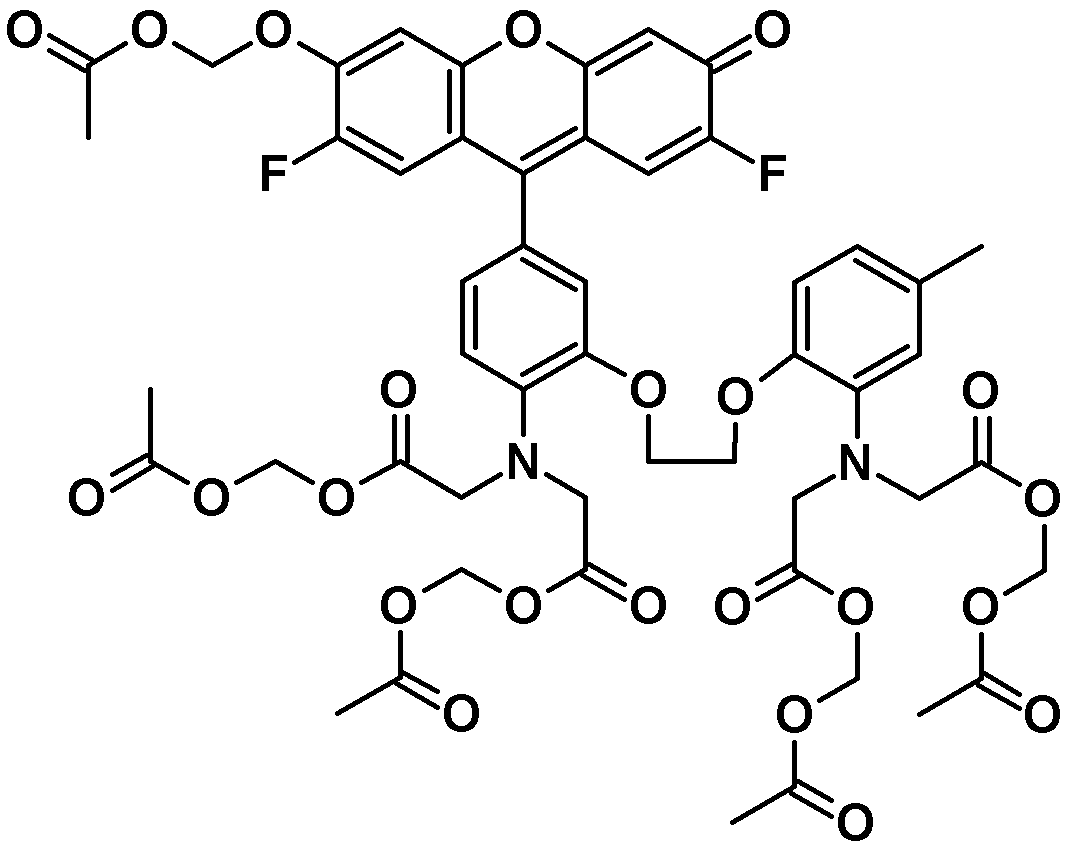

The chemical structure of Fluo-4 AM (Cat# 20552)
Fluo-3 and Fluo-4 are most commonly used among the visible light-excitable calcium indicators. Fluo-4 is an analog of Fluo-3 with the two chlorine substituents replaced by fluorines, which results in increased fluorescence excitation at 488 nm and consequently higher fluorescence signal levels. Cells may be loaded with the AM ester forms of these calcium indicators by adding the dissolved indicator directly to dishes containing cultured cells. AAT Bioquest offers Fluo-4 AM in the best quality with the best price.

Fluo-3 AM and Fluo-4 AM are only moderately fluorescent in live cells upon esterase hydrolysis, and require harsh cell loading conditions to maximize their cellular calcium responses. Fluo-8® and Cal-520® calcium dyes have been developed to improve cell loading and calcium response while maintaining the convenient Fluo-3 and Fluo-4 spectral wavelengths of maximum excitation @ ~490 nm and maximum emission @ ~520 nm.


Table 4. Fluo-4 green fluorescent calcium indicators for live cell calcium imaging.

Indicator
Ex (nm)
Em (nm)
Filter Set
Kd¹
Φ²
FCa/FFree³
Unit Size
Cat No.
Fluo-4 AM *Ultrapure Grade* *CAS 273221-67-3*495528FITC345 nM0.16∼100 fold1 mg20550
Fluo-4 AM *Ultrapure Grade* *CAS 273221-67-3*495528FITC345 nM0.16∼100 fold10x50 µg20551
Fluo-4 AM *Ultrapure Grade* *CAS 273221-67-3*495528FITC345 nM0.16∼100 fold5x50 µg20552
Fluo-4, Pentapotassium Salt495528FITC345 nM0.16∼100 fold1 mg20555
Fluo-4, Pentapotassium Salt495528FITC345 nM0.16∼100 fold1 mg20556
