6-HEX, SE [6-Carboxy-2',4,4',5',7,7'-hexachlorofluorescein, succinimidyl ester] Single Isomer

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
International	See distributors
Bulk request	Inquire
Custom size	Inquire
Shipping	Standard overnight for United States, inquire for international

Physical properties

Molecular weight	680.06
Solvent	DMSO

Spectral properties

Correction Factor (280 nm)	0.15
Extinction coefficient (cm ^-1 M ^-1)	73000
Excitation (nm)	533
Emission (nm)	559

Storage, safety and handling

Certificate of Origin	Download PDF
H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12171501

Overview SDS Protocol

CAS

2129651-79-0

Molecular weight

680.06

Correction Factor (280 nm)

0.15

Extinction coefficient (cm ^-1 M ^-1)

73000

Excitation (nm)

533

Emission (nm)

559

6-HEX, SE is the amine-reactive succinimidyl ester of 6-HEX acid. It is widely used in nucleic acid sequencing and related research.

Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of 6-HEX, SE [6-Carboxy-2',4,4',5',7,7'-hexachlorofluorescein, succinimidyl ester] *Single Isomer* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

	0.1 mg	0.5 mg	1 mg	5 mg	10 mg
1 mM	147.046 µL	735.229 µL	1.47 mL	7.352 mL	14.705 mL
5 mM	29.409 µL	147.046 µL	294.092 µL	1.47 mL	2.941 mL
10 mM	14.705 µL	73.523 µL	147.046 µL	735.229 µL	1.47 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)		Molecular weight		Volume (Calculate)		Concentration (Calculate)		Moles
	/		=		x		=

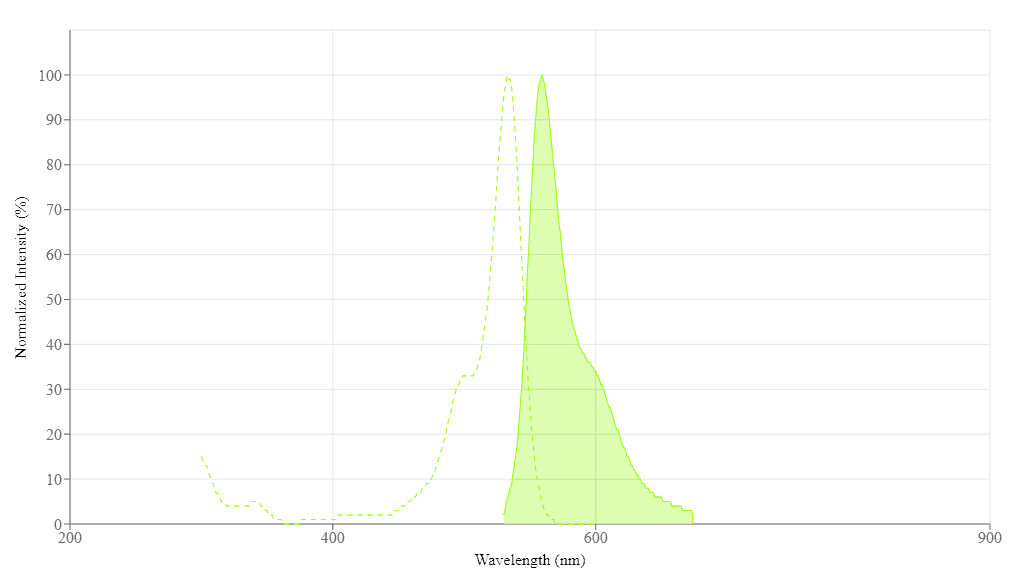

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Correction Factor (280 nm)	0.15
Extinction coefficient (cm ^-1 M ^-1)	73000
Excitation (nm)	533
Emission (nm)	559

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)	Correction Factor (280 nm)
6-FAM, SE [6-Carboxyfluorescein, succinimidyl ester] CAS 92557-81-8	493	517	83000	0.178
6-JOE, SE [6-Carboxy-4',5'-dichloro-2',7'-dimethoxyfluorescein, succinimidyl ester] CAS#: 113394-23-3	520	545	75000¹	-
6-TET, SE [6-Carboxy-2',4,7',7-tetrachlorofluorescein, succinimidyl ester]	521	542	73000	0.13
6-HEX azide	533	559	73000	0.15
6-HEX alkyne	533	559	73000	0.15
6-CR6G, SE [6-Carboxyrhodamine 6G, succinimidyl ester] Single isomer	522	546	94000	0.214
6-TAMRA, SE [6-Carboxytetramethylrhodamine, succinimidyl ester] CAS#: 150810-69-8	552	578	90000	0.178
6-ROX, SE [6-Carboxy-X-rhodamine, succinimidyl ester] CAS#: 216699-36-4	578	604	82000	0.168
6-HEX phosphoramidite [5'-Hexachlorofluorescein phosphoramidite]	533	559	73000	0.15
6-ROXtra™ SE Superior 6-ROX Replacement	578	595	-	-
6-VIC, SE [6-VIC NHS ester]	526	543	-	-
6-NED, SE [6-NED NHS ester]	545	567	74000¹	-
6-HEX acid	533	559	73000	0.15
Show More (4)

Images

Figure 1. Chemical structure for 6-HEX, SE [6-Carboxy-2',4,4',5',7,7'-hexachlorofluorescein, succinimidyl ester] *Single Isomer*

Citations

View all 1 citations: Citation Explorer

DNaasikontaminaation m{\"a}{\"a}ritysmenetelm{\"a}n karakterisointi
Authors: Sn{\"a}ll, Juho
Journal: (2019)

References

View all 12 references: Citation Explorer

Enhanced oligonucleotide delivery to mouse retinal cells using iontophoresis
Authors: Andrieu-Soler C, Doat M, Halhal M, Keller N, Jonet L, BenEzra D, Behar-Cohen F.
Journal: Mol Vis (2006): 1098

Multiple gene detection by in situ RT-PCR in isolated plant cells and tissues
Authors: Pesquet E, Barbier O, Ranocha P, Jauneau A, Goffner D.
Journal: Plant J (2004): 947

Purification of dye-labeled oligonucleotides by ion-pair reversed-phase high-performance liquid chromatography
Authors: Fountain KJ, Gilar M, Budman Y, Gebler JC.
Journal: J Chromatogr B Analyt Technol Biomed Life Sci (2003): 61

Development and clinical evaluation of an internally controlled, single-tube multiplex real-time PCR assay for detection of Legionella pneumophila and other Legionella species
Authors: Templeton KE, Scheltinga SA, Sillekens P, Crielaard JW, van Dam AP, Goossens H, Claas EC.
Journal: J Clin Microbiol (2003): 4016

Novel algorithm identifies species in a polymycobacterial sample by fluorescence capillary electrophoresis-based single-strand conformation polymorphism analysis
Authors: Iwamoto T, Sonobe T, Hayashi K.
Journal: J Clin Microbiol (2002): 4705

Single nucleotide polymorphism genotyping using short, fluorescently labeled locked nucleic acid (LNA) probes and fluorescence polarization detection
Authors: Simeonov A, Nikiforov TT.
Journal: Nucleic Acids Res (2002): e91

Binding and recognition of GATATC target sequences by the EcoRV restriction endonuclease: a study using fluorescent oligonucleotides and fluorescence polarization
Authors: Reid SL, Parry D, Liu HH, Connolly BA.
Journal: Biochemistry (2001): 2484

Strand-separating activity of hepatitis C virus helicase in the absence of ATP
Authors: Porter DJ, Preugschat F.
Journal: Biochemistry (2000): 5166

Development of a high-throughput quantitative assay for detecting herpes simplex virus DNA in clinical samples
Authors: Ryncarz AJ, Goddard J, Wald A, Huang ML, Roizman B, Corey L.
Journal: J Clin Microbiol (1999): 1941

Three mechanistic steps detected by FRET after presynaptic filament formation in homologous recombination. ATP hydrolysis required for release of oligonucleotide heteroduplex product from RecA
Authors: Gumbs OH, Shaner SL.
Journal: Biochemistry (1998): 11692
