Cal-630™ AM

Response of endogenous P2Y receptor to ATP in CHO-K cells detected with Cal-630 ™ AM.  CHO-K1 cells were seeded overnight at 50,000 cells per 100 µL per well in a Costar black wall/clear bottom 96-well plate. 100 uL of 5 uM Cal-630 ™ AM in HHBS (with 1.0 mM probenecid) was added into the cells and incubated at 37 °C for 1 hour.  Images were recorded with a fluorescence microscope (Olympus IX71) before and after adding 10 uM ATP (final in the well) using Texas Red Channel.

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
Quotation	Request
International	See distributors
Shipping	Standard overnight for United States, inquire for international

Physical properties

Dissociation constant (K_d, nM)	792
Molecular weight	1282.89
Solvent	DMSO

Spectral properties

Excitation (nm)	609
Emission (nm)	626
Quantum yield	0.37¹

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12352200

Overview SDS Protocol

Molecular weight

1282.89

Dissociation constant (K_d, nM)

792

Excitation (nm)

609

Emission (nm)

626

Quantum yield

0.37¹

Calcium measurement is critical for numerous biological investigations. Fluorescent probes that show spectral responses upon binding calcium have enabled researchers to investigate changes in intracellular free calcium concentrations by using fluorescence microscopy, flow cytometry, fluorescence spectroscopy and fluorescence microplate readers. x-Rhod-1 is commonly used as a red fluorescent calcium indicator. However, x-Rhod-1 is only moderately fluorescent in live cells upon esterase hydrolysis, and has very small cellular calcium responses. Cal-630™ has been developed to improve x-Rhod-1 cell loading and calcium response while maintaining the spectral wavelength of x-Rhod-1, making it compatible with Texas Red® filter set. In CHO and HEK cells Cal-630™ AM has cellular calcium response that is much more sensitive than x-Rhod-1. The spectra of Cal-630 is well separated from those of FITC, Alexa Fluor® 488 and GFP, making it an ideal calcium probe for multiplexing intracellular assays with GFP cell lines or FITC/Alexa Fluor® 488 labeled antibodies.

Platform

Fluorescence microscope

Excitation	Texas Red
Emission	Texas Red
Recommended plate	Black wall/clear bottom

Fluorescence microplate reader

Excitation	600
Emission	640
Cutoff	630
Recommended plate	Black wall/clear bottom
Instrument specification(s)	Bottom read mode/Programmable liquid handling

Example protocol

PREPARATION OF STOCK SOLUTIONS

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

Cal-630™ AM Stock Solution

Prepare a 2 to 5 mM stock solution of Cal-630™ AM in high-quality, anhydrous DMSO.

PREPARATION OF WORKING SOLUTION

Cal-630™ AM Working Solution

On the day of the experiment, either dissolve Cal-630™ AM in DMSO or thaw an aliquot of the indicator stock solution to room temperature. Prepare a dye working solution of 2 to 20 µM in a buffer of your choice (e.g., Hanks and Hepes buffer) with 0.04% Pluronic® F-127. For most cell lines, Cal-630™ AM at a final concentration of 4-5 μM is recommended. The exact concentration of indicators required for cell loading must be determined empirically.
Note The nonionic detergent Pluronic® F-127 is sometimes used to increase the aqueous solubility of Cal-630™ AM. A variety of Pluronic® F-127 solutions can be purchased from AAT Bioquest.
Note If your cells contain organic anion-transporters, probenecid (1-2 mM) may be added to the dye working solution (final in well concentration will be 0.5-1 mM) to reduce leakage of the de-esterified indicators. A variety of ReadiUse™ probenecid products, including water-soluble, sodium salt, and stabilized solution, can be purchased from AAT Bioquest.

SAMPLE EXPERIMENTAL PROTOCOL

Following is our recommended protocol for loading AM esters into live cells. This protocol only provides a guideline and should be modified according to your specific needs.

Prepare cells in growth medium overnight.
On the next day, add 1X Cal-630™ AM working solution into your cell plate.
Note If your compound(s) interfere with the serum, replace the growth medium with fresh HHBS buffer before dye-loading.
Incubate the dye-loaded plate in a cell incubator at 37 °C for 30 to 60 minutes.
Note Incubating the dye for longer than 2 hours can improve signal intensities in certain cell lines.
Replace the dye working solution with HHBS or buffer of your choice (containing an anion transporter inhibitor, such as 1 mM probenecid, if applicable) to remove any excess probes.
Add the stimulant as desired and simultaneously measure fluorescence using either a fluorescence microscope equipped with a Texas Red filter set or a fluorescence plate reader containing a programmable liquid handling system such as an FDSS, FLIPR, or FlexStation, at Ex/Em = 600/640 nm cutoff 630 nm.

Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of Cal-630™ AM to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

	0.1 mg	0.5 mg	1 mg	5 mg	10 mg
1 mM	77.949 µL	389.745 µL	779.49 µL	3.897 mL	7.795 mL
5 mM	15.59 µL	77.949 µL	155.898 µL	779.49 µL	1.559 mL
10 mM	7.795 µL	38.975 µL	77.949 µL	389.745 µL	779.49 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)		Molecular weight		Volume (Calculate)		Concentration (Calculate)		Moles
	/		=		x		=

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Excitation (nm)	609
Emission (nm)	626
Quantum yield	0.37¹

Product Family

Name	Excitation (nm)	Emission (nm)	Quantum yield
Cal-590™ AM	574	588	0.62¹
Cal-520®, AM	493	515	0.75¹
Cal-520FF™, AM	493	515	0.75¹
Cal-520N™, AM	493	515	0.75¹
Calbryte™ 630 AM	607	624	-
Cal-500™ AM	388	482	0.48¹

Images

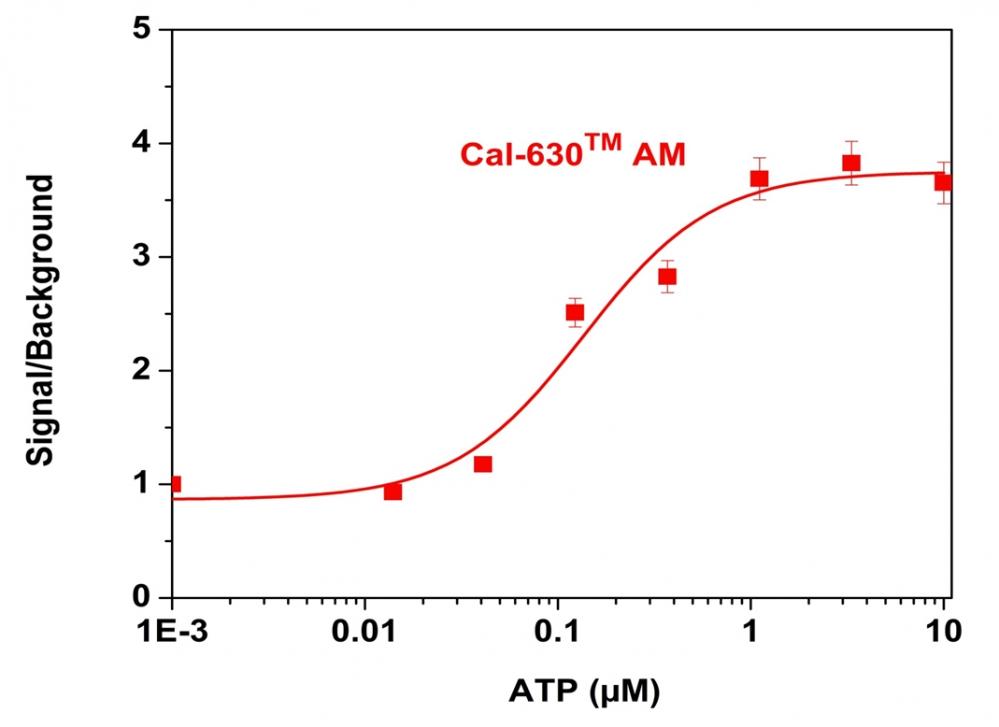

Figure 1. ATP-stimulated calcium responses of endogenous P2Y receptor in CHO-K1 cells incubated with Cal-630™ AM (red curve). CHO-K1 cells were seeded overnight at 50,000 cells per 100 uL per well in a Costar black wall/clear bottom 96-well plate. 100 uL of 5 µM Cal-630 ™ AM in HHBS (with 1.0 mM probenecid) was added into the cells and incubated at 37 °C for 1 hour. ATP (50 uL/well) was added using FlexSation to achieve the final indicated concentrations.

Figure 2. Response of endogenous P2Y receptor to ATP in CHO-K cells detected with Cal-630 ™ AM. CHO-K1 cells were seeded overnight at 50,000 cells per 100 µL per well in a Costar black wall/clear bottom 96-well plate. 100 uL of 5 uM Cal-630 ™ AM in HHBS (with 1.0 mM probenecid) was added into the cells and incubated at 37 °C for 1 hour. Images were recorded with a fluorescence microscope (Olympus IX71) before and after adding 10 uM ATP (final in the well) using Texas Red Channel.
