Calcein, AM *CAS 148504-34-1*
| Overview |  SDSProtocol |
CAS 148504-34-1 | Molecular weight 994.86 | Extinction coefficient (cm -1 M -1) 81000 | Excitation (nm) 501 | Emission (nm) 521 |
Calcein AM readily passes through the cell membrane of viable cells because of its enhanced hydrophobicity as compared to calcein. The acetomethoxy (AM) derivate of calcein (calcein AM) is widely used for labeling live cells as it can be transported through the cellular membrane into live cells. The AM ester groups mask the part of the molecule that chelates calcium. Upon transporting into live cells cellular esterases cut off the AM groups, the molecule binds to calcium within cell (resulting in acquiring strong green fluorescence), and gets trapped inside. As dead cells lack esterases, only live cells are marked. This feature makes it very useful for testing of cell viability and for short-term marking of cells. Compared with other live cell-labeling reagents (such as BCECF-AM and carboxy-fluorescein diacetate), calcein-AM is the most suitable fluorescent probe for staining viable cells because of its low cytotoxicity. Calcein does not significantly affect cellular functions such as proliferation or chemotaxis of lymophocyte. In addition, viability assays using calcein are reliable and correlate well with the standard 51Cr-release assay.
Platform
Flow cytometer
| Excitation | 488 nm laser |
| Emission | 530/30 nm filter |
| Instrument specification(s) | FITC channel |
Fluorescence microscope
| Excitation | FITC filter set |
| Emission | FITC filter set |
| Recommended plate | Black wall/clear bottom |
Fluorescence microplate reader
| Excitation | 490 |
| Emission | 525 |
| Cutoff | 515 |
| Recommended plate | Black wall/clear bottom |
| Instrument specification(s) | Bottom read mode |
Example protocol
PREPARATION OF STOCK SOLUTIONS
Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.
Note The nonionic detergent Pluronic® F-127 can be used to increase the aqueous solubility of AM esters. In the staining buffer, the final Pluronic® F-127 concentration should be approximately 0.02%. A variety of Pluronic® F-127 products can be purchased from AAT Bioquest. Avoid long-term storage of AM esters in the presence of Pluronic® F-127.
Calcein AM stock solution
Prepare a 2 to 5 mM stock solution of Calcein AM in high-quality, anhydrous DMSO.Note The nonionic detergent Pluronic® F-127 can be used to increase the aqueous solubility of AM esters. In the staining buffer, the final Pluronic® F-127 concentration should be approximately 0.02%. A variety of Pluronic® F-127 products can be purchased from AAT Bioquest. Avoid long-term storage of AM esters in the presence of Pluronic® F-127.
PREPARATION OF WORKING SOLUTION
Calcein AM working solution
Prepare a Calcein AM working solution of 1 to 10 µM in the buffer of your choice (e.g., Hanks and Hepes buffer). For most cell lines, Calcein AM at the final concentration of 4 to 5 µM is recommended. The exact concentration of indicators required for cell loading must be determined empirically.Note If your cells contain organic anion-transporters, probenecid (1–2.5 mM) or sulfinpyrazone (0.1–0.25 mM) may be added to the working solution to reduce leakage of the de-esterified indicators.
SAMPLE EXPERIMENTAL PROTOCOL
- Prepare cells for imaging.
- Remove the cell culture medium and wash cells once with serum-free buffer to remove any remaining media.
Note Serum in cell culture media may contain esterase activity, which can increase background interference. - Add Calcein AM working solution to the culture.
- Incubate cells at 37 °C for 30 to 60 minutes.
- Replace the dye working solution with HHBS or buffer of your choice (containing an anion transporter inhibitor, such as 1 mM probenecid, if applicable) to remove any excess probes.
- Measure the fluorescence intensity using either a fluorescence microscope equipped with a FITC filter set, a flow cytometer equipped with a blue laser and a 530/30 nm filter (FITC channel), or a fluorescence plate reader at Ex/Em = 490/525 nm cutoff 515 nm.
Calculators
Common stock solution preparation
Table 1. Volume of DMSO needed to reconstitute specific mass of Calcein, AM *CAS 148504-34-1* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.
| 0.1 mg | 0.5 mg | 1 mg | 5 mg | 10 mg | |
| 1 mM | 100.517 µL | 502.583 µL | 1.005 mL | 5.026 mL | 10.052 mL |
| 5 mM | 20.103 µL | 100.517 µL | 201.033 µL | 1.005 mL | 2.01 mL |
| 10 mM | 10.052 µL | 50.258 µL | 100.517 µL | 502.583 µL | 1.005 mL |
Molarity calculator
Enter any two values (mass, volume, concentration) to calculate the third.
| Mass (Calculate) | Molecular weight | Volume (Calculate) | Concentration (Calculate) | Moles | ||||
| / | = | x | = |

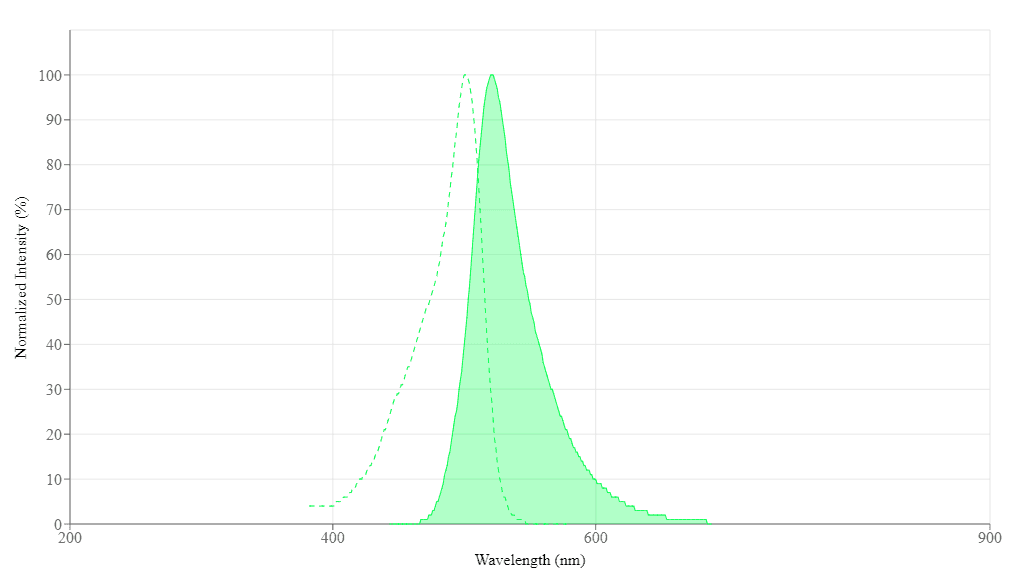

Spectrum
Open in Advanced Spectrum Viewer
Spectral properties
| Extinction coefficient (cm -1 M -1) | 81000 |
| Excitation (nm) | 501 |
| Emission (nm) | 521 |
Images
Figure 1. Simultaneous imaging of live and apoptotic HeLa cells labeled using calcein AM (Cat No. 22002) and Annexin V-iFluor® 647 conjugate (Cat No. 20074).
Figure 2. Images of Live HeLa cells stained with Calcein, AM (Cat.22002).
Figure 3. Chemical structure for Calcein, AM *CAS 148504-34-1*
Figure 4. Images of Live HeLa cells stained with Calcein, AM (Cat.22002). Cell nuclei were stained with Hoechst 33342 (Blue, Cat#17535).
Figure 5. Scheme of experimental temperature modulation. Cells were kept at 37 °C initially. (A) HuMEC-1 and PBL were treated for 60 min at 37 °C. TEM was performed for 120 min at 37 °C, 30 °C and 18°. (B) HuMEC-1 and PBL were treated for 60 min at 37 °C, 30 °C and 18 °C. TEM was performed for 120 min under the same temperature conditions as HuMEC-1 and PBL were treated before. (C) HuMEC-1 and PBL were treated for 60 min at 37 °C, 30 °C or 18 °C with subsequent rewarming to 37 °C during TEM for 120 min. Source: Influence of hypothermia and subsequent rewarming upon leukocyte-endothelial interactions and expression of Junctional-Adhesion-Molecules A and B by Bogert et al., Scientific Reports, Feb. 2016.
