ReadiUse™ Preactivated PE-Cy7 Maleimide

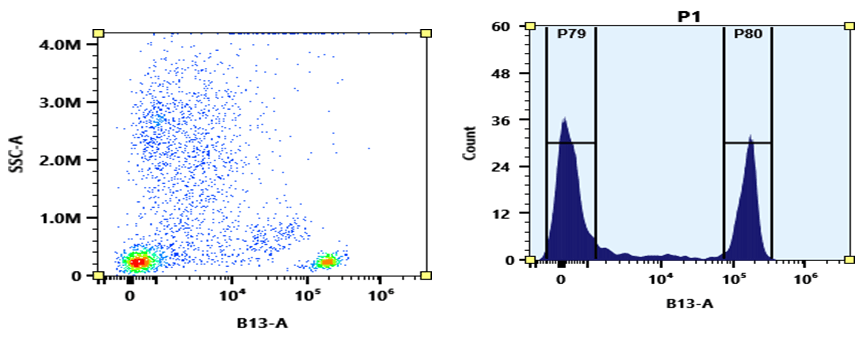

Flow cytometry analysis of whole blood stained with PE-Cy7 anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora spectral flow cytometer in the PE-Cy7 specific B13-A channel.
Flow cytometry analysis of whole blood stained with PE-Cy7 anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora spectral flow cytometer in the PE-Cy7 specific B13-A channel.
Flow cytometry analysis of whole blood stained with PE-Cy7 anti-human CD4 *SK3* conjugate. The fluorescence signal was monitored using an Aurora spectral flow cytometer in the PE-Cy7 specific B13-A channel.
Ordering information
Catalog Number
Unit Size
Add to cart
Additional ordering information
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Molecular weightN/A
Spectral properties
Extinction coefficient (cm -1 M -1)1960000
Excitation (nm)565
Emission (nm)778
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageRefrigerated (2-8 °C); Minimize light exposure
Related products
ReadiUse™ Preactivated APC-iFluor® 700 Tandem
ReadiUse™ Preactivated APC-iFluor® 750 Tandem
ReadiUse™ Preactivated PE-iFluor® 647 Tandem
ReadiUse™ Preactivated PE-iFluor® 750 Tandem
ReadiUse™ ABTS Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ TMB Substrate Solution *Optimized for ELISA Assays with HRP Conjugates*
ReadiUse™ hydrogen peroxide solution *50 mM calibrated and stabilized solution*
ReadiUse™ Preactivated HRP NHS ester
ReadiUse™ NADPH Regenerating Kit
ReadiUse™ NADP Regenerating Kit
ReadiUse™ TCA Deproteinization Sample Preparation Kit
ReadiUse™ microscope mounting solution
ReadiUse™ 4% formaldehyde fixation solution
ReadiUse™ mammalian cell lysis buffer *5X*
ReadiUse™ probenecid, sodium salt *Water-soluble*
ReadiUse™ probenecid *25 mM stabilized aqueous solution*
ReadiUse™ CFSE [5-(and 6)-Carboxyfluorescein diacetate, succinimidyl ester] *CAS 150347-59-4*
ReadiUse™ Preactivated PE
ReadiUse™ Preactivated APC
ReadiUse™ Preactivated PE-Cy5 Tandem
ReadiUse™ Preactivated PE-Cy5.5 Tandem
ReadiUse™ Preactivated PE-Texas Red Tandem
ReadiUse™ Preactivated APC-Cy5.5 Tandem
ReadiUse™ Preactivated APC-Cy7 Tandem
ReadiUse™ TCEP removal solution
ReadiUse™ WST-8 *50 mM aqueous solution*
ReadiUse™ Rapid Luminometric ATP Assay Kit
ReadiUse™ PE [R-Phycoerythrin] *Ammonium Sulfate-Free*
ReadiUse™ CL-APC [Cross linked-Allophycocyanin] *Ammonium Sulfate-Free*
ReadiUse™ Preactivated PE-iFluor® 594 Tandem
ReadiUse™ Cell Detaching Buffer
ReadiUse™ DRAQ5 Staining Solution *5 mM in Water*
ReadiUse™ Staurosporine * 1 mM DMSO stock solution*
ReadiUse™ Bio-Gel P-6 spin column
ReadiUse™ bacterial cell lysis buffer *5X*
ReadiUse™ 10% Triton X-100 *Hydrogen Peroxide-and Carbonyl-Free*
ReadiUse™ Preactivated PE-iFluor® 700 Tandem
ReadiUse™ dNTP Mix *10 mM*
ReadiUse™ Viral RNA Lysis Buffer
ReadiUse™ Tyramide (TSA)/Styramide (PSA) Optimized Reaction Buffer
ReadiUse™ Preactivated PerCP
ReadiUse™ Preactivated PerCP-Cy5.5 Tandem
ReadiUse™ Preactivated PE-iFluor® 660 Tandem
ReadiUse™ 10KD Spin Filter
ReadiUse™ Preactivated APC-iFluor® 800 Tandem
ReadiUse™ 1 Kb Plus DNA Ladder
ReadiUse™ GeneRuler 1 kb DNA Ladder
ReadiUse™ 100 bp DNA Ladder
ReadiUse™ ddNTP Terminator Mix *10 mM*
ReadiUse™ dNTP Mix Set *10 mM PCR Grade*
ReadiUse™ Preactivated HRP maleimide
ReadiUse™ Stayright™ Purple *HRP Chromogen Premixed with Hydrogen Peroxide*
ReadiUse™ Disposable PD-10 Desalting Column
ReadiUse™ Preactivated APC Maleimide [Activated Allophycocyanin]
ReadiUse™ Preactivated PE Maleimide [Activated R-Phycoerythrin]
ReadiUse™ 6-Color Human TBNK Antibody Kit *Dry Reagent Format*
ReadiUse™ MTS Reagent *5 mM aqueous solution*
ReadiUse™ Preactivated PE-Texas Red Maleimide
ReadiUse™ Preactivated PE-Cy5.5 Maleimide
ReadiUse™ Preactivated APC-AF700 Maleimide
ReadiUse™ Preactivated APC-Cy5.5 Maleimide
ReadiUse™ Preactivated PerCP Maleimide
ReadiUse™ Preactivated PerCP-Cy5.5 Maleimide
ReadiUse™ PCR Reaction Buffer
ReadiUse™ Universal Kinase Reaction Stopping Buffer
ReadiUse™ Yeast Cell Lysis Buffer *5X*
ReadiUse™ ATP Reference Standard *10 mM Aqueous Solution*
Show More (57)


See also: PE and APC
Molecular weight
Extinction coefficient (cm -1 M -1)
Excitation (nm)
Emission (nm)
PE-Cy7 is a popular tandem color used in flow cytometry. Its primary absorption peak is at 565 nm with emission peak at ~780 nm. AAT Bioquest offers this preactivated PE-Cy7 maleimide to facilitate the PE-Cy7 tandem conjugations to antibodies and other proteins such as streptavidin and other secondary reagents. It is prepared from the commonly used crosslinker SMCC. Our preactivated PE-Cy7 maleimide is ready to conjugate the reduced antibodies and other thiol-containing biomolecules.

Example protocol


Reduction of IgG
  1. Prepare a fresh solution of 1.0 M DTT (15.4 mg/100 µL) in distilled water.  Antibody solutions should be at 2 mg/mL or higher for best results. The reduction can be carried out in different buffers for example: MES, phosphate, and TRIS buffers (pH range 6 to 8). The antibody should be concentrated if less than 2 mg/mL.
  2. Add 2 µL of 1.0 M DTT stock per 100 µL of antibody solution and mix well. Let the antibody solution stand at room temp for 30 minutes without additional mixing (to minimize reoxidation of cysteines to cystines).
  3. Purify the reduced antibody over a desalting column pre-equilibrated with 50 mM MES Buffer (pH=6.0-6.5) with 2 mM EDTA. (Desalting column:  https://www.aatbio.com/products/readiuse-bio-gel-p-6-spin-column?unit=60500)
  4. Measure the Antibody concentration with Nanodrop. (Con. (mg/ml)= A280nm/1.4) Note: The reduced antibody is not stable; the conjugation reaction needs to be carried out the conjugation as soon as possible after purification.

Conjugate with ReadiUse™ Preactivated PE-Cy7 Maleimide
  1. Reconstitute ReadiUse™ Preactivated PE-Cy7 Maleimide in 100 µL ddH2O to 10 mg/mL. Note: Reconstituted ReadiUse™ Preactivated PE-Cy7 Maleimide are stable at 4 °C for one week, please kept it from light.
  2. Add reduced antibody to pre-activated PE-Cy7 directly to at the ratio of 250-300 µg PE-Cy7 /100 µg reduced antibody.
  3. Rotate the mixture for 60-120 mins at room temperature.
  4. After 60 minutes, block the free sulfhydryls on the antibody.
  5. Prepare a fresh solution of 10 mg/mL NEM in DMSO; add 3.4 µL per mg of antibody and rotate for 20 minutes at room temperature.

  1. Antibody/PE-Cy7 conjugate could be further purified through size exclusion chromatography to get best performance. Note: The Antibody/PE-Cy7 conjugate solution is recommended to be stored at 2~8 °C and kept from light.


Open in Advanced Spectrum Viewer

Spectral properties

Extinction coefficient (cm -1 M -1)1960000
Excitation (nm)565
Emission (nm)778

Product Family

NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)
ReadiUse™ Preactivated PE-Cy7 Tandem5657781960000
ReadiUse™ Preactivated PE-Cy5 Maleimide5656661960000
ReadiUse™ Preactivated APC-Cy7 Maleimide651779700000
ReadiUse™ Preactivated PerCP-Cy7 Maleimide757783350000
