Physical properties

Solvent

Water

Spectral properties

Excitation (nm)	526
Emission (nm)	543

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure

Overview SDS Protocol

Platform

qPCR

Recommended plate	PCR Microplate
Instrument specification(s)	VIC Filter

Example protocol

SAMPLE EXPERIMENTAL PROTOCOL

This generic protocol is suitable for the ABI7500 FAST qPCR instrument. For complete instructions on use, refer to the maintenance guide for your instrument.

Prepare a VIC calibration plate:

Prepare a VIC Dye qPCR Calibration working solution by mixing 1 µL of the 10,000X VIC Dye qPCR Calibration Solution with 10 mL of nuclease-free water or qPCR buffer.

Note: The final dye concentration must be optimized based on the calibration requirements for your instrument. Refer to the manufacturer’s maintenance guide for detailed instructions.
Add 20 µL of the VIC Dye qPCR Calibration working solution to all wells of a reaction plate.

Note: The volume may vary depending on your instrument. Refer to the manufacturer’s maintenance guide for detailed instructions.
Seal the plate with an optical adhesive cover.
Centrifuge the plate for 2 minutes at < 1500 rpm.
Check that the liquid in each well of the plate is at the bottom of the well. If not, centrifuge the plate again at a slightly higher rpm and for a longer period of time.
For complete calibration instructions, refer to the maintenance guide for your instrument.

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Excitation (nm)	526
Emission (nm)	543

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)
VIC Dye qPCR Calibration Plate Optimized for ABI7500 Fast 96-Well	526	543	-
NED Dye qPCR Calibration Solution 10,000X	545	567	74000¹
FAM Dye qPCR Calibration Solution 10,000X	493	517	83000
Cy5 Dye qPCR Calibration Solution 10,000X	651	670	250000¹
ROX Dye qPCR Calibration Solution 10,000X	578	595	-
SYBR Dye qPCR Calibration Solution 10,000X	498	522	-
TAMRA Dye qPCR Calibration Solution 10,000X	552	578	90000
ABY Dye qPCR Calibration Solution 10,000X	559	570	120000¹
JUN Dye qPCR Calibration Solution 10,000X	610	628	110000¹
MP650 Dye qPCR Calibration Solution 10,000X	639	653	250000¹
Show More (1)

Images

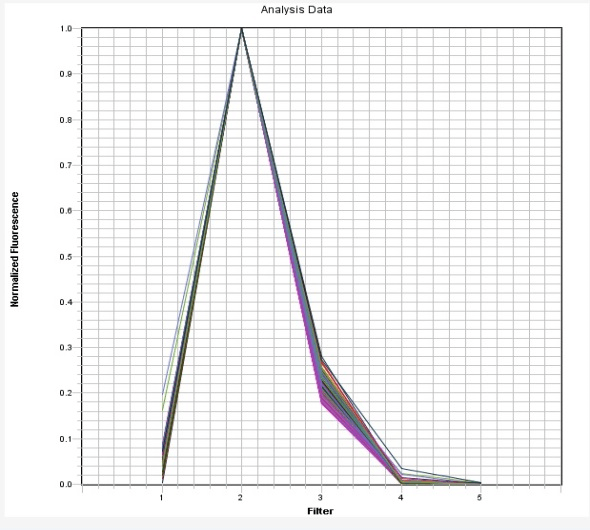

Figure 1. ABI 7500 FAST system VIC dye spectrum.
