AAT Bioquest

XFD514 tyramide

Product Image
Product Image
Gallery Image 1
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Molecular weight938.17
SolventDMSO
Spectral properties
Correction Factor (260 nm)0.31
Correction Factor (280 nm)0.18
Extinction coefficient (cm -1 M -1)80000
Excitation (nm)518
Emission (nm)543
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12171501
Related products
XFD488 azide *Same Structure to Alexa Fluor™ 488 azide*
XFD488 alkyne *Same Structure to Alexa Fluor™ 488 alkyne*
XFD488 NHS Ester *Same Structure to Alexa Fluor™ 488 NHS Ester*
XFD488 C5 Maleimide *Same Structure to Alexa Fluor™ 488 C5 Maleimide*
XFD350 NHS Ester *Same Structure to Alexa Fluor™ 350 NHS Ester*
XFD532 NHS Ester *Same Structure to Alexa Fluor™ 532 NHS Ester*
XFD594 NHS Ester *Same Structure to Alexa Fluor™ 594 NHS Ester*
XFD350 C5 Maleimide *Same Structure to Alexa Fluor™ 350 C5 Maleimide*
XFD532 C5 Maleimide *Same Structure to Alexa Fluor™ 532 C5 Maleimide*
XFD594 C5 Maleimide *Same Structure to Alexa Fluor™ 594 C5 Maleimide*
XFD488 Hydroxylamine *Same Structure to Alexa Fluor™ 488 Hydroxylamine*
XFD350 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD594 Same Structure to Alexa Fluor™ 594*
XFD350 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD594 Same Structure to Alexa Fluor™ 594*
XFD488 amine *Same Structure to Alexa Fluor™ 488 amine*
XFD594 amine *Same Structure to Alexa Fluor™ 594 amine*
XFD350-streptavidin conjugate *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488-streptavidin conjugate *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594-streptavidin conjugate *XFD594 Same Structure to Alexa Fluor™ 594*
XFD350 Phalloidin *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 Phalloidin *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 Phalloidin *XFD594 Same Structure to Alexa Fluor™ 594*
XFD532 acid *Same Structure to Alexa Fluor™ 532 acid*
XFD488 acid *Same Structure to Alexa Fluor™ 488 acid*
XFD488 tyramide reagent *Same Structure to Alexa Fluor™ 488 tyramide*
XFD546 tyramide reagent *Same Structure to Alexa Fluor™ 546 tyramide*
XFD594 tyramide reagent *Same Structure to Alexa Fluor™ 594 tyramide*
XFD488 NHS Ester-UltraPure Grade *XFD488 Same Structure to Alexa Fluor™ 488*
XFD555 NHS Ester *Same Structure to Alexa Fluor™ 555 NHS Ester*
XFD647 NHS Ester *Same Structure to Alexa Fluor™ 647 NHS Ester*
XFD680 NHS Ester *Same Structure to Alexa Fluor™ 680 NHS Ester*
XFD700 NHS Ester *Same Structure to Alexa Fluor™ 700 NHS Ester*
XFD750 NHS Ester *Same Structure to Alexa Fluor™ 750 NHS Ester*
XFD647 C2 Maleimide *Same Structure to Alexa Fluor™ 647 C2 Maleimide*
XFD546 NHS Ester *Same Structure to Alexa Fluor™ 546 NHS Ester*
XFD568 NHS Ester *Same Structure to Alexa Fluor™ 568 NHS Ester*
XFD350 tyramide reagent *Same Structure to Alexa Fluor™ 350 tyramide*
XFD568 tyramide reagent *Same Structure to Alexa Fluor™ 568 tyramide*
XFD350 acid *Same Structure to Alexa Fluor™ 350 acid*
XFD546 acid *Same Structure to Alexa Fluor™ 546 acid*
XFD568 acid *Same Structure to Alexa Fluor™ 568 acid*
XFD488 tetrazine *Same Structure to Alexa Fluor™ 488 tetrazine*
XFD488 aldehyde *Same Structure to Alexa Fluor™ 488 aldehyde*
XFD™488-dUTP *1 mM in Tris Buffer (pH 7.5)*
XFD514 NHS Ester *Same Structure to Alexa Fluor™ 514 NHS Ester*
XFD647 Azide
XFD647 Alkyne
XFD488 TCO
XFD532 amine
XFD555 amine
XFD568 amine
XFD647 amine
XFD750 amine
XFD555 acid
XFD647 acid
XFD750 acid
XFD700 acid
XFD647 Phalloidin *equivalent to Alexa Fluor® 647 phalloidin*
XFD405 NHS Ester [equivalent to Alexa Fluor™ 405 NHS Ester]
Show More (52)

OverviewpdfSDSpdfProtocol


Molecular weight
938.17
Correction Factor (260 nm)
0.31
Correction Factor (280 nm)
0.18
Extinction coefficient (cm -1 M -1)
80000
Excitation (nm)
518
Emission (nm)
543
Tyramide signal amplification (TSA) has proven to be a particularly versatile and powerful enzyme amplification technique with improved assay sensitivity. TSA is based on the ability of HRP, in the presence of low concentrations of hydrogen peroxide, to convert labeled tyramine-containing substrate into an oxidized, highly reactive free radical that can covalently bind to tyrosine residues at or near the HRP. The signal amplification conferred by the turnover of multiple tyramide substrates per peroxidase label translates ultrasensitive detection of low-abundance targets and the use of smaller amounts of antibodies and hybridization probes. In immunohistochemical applications, sensitivity enhancements derived from TSA method allow primary antibody dilutions to be increased to reduce nonspecific background signals, and can overcome weak immunolabeling caused by suboptimal fixation procedures or low levels of target expression. XFD 514 tyramide contains the Alexa Fluor® 514 fluorophore that can be readily detected with the standard rhodamine 6G filter set (Alexa Fluor® is the trademark of ThermoFisher). XFD 514 tyramide has intense green-yellow fluorescence color.

Platform


Fluorescence microscope

ExcitationFITC filter set
EmissionFITC filter set
Recommended plateBlack wall/clear bottom

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of XFD514 tyramide to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM106.59 µL532.952 µL1.066 mL5.33 mL10.659 mL
5 mM21.318 µL106.59 µL213.181 µL1.066 mL2.132 mL
10 mM10.659 µL53.295 µL106.59 µL532.952 µL1.066 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

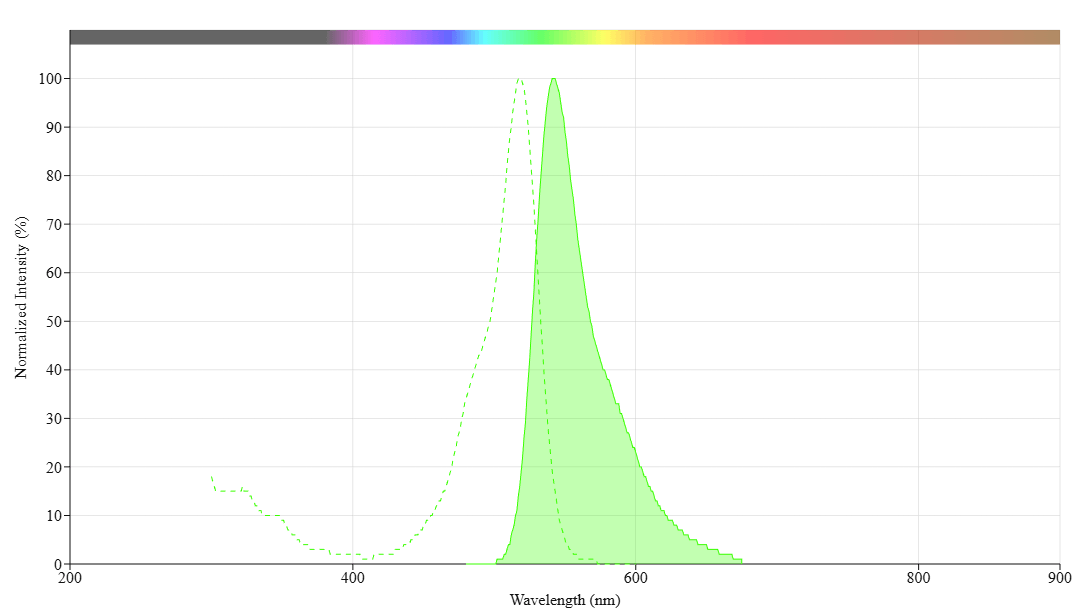

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Correction Factor (260 nm)0.31
Correction Factor (280 nm)0.18
Extinction coefficient (cm -1 M -1)80000
Excitation (nm)518
Emission (nm)543

Product Family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Quantum yieldCorrection Factor (260 nm)Correction Factor (280 nm)
XFD514 acid51854380000-0.310.18
XFD532 tyramide534553810000.6110.240.09
Cy3 tyramide55556915000010.1510.070.073
Cy5 tyramide65167025000010.271, 0.420.020.03
Cy7 tyramide7567792500000.30.050.036
Fluorescein Tyramide4985178000010.79001, 0.9520.320.35

Images


References


View all 12 references: Citation Explorer
Immunohistochemical Detection of 5-Hydroxymethylcytosine and 5-Carboxylcytosine in Sections of Zebrafish Embryos.
Authors: Jessop, Peter and Gering, Martin
Journal: Methods in molecular biology (Clifton, N.J.) (2021): 193-208
Ultrastructure of light-activated axons following optogenetic stimulation to produce late-phase long-term potentiation.
Authors: Kuwajima, Masaaki and Ostrovskaya, Olga I and Cao, Guan and Weisberg, Seth A and Harris, Kristen M and Zemelman, Boris V
Journal: PloS one (2020): e0226797
Intensive Immunofluorescence Staining Methods for Low Expression Protein: Detection of Intestinal Stem Cell Marker LGR5.
Authors: Yamazaki, Masaki and Kato, Atsuhiko and Zaitsu, Yoko and Watanabe, Takeshi and Iimori, Makoto and Funahashi, Shinichi and Kitao, Hiroyuki and Saeki, Hiroshi and Oki, Eiji and Suzuki, Masami
Journal: Acta histochemica et cytochemica (2015): 159-64
Tyramide signal amplification for analysis of kinase activity by intracellular flow cytometry.
Authors: Clutter, Matthew R and Heffner, Garrett C and Krutzik, Peter O and Sachen, Kacey L and Nolan, Garry P
Journal: Cytometry. Part A : the journal of the International Society for Analytical Cytology (2010): 1020-31
Methoxychlor and estradiol induce oxidative stress DNA damage in the mouse ovarian surface epithelium.
Authors: Symonds, Daniel A and Merchenthaler, Istvan and Flaws, Jodi A
Journal: Toxicological sciences : an official journal of the Society of Toxicology (2008): 182-7
Genotyping of phenotypically defined cells in neoplasia: enhanced immunoFISH via tyramide signal amplification (TSA) segregates immunophenotypically-defined cell populations for gated genotyping.
Authors: Tubbs, Raymond R and Das, Kingshuk and Cook, James R and Pettay, James D and Roche, Patrick C and Grogan, Thomas
Journal: Journal of molecular histology (2007): 129-34
A CARD-FISH protocol for the identification and enumeration of epiphytic bacteria on marine algae.
Authors: Tujula, Niina A and Holmström, Carola and Mussmann, Marc and Amann, Rudolf and Kjelleberg, Staffan and Crocetti, Gregory R
Journal: Journal of microbiological methods (2006): 604-7
Novel oxidative self-anchoring fluorescent substrates for the histochemical localization of endogenous and immunobound peroxidase activity.
Authors: Krieg, Reimar and Halbhuber, Karl-Jürgen
Journal: Journal of molecular histology (2004): 471-87
Simultaneous discrimination between 15 fish pathogens by using 16S ribosomal DNA PCR and DNA microarrays.
Authors: Warsen, Adelaide E and Krug, Melissa J and LaFrentz, Stacey and Stanek, Danielle R and Loge, Frank J and Call, Douglas R
Journal: Applied and environmental microbiology (2004): 4216-21
Detection of pathogenic Vibrio spp. in shellfish by using multiplex PCR and DNA microarrays.
Authors: Panicker, Gitika and Call, Douglas R and Krug, Melissa J and Bej, Asim K
Journal: Applied and environmental microbiology (2004): 7436-44
