XFD514 NHS Ester *Same Structure to Alexa Fluor™ 514 NHS Ester*
Ordering information
| Price | |
| Catalog Number | |
| Unit Size | |
| Quantity |
Additional ordering information
| Telephone | 1-800-990-8053 |
| Fax | 1-800-609-2943 |
| sales@aatbio.com | |
| International | See distributors |
| Bulk request | Inquire |
| Custom size | Inquire |
| Shipping | Standard overnight for United States, inquire for international |
Physical properties
| Molecular weight | 916.07 |
| Solvent | DMSO |
Spectral properties
| Correction Factor (260 nm) | 0.31 |
| Correction Factor (280 nm) | 0.18 |
| Extinction coefficient (cm -1 M -1) | 80000 |
| Excitation (nm) | 518 |
| Emission (nm) | 543 |
Storage, safety and handling
| H-phrase | H303, H313, H333 |
| Hazard symbol | XN |
| Intended use | Research Use Only (RUO) |
| R-phrase | R20, R21, R22 |
| Storage | Freeze (< -15 °C); Minimize light exposure |
| UNSPSC | 12171501 |
Related products
| Overview |  SDSProtocol |
See also: Amine Reactive Dyes and Probes for Conjugation, Antibody and Protein Labeling, Wide Field (WF) Fluorescent Microscopy
Molecular weight 916.07 | Correction Factor (260 nm) 0.31 | Correction Factor (280 nm) 0.18 | Extinction coefficient (cm -1 M -1) 80000 | Excitation (nm) 518 | Emission (nm) 543 |

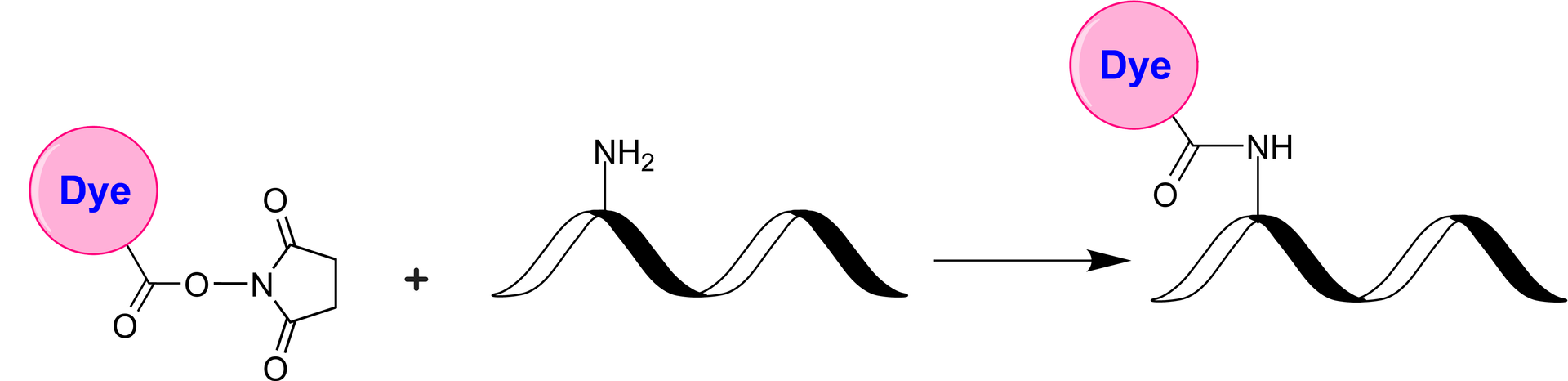

XFD514 NHS ester is manufactured by AAT Bioquest, and it has the same chemical structure to Alexa Fluor® 514 NHS ester (Alexa Fluor® is the trademark of ThermoFisher). It is a bright yellow-fluorescent dye that can be used to replace rhodamine 6G with dramatically improved water solubility. XFD514 dye is water soluble and pH-insensitive from pH 4 to pH 10. The NHS ester (or succinimidyl ester) of XFD514 is the most convenient amine-reactive form for conjugating Alexa Fluor® 514 to a protein or antibody.
Calculators
Common stock solution preparation
Table 1. Volume of DMSO needed to reconstitute specific mass of XFD514 NHS Ester *Same Structure to Alexa Fluor™ 514 NHS Ester* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.
| 0.1 mg | 0.5 mg | 1 mg | 5 mg | 10 mg | |
| 1 mM | 109.162 µL | 545.81 µL | 1.092 mL | 5.458 mL | 10.916 mL |
| 5 mM | 21.832 µL | 109.162 µL | 218.324 µL | 1.092 mL | 2.183 mL |
| 10 mM | 10.916 µL | 54.581 µL | 109.162 µL | 545.81 µL | 1.092 mL |
Molarity calculator
Enter any two values (mass, volume, concentration) to calculate the third.
| Mass (Calculate) | Molecular weight | Volume (Calculate) | Concentration (Calculate) | Moles | ||||
| / | = | x | = |
Spectrum
Open in Advanced Spectrum Viewer
Spectral properties
| Correction Factor (260 nm) | 0.31 |
| Correction Factor (280 nm) | 0.18 |
| Extinction coefficient (cm -1 M -1) | 80000 |
| Excitation (nm) | 518 |
| Emission (nm) | 543 |
Product Family
| Name | Excitation (nm) | Emission (nm) | Extinction coefficient (cm -1 M -1) | Quantum yield | Correction Factor (260 nm) | Correction Factor (280 nm) |
| XFD488 NHS Ester *Same Structure to Alexa Fluor™ 488 NHS Ester* | 499 | 520 | 71000 | 0.921 | 0.30 | 0.11 |
| XFD350 NHS Ester *Same Structure to Alexa Fluor™ 350 NHS Ester* | 343 | 441 | 19000 | - | 0.25 | 0.19 |
| XFD532 NHS Ester *Same Structure to Alexa Fluor™ 532 NHS Ester* | 534 | 553 | 81000 | 0.611 | 0.24 | 0.09 |
| XFD594 NHS Ester *Same Structure to Alexa Fluor™ 594 NHS Ester* | 590 | 618 | 90000 | 0.661 | 0.43 | 0.56 |
| XFD555 NHS Ester *Same Structure to Alexa Fluor™ 555 NHS Ester* | 553 | 568 | 150000 | 0.11 | 0.08 | 0.08 |
| XFD647 NHS Ester *Same Structure to Alexa Fluor™ 647 NHS Ester* | 650 | 671 | 239000 | 0.331 | 0.00 | 0.03 |
| XFD680 NHS Ester *Same Structure to Alexa Fluor™ 680 NHS Ester* | 681 | 704 | 184000 | 0.361 | 0.00 | 0.05 |
| XFD700 NHS Ester *Same Structure to Alexa Fluor™ 700 NHS Ester* | 696 | 719 | 192000 | 0.251 | 0.00 | 0.07 |
| XFD750 NHS Ester *Same Structure to Alexa Fluor™ 750 NHS Ester* | 752 | 776 | 240000 | 0.121 | 0.00 | 0.04 |
Show More (10) | ||||||
Images
Figure 1. Chemical structure for XFD 514 NHS ester.
