Amplite® Fluorimetric NADPH Assay Kit *Red Fluorescence*

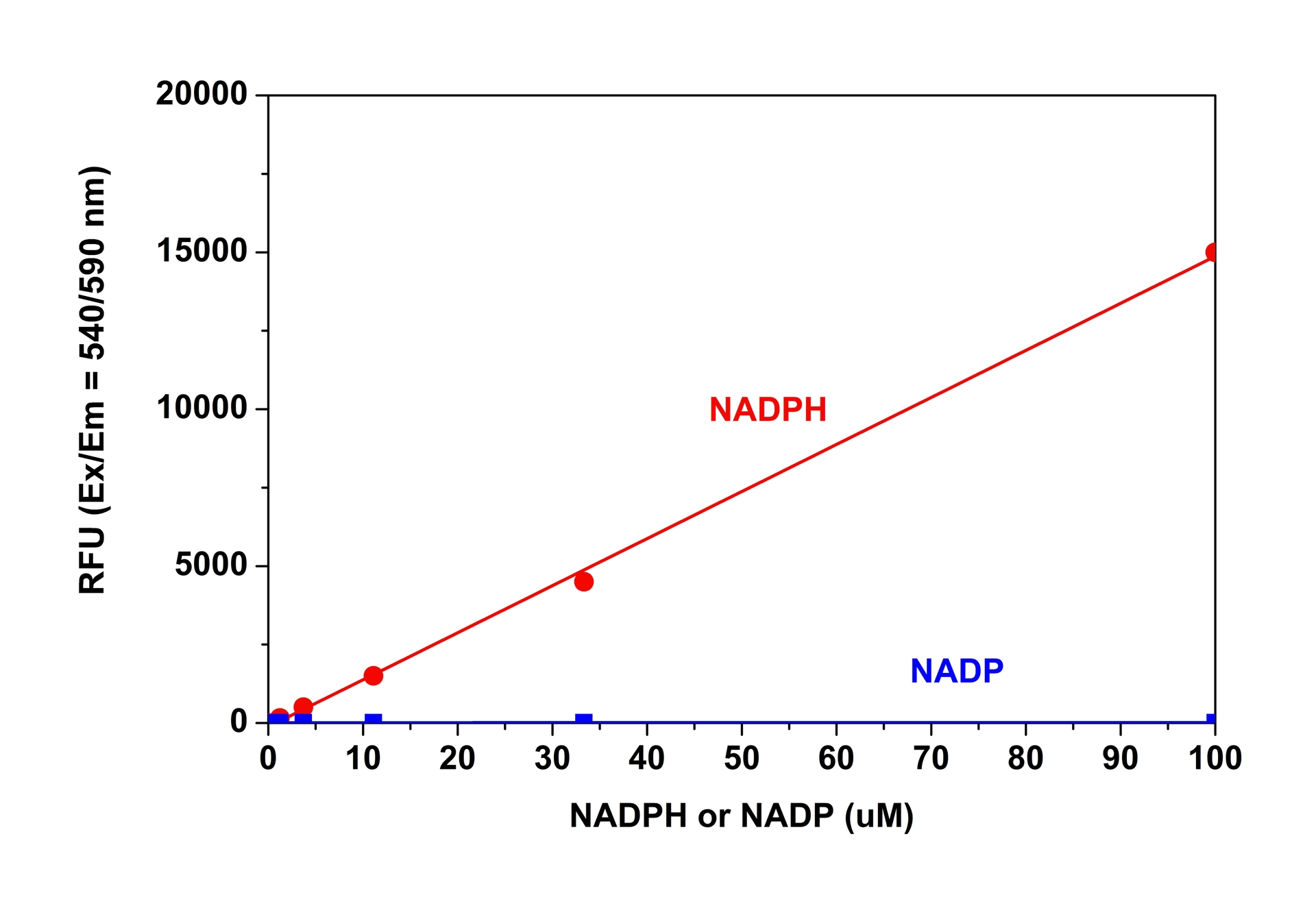

NADPH dose response was measured with Amplite® Fluorimetric NADPH Assay Kit in a 96-well solid black plate using a NOVOStar microplate reader (BMG Labtech). RFU measured over Ex/Em = 540/590 nm.
NADPH dose response was measured with Amplite® Fluorimetric NADPH Assay Kit in a 96-well solid black plate using a NOVOStar microplate reader (BMG Labtech). RFU measured over Ex/Em = 540/590 nm.
Ordering information
Price ()
Catalog Number15262
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
UNSPSC12352200

OverviewpdfSDSpdfProtocol


Nicotinamide adenine dinucleotide (NAD+) and nicotinamide adenine dinucleotide phosphate (NADP+) are two important cofactors found in cells. NADH is the reduced form of NAD+, and NAD+ is the oxidized form of NADH. It forms NADP with the addition of a phosphate group to the 2' position of the adenyl nucleotide through an ester linkage. NADP is used in anabolic biological reactions, such as fatty acid and nucleic acid synthesis, which require NADPH as a reducing agent. In chloroplasts, NADP is an oxidizing agent important in the preliminary reactions of photosynthesis. The NADPH produced by photosynthesis is then used as reducing power for the biosynthetic reactions in the Calvin cycle of photosynthesis. The traditional NAD/NADH and NADP/NADPH assays are done by monitoring of NADH or NADPH absorption at 340 nm. This method suffers low sensitivity and high interference since the assay is done in the UV range that requires expensive quartz microplate. This Amplite® NADPH Assay Kit provides a convenient method for sensitive detection of NADPH. The enzymes in the system specifically recognize NADPH in an enzyme cycling reaction. The enzyme cycling reaction significantly increases detection sensitivity.

Platform


Fluorescence microplate reader

Excitation540 nm
Emission590 nm
Recommended plateSolid black

Components


Component A: NADPH Recycling Enzyme Mixture2 bottles (lyophilized powder)
Component B: NADPH Assay Buffer1 bottle (20 mL)
Component C: NADPH Standard1 vial (167 µg)

Example protocol


AT A GLANCE

Protocol summary

  1. Prepare NADPH working solution (50 µL)
  2. Add NADPH standards or test samples (50 µL)
  3. Incubate at room temperature for 15 minutes - 2 hours
  4. Monitor fluorescence increase at Ex/Em = 540/590 nm

Important notes
Thaw one of each kit component at room temperature before starting the experiment.

PREPARATION OF STOCK SOLUTION

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

1. NADPH standard solution (1 mM):
Add 200 µL of PBS buffer into the vial of NADPH standard (Component C) to make 1 mM (1 nmol/µL) NADPH stock solution.

PREPARATION OF STANDARD SOLUTION

NADPH standard

For convenience, use the Serial Dilution Planner: https://www.aatbio.com/tools/serial-dilution/15262

Use NADPH standard solution and PBS buffer (pH 7.4) to generate 100 µM (100 pmol/µL) NADPH standard solution (NS7). Then use 100 µM NADPH standard solution to perform 1:3 serial dilutions to get remaining serial dilutions of NADPH standard (NS6 - NS1). Note: Diluted NADPH standard solution is unstable, and should be used within 4 hours.

PREPARATION OF WORKING SOLUTION

Add 10 mL of Amplite™ NADPH Assay Buffer (Component B) into the bottle of NADPH Recycling Enzyme Mixture (Component A); mix well. Note: This NADPH working solution is enough for two 96-well plates. The working solution is not stable, use it promptly and avoid direct exposure to light.

SAMPLE EXPERIMENTAL PROTOCOL

Table 1. Layout of NADPH standards and test samples in a solid black 96-well microplate. NS = NADPH standard (NS1 - NS7, 0.1 to 100 µM); BL = blank control; TS = test sample.

BL BL TS TS
NS1 NS1 ... ...
NS2 NS2 ... ...
NS3 NS3
NS4 NS4
NS5 NS5
NS6 NS6
NS7 NS7

Table 2. Reagent composition for each well

Well Volume Reagent
NS1 - NS7 50 µL Serial Dilution (0.1 to 100 µM)
BL 50 µL PBS
TS 50 µL Test Sample
  1. Prepare NADPH standards (NS), blank controls (BL), and test samples (TS) into a solid black 96-well microplate according to the layout provided in Table 1 and Table 2. For a 384-well plate, use 25 µL of reagent per well instead of 50 µL. Prepare cells or tissue samples as desired.

  2. Add 50 µL of NADPH working solution to each well of NADPH standard, blank control, and test samples to make the total NADPH assay volume of 100 µL/well. For a 384-well plate, use 25 µL of working solution into each well instead, for a total volume of 50 µL/well.

  3. Incubate the reaction at room temperature for 15 minutes to 2 hours, protected from light.

  4. Monitor the fluorescence increase with a fluorescence plate reader at Excitation = 530 - 570 nm, Emission = 590 - 600 nm (optimal Ex/Em = 540/590 nm). Note: The contents of the plate can also be transferred to a white clear bottom plate and read by absorbance microplate reader at the wavelength of 576 ± 5 nm. However, the absorption detection will have a lower sensitivity compared to fluorescence reading. For cell based NADPH measurements, ReadiUse™ mammalian cell lysis buffer *5X* (Cat No. 20012) is recommended to use for lysing the cells.
