AAT Bioquest

XFD633 TCO

Product key features

  • Ex/Em: 632/650 nm
  • Extinction Coefficient: 159,000 cm-1M-1
  • Reactive Group: TCO
  • Click Chemistry Conjugation: Provides rapid and copper-free labeling of tetrazine-modified biomolecules
  • Advanced Dye Properties: Excellent water solubility and structural match to Alexa Fluor™ 633
  • Robust Signal Performance: Maintains high intensity and pH independence (pH 4-11) with exceptional photostability

Product description

XFD633, manufactured by AAT Bioquest, is a bright red-fluorescent dye structurally identical to Alexa Fluor™ 633 (ThermoFisher). It is characterized by its intense brightness, high fluorescence quantum yield and photostability. The dye demonstrates excellent solubility in aqueous solutions and retains pH-independent fluorescence over a broad range (pH 4–11), ensuring consistent performance across diverse experimental conditions. Optimally excited by the 633 nm emission line of He-Ne lasers or the 635 nm diode laser, XFD633 is particularly well-suited for flow cytometry. Its robust and uniform labeling properties yield high signal intensity and reproducibility, making it an ideal choice for advanced fluorescence imaging, flow cytometry, and various fluorescence-based analytical techniques.

XFD633 TCO is particularly useful for labeling tetrazine-modified biomolecules under copper-free conditions. It reacts with tetrazine-functionalized molecules, forming a stable conjugate via a dihydropyrazine moiety. This click reaction is favored over others due to its extremely fast kinetics and higher yields under mild reaction conditions, making it a popular choice for researchers.

Spectrum

Product family

NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Correction Factor (260 nm)Correction Factor (280 nm)
XFD350 TCO343441190000.250.19
XFD405 TCO40142135,0000.230.70
XFD430 TCO43254015,000-0.28
XFD488 TCO499520730000.30.11
XFD514 TCO518543800000.310.18
XFD532 TCO534553810000.240.09
XFD546 TCO5615721120000.210.12
XFD555 TCO5535681500000.080.08
XFD568 TCO579603913000.450.46
XFD594 TCO590618900000.430.56
XFD610 TCO611629144,0000.430.44
XFD633 acid632650159,000-0.55
XFD633 alkyne632650159,000-0.55
XFD633 amine632650159,000-0.55
XFD633 azide632650159,000-0.55
XFD633 Tetrazine632650159,000-0.55
XFD635 TCO633647140,000--
XFD647 TCO6506712390000.000.03
XFD660 TCO6636911320000.000.10
XFD680 TCO6817041840000.000.05
XFD700 TCO6967191920000.000.07
XFD750 TCO7527762400000.000.04
XFD790 TCO782805260,0000.090.08
Show More (14)
Page updated on May 19, 2025

Ordering information

Price
Unit size
Catalog Number70077
Quantity
Add to cart

Additional ordering information

Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
Technical SupportContact us
Purchase orderSend to sales@aatbio.com
ShippingStandard overnight for United States, inquire for international
Request quotation

Physical properties

Solvent

DMSO

Spectral properties

Correction Factor (280 nm)

0.55

Extinction coefficient (cm -1 M -1)

159,000

Excitation (nm)

632

Emission (nm)

650

Storage, safety and handling

H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22

Storage

Freeze (< -15 °C); Minimize light exposure
UNSPSC12171501

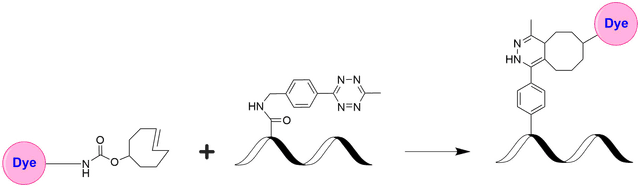

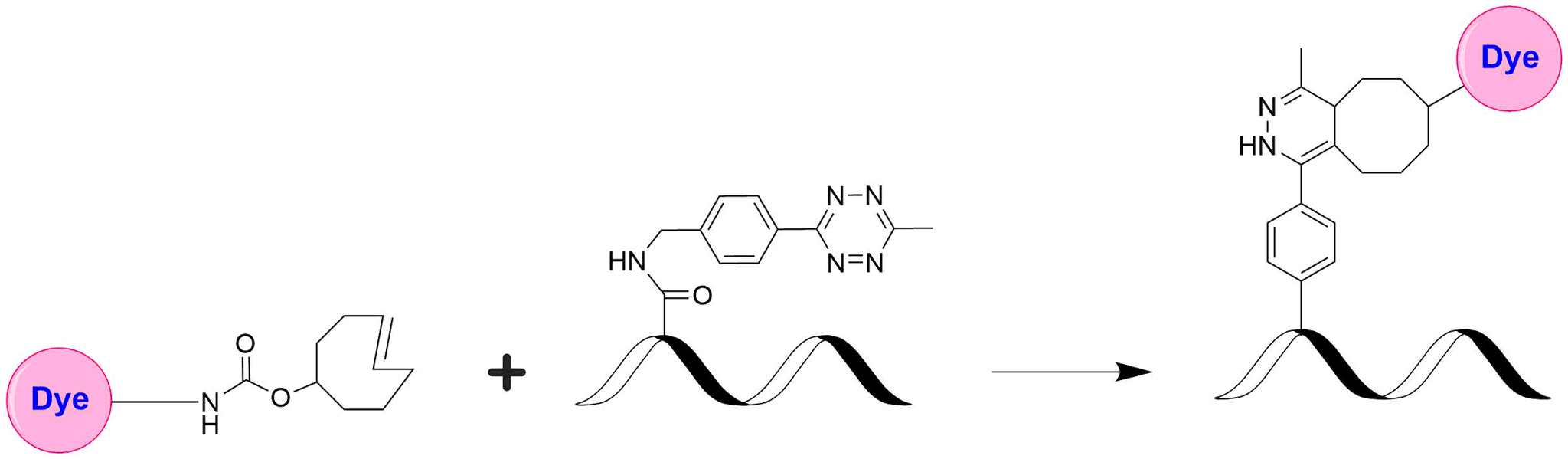

Schematic illustrating the strain‐promoted inverse‐electron‐demand Diels–Alder (iEDDA) reaction between a trans‐cyclooctene (TCO)–dye conjugate and a tetrazine‐modified biomolecule. The TCO–dye adduct selectively and rapidly couples with the tetrazine moiety on the biomolecule to form a stable linkage. This bioorthogonal “click chemistry” reaction is fast, selective, and well‐suited for biocompatible labeling applications.
Schematic illustrating the strain‐promoted inverse‐electron‐demand Diels–Alder (iEDDA) reaction between a trans‐cyclooctene (TCO)–dye conjugate and a tetrazine‐modified biomolecule. The TCO–dye adduct selectively and rapidly couples with the tetrazine moiety on the biomolecule to form a stable linkage. This bioorthogonal “click chemistry” reaction is fast, selective, and well‐suited for biocompatible labeling applications.
Schematic illustrating the strain‐promoted inverse‐electron‐demand Diels–Alder (iEDDA) reaction between a trans‐cyclooctene (TCO)–dye conjugate and a tetrazine‐modified biomolecule. The TCO–dye adduct selectively and rapidly couples with the tetrazine moiety on the biomolecule to form a stable linkage. This bioorthogonal “click chemistry” reaction is fast, selective, and well‐suited for biocompatible labeling applications.
