Cy2DIGE NHS ester

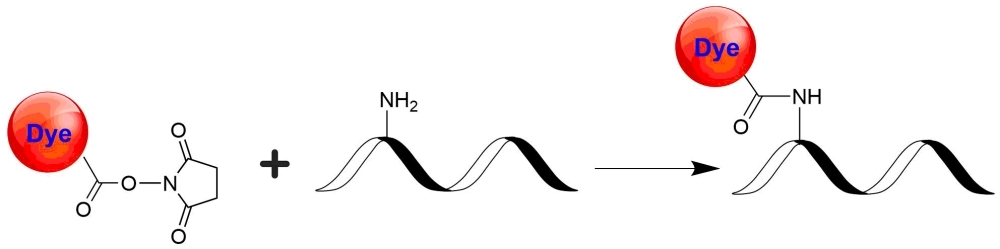

Cy2DIGE NHS ester, an equivalent of Cy2® NHS ester minimal dye, is used for labeling proteins subject to DIGE analysis. Cy2DIGE is commonly used as a reference color together with C3DIGE and/or Cy5DIGE.
Cy2DIGE NHS ester, an equivalent of Cy2® NHS ester minimal dye, is used for labeling proteins subject to DIGE analysis. Cy2DIGE is commonly used as a reference color together with C3DIGE and/or Cy5DIGE.
Cy2DIGE NHS ester, an equivalent of Cy2® NHS ester minimal dye, is used for labeling proteins subject to DIGE analysis. Cy2DIGE is commonly used as a reference color together with C3DIGE and/or Cy5DIGE.
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Molecular weight677.50
SolventDMSO
Spectral properties
Correction Factor (260 nm)0.08
Correction Factor (280 nm)0.15
Extinction coefficient (cm -1 M -1)150000
Excitation (nm)492
Emission (nm)508
Quantum yield0.120
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12171501

OverviewpdfSDSpdfProtocol


Molecular weight
677.50
Correction Factor (260 nm)
0.08
Correction Factor (280 nm)
0.15
Extinction coefficient (cm -1 M -1)
150000
Excitation (nm)
492
Emission (nm)
508
Quantum yield
0.120
Cy2DIGE NHS ester, an equivalent of Cy2® NHS ester minimal dye, is used for labeling proteins subject to DIGE analysis. Cy2DIGE is commonly used as a reference color together with C3DIGE and/or Cy5DIGE. Cy2DIGE, C3DIGE and Cy5DIGE are specially designed for precise comparison of protein expression in two or three samples of lysates. Perfect mobility matching and bright dye fluorescence allow the efficient detection and high resolution of minor proteins on 2D gel electrophoresis. Cy2DIGE, C3DIGE and Cy5DIGE are compatible to all imagers capable of detection of Cy2, Cy3, and Cy5 dyes. The gels labeled with Cy2DIGE, C3DIGE and Cy5DIGE are size- and charge-matched fluorescent dyes for detecting protein abundance differences in 2-D Fluorescence Difference Gel Electrophoresis (DIGE). Cy2DIGE, C3DIGE and Cy5DIGE detect up to three prelabeled protein samples and standards on the same 2-D electrophoresis gel. The size- and charge-matched dyes enable co-migration of labeled samples within the gel. They are bright on proteins, allowing the minimal loss of signal during labeling, separation, and scanning. These dyes have minimal spectral overlap, minimizing the crosstalk that commonly contributes to high background. Their pH-insensitive fluorescence allows DIGEs run at a broad pH range. Cy2®, Cy3® and Cy5® are the trademarks of GE Healthcare.

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of Cy2DIGE NHS ester to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM147.601 µL738.007 µL1.476 mL7.38 mL14.76 mL
5 mM29.52 µL147.601 µL295.203 µL1.476 mL2.952 mL
10 mM14.76 µL73.801 µL147.601 µL738.007 µL1.476 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Correction Factor (260 nm)0.08
Correction Factor (280 nm)0.15
Extinction coefficient (cm -1 M -1)150000
Excitation (nm)492
Emission (nm)508
Quantum yield0.120

Product Family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Quantum yieldCorrection Factor (260 nm)Correction Factor (280 nm)
XFD488 NHS Ester *Same Structure to Alexa Fluor™ 488 NHS Ester*499520710000.9210.300.11
XFD350 NHS Ester *Same Structure to Alexa Fluor™ 350 NHS Ester*34344119000-0.250.19
XFD532 NHS Ester *Same Structure to Alexa Fluor™ 532 NHS Ester*534553810000.6110.240.09
XFD594 NHS Ester *Same Structure to Alexa Fluor™ 594 NHS Ester*590618900000.6610.430.56
QXY21 NHS ester [equivalent to QSY-21 NHS ester]--890001--0.32
XFD555 NHS Ester *Same Structure to Alexa Fluor™ 555 NHS Ester*5535681500000.110.080.08
XFD647 NHS Ester *Same Structure to Alexa Fluor™ 647 NHS Ester*6506712390000.3310.000.03
XFD680 NHS Ester *Same Structure to Alexa Fluor™ 680 NHS Ester*6817041840000.3610.000.05
XFD700 NHS Ester *Same Structure to Alexa Fluor™ 700 NHS Ester*6967191920000.2510.000.07
XFD750 NHS Ester *Same Structure to Alexa Fluor™ 750 NHS Ester*7527762400000.1210.000.04
Cy5DIGE NHS ester65167025000010.271, 0.420.020.03
Cy3DIGE NHS ester55556915000010.1510.070.073
XFD546 NHS Ester *Same Structure to Alexa Fluor™ 546 NHS Ester*5615721120000.7910.210.12
XFD568 NHS Ester *Same Structure to Alexa Fluor™ 568 NHS Ester*579603913000.6910.450.46
XFD514 NHS Ester *Same Structure to Alexa Fluor™ 514 NHS Ester*51854380000-0.310.18
QXY7 NHS ester [equivalent to QSY-7 NHS ester]--900001--0.22
Cy3B NHS ester56057112000010.5810.0480.069
CypHer5E NHS Ester643660----
CypHer7E NHS Ester748769----
Show More (10)

Images


Citations


View all 34 citations: Citation Explorer
LncRNA AL592284. 1 facilitates proliferation and metastasis of cervical cancer cells via miR-30a-5p/Vimentin/EMT axis
Authors: Zhang, Jing and Liu, Hong-li and Liu, Jing-bo and Zhang, Yuan and Liu, Jing and Li, Yan-hua
Journal: Biochemical and Biophysical Research Communications (2021): 95--102
Early quantitative profiling of differential retinal protein expression in lens-induced myopia in guinea pig using fluorescence difference two-dimensional gel electrophoresis
Authors: Wu, Y., Lam, C. S., Tse, D. Y., To, C. H., Liu, Q., McFadden, S. A., Chun, R. K., Li, K. K., Bian, J., Lam, C.
Journal: Mol Med Rep (2018): 5571-5580
Proteomic Analysis of Bovine Pregnancy-specific Serum Proteins by 2D Fluorescence Difference Gel Electrophoresis
Authors: Lee, J. E., Lee, J. Y., Kim, H. R., Shin, H. Y., Lin, T., Jin, D. I.
Journal: Asian-Australas J Anim Sci (2015): 788-95
Comparative proteomic analysis of different Toxoplasma gondii genotypes by two-dimensional fluorescence difference gel electrophoresis combined with mass spectrometry
Authors: Zhou, D. H., Zhao, F. R., Nisbet, A. J., Xu, M. J., Song, H. Q., Lin, R. Q., Huang, S. Y., Zhu, X. Q.
Journal: Electrophoresis (2014): 533-45
Comparative proteomic analysis of Dan&apos;er malts produced from distinct malting processes by two-dimensional fluorescence difference in gel electrophoresis (2D-DIGE)
Authors: Li, X., Jin, Z., Gao, F., Lu, J., Cai, G., Dong, J., Yu, J., Yang, M.
Journal: J Agric Food Chem (2014): 9310-6
Proteomic analysis of the hippocampus in Alzheimer&apos;s disease model mice by using two-dimensional fluorescence difference in gel electrophoresis
Authors: Takano, M., Yamashita, T., Nagano, K., Otani, M., Maekura, K., Kamada, H., Tsunoda, S., Tsutsumi, Y., Tomiyama, T., Mori, H., Matsuura, K., Matsuyama, S.
Journal: Neurosci Lett (2013): 85-9
Application of fluorescence two-dimensional difference in-gel electrophoresis as a proteomic biomarker discovery tool in muscular dystrophy research
Authors: Carberry, S., Zweyer, M., Sw and ulla, D., Ohlendieck, K.
Journal: Biology (Basel) (2013): 1438-64
Two-dimensional fluorescence difference gel electrophoresis analysis of Listeria monocytogenes submitted to a redox shock
Authors: Ignatova, M., Guevel, B., Com, E., Haddad, N., Rossero, A., Bogard, P., Prevost, H., Guillou, S.
Journal: J Proteomics (2013): 13-27
Identification of new pathogenic candidates for diabetic macular edema using fluorescence-based difference gel electrophoresis analysis
Authors: Hern, undefined and ez, C., Garcia-Ramirez, M., Colome, N., Corraliza, L., Garcia-Pascual, L., Casado, J., Canals, F., Simo, R.
Journal: Diabetes Metab Res Rev (2013): 499-506
Discovery and target identification of an antiproliferative agent in live cells using fluorescence difference in two-dimensional gel electrophoresis
Authors: Park, J., Oh, S., Park, S. B.
Journal: Angew Chem Int Ed Engl (2012): 5447-51
