Buccutite™ Rapid APC-iFluor® 750 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction*

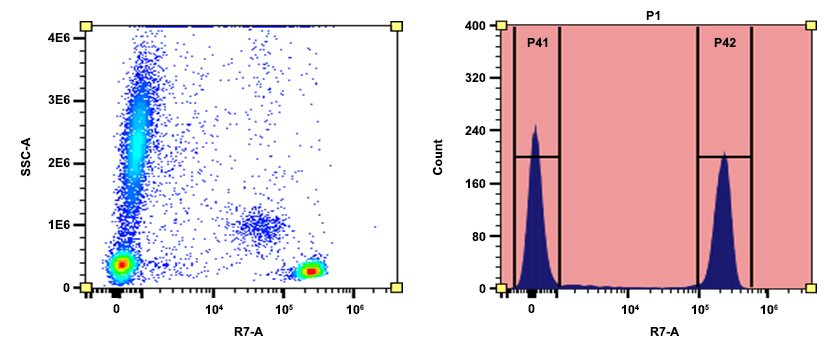

Flow cytometry analysis of whole blood cells stained with APC/iFluor® 750 anti-human CD4 antibody (Clone: SK3). The fluorescence signal was monitored using an Aurora spectral flow cytometer in the APC/iFluor® 750 specific R7-A channel.
Flow cytometry analysis of whole blood cells stained with APC/iFluor® 750 anti-human CD4 antibody (Clone: SK3). The fluorescence signal was monitored using an Aurora spectral flow cytometer in the APC/iFluor® 750 specific R7-A channel.
Flow cytometry analysis of whole blood cells stained with APC/iFluor® 750 anti-human CD4 antibody (Clone: SK3). The fluorescence signal was monitored using an Aurora spectral flow cytometer in the APC/iFluor® 750 specific R7-A channel.
Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Spectral properties
Extinction coefficient (cm -1 M -1)700000
Excitation (nm)651
Emission (nm)791
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12171501
Related products
Buccutite™ Rapid PE Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction*
Buccutite™ Rapid APC Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction*
Buccutite™ Peroxidase (HRP) Antibody Conjugation Kit *Optimized for Labeling 100 ug Protein*
Buccutite™ Rapid Protein Crosslinking Kit *Microscale Optimized for Crosslinking 100 ug Antibody Per Reaction*
Buccutite™ Rapid PE Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction*
Buccutite™ Rapid APC Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction*
Buccutite™ Rapid PE-Cy5.5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction*
Buccutite™ Rapid PE-Cy7 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction*
Buccutite™ Rapid PE-Texas Red Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction*
Buccutite™ Rapid PE-Cy5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction*
Buccutite™ Rapid APC-Cy5.5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction*
Buccutite™ Rapid APC-Cy7 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction*
Buccutite™ Rapid PerCP Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction*
Buccutite™ Rapid PE-Cy5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction*
Buccutite™ Rapid PE-Cy5.5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction*
Buccutite™ Rapid PE-Cy7 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction*
Buccutite™ Rapid PE-Texas Red Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction*
Buccutite™ Rapid APC-Cy5.5 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction*
Buccutite™ Rapid APC-Cy7 Tandem Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction*
Buccutite™ Rapid PerCP Antibody Labeling Kit *Microscale Optimized for Labeling 25 ug Antibody Per Reaction*
Buccutite™ Peroxidase (HRP) Antibody Conjugation Kit *Optimized for Labeling 25 ug Protein*
Buccutite™ Peroxidase (HRP) Antibody Conjugation Kit *Optimized for Labeling 1 mg Protein*
Buccutite™ MTA, NHS ester
Buccutite™ FOL scavenger
Buccutite™ MTA scavenger
Buccutite™ MTA-Dye 650
Buccutite™ FOL-Dye 650
Buccutite™ ALP (Alkaline Phosphatase) Antibody Conjugation Kit *Optimized for Labeling 25 ug Protein*
Buccutite™ ALP (Alkaline Phosphatase) Antibody Conjugation Kit *Optimized for Labeling 100 ug Protein*
Buccutite™ ALP (Alkaline Phosphatase) Antibody Conjugation Kit *Optimized for Labeling 1 mg Protein*
Buccutite™ Poly-HRP Antibody Conjugation Kit
Buccutite™ FOL, maleimide [FOLM]
Buccutite™ MTA, maleimide [MTAM]
Buccutite™ FOL, NHS ester
Buccutite™ Rapid trFluor™ D2 Acceptor Antibody Labeling Kit *Microscale Optimized for Labeling 100 ug Antibody Per Reaction*
Buccutite™ Streptavidin Antibody Conjugation Kit *Optimized for Labeling 25 ug Protein*
Buccutite™ Streptavidin Antibody Conjugation Kit *Optimized for Labeling 100 ug Protein*
Buccutite™ Streptavidin Antibody Conjugation Kit *Optimized for Labeling 1 mg Protein*
Buccutite™ Rapid Oligo Antibody Conjugation Kit *Optimized for Labeling 100 ug Protein*
Buccutite™ Rapid PE Antibody Labeling Kit *Production Scale Optimized for Labeling 1 mg Antibody Per Reaction*
Buccutite™ Rapid Crosslinked APC Antibody Labeling Kit *Production Scale Optimized for Labeling 1 mg Antibody Per Reaction*
Buccutite™ Rapid PerCP Antibody Labeling Kit *Production Scale Optimized for Labeling 1 mg Antibody Per Reaction*
Buccutite™ Rapid PE-Cy7 Tandem Antibody Labeling Kit *Production Scale Optimized for Labeling 1 mg Antibody Per Reaction*
Buccutite™ Rapid PE-Texas Red Tandem Antibody Labeling Kit *Production Scale Optimized for Labeling 1 mg Antibody Per Reaction*
Buccutite™ Rapid PE-Cy5 Tandem Antibody Labeling Kit *Production Scale Optimized for Labeling 1 mg Antibody Per Reaction*
Buccutite™ Rapid APC-Cy5.5 Tandem Antibody Labeling Kit *Production Scale Optimized for Labeling 1 mg Antibody Per Reaction*
Buccutite™ Rapid APC-Cy7 Tandem Antibody Labeling Kit *Production Scale Optimized for Labeling 1 mg Antibody Per Reaction*
Show More (37)

OverviewpdfProtocol


Extinction coefficient (cm -1 M -1)
700000
Excitation (nm)
651
Emission (nm)
791
APC-iFluor® 750 Tandem is an excellent replacement for APC-Cy7 and APC-Alexa Fluor® 750 Tandem since they have almost identical spectra. On some antibodies, our APC-iFluor® 750 Tandem is much brighter than APC-Cy7, APC-H7, and APC-Alexa Fluor® 750 Tandem with a higher stain index. AAT Bioquest offers this Buccutite™ rapid labeling kit to facilitate the APC-iFluor® 750 tandem conjugations to antibodies and other proteins such as streptavidin and other secondary reagents. Buccutite™ APC-iFluor® 750 Tandem Conjugation Kit provides a robust and convenient method to conjugate antibodies with APC-iFluor® 750 tandem. The kit includes a preactivated APC-iFluor® 750 tandem and reaction buffer. The entire process only requires two simple mixings without further purification required. The conjugated antibody can be used in WB, ELISA, and IHC applications. This kit is sufficient for 2 labeling reactions, each up to 25 µg of antibody. The best ratio for any new antibody reagent must be determined by experimentation. Our kit provides preactivated APC-iFluor® 750 tandem to facilitate the APC-iFluor® 750 tandem conjugations to antibodies and other proteins such as streptavidin and other secondary reagents. Our preactivated APC-iFluor® 750 tandem is ready to conjugate, giving a much higher yield than the conventionally tedious SMCC-based conjugation chemistry. In addition, our preactivated APC-iFluor® 750 tandem is conjugated to a protein via its amino group that is abundant in proteins, while SMCC chemistry targets the thiol group that has to be regenerated by the reduction of antibodies.

Components


Example protocol


AT A GLANCE

Protocol Summary
  1. Add 1.25 µL Reaction Buffer (Component C) into antibody (25 µL)
  2. Add 2.5 µL Buccutite™ MTA working solution
  3. Incubate at room temperature for 30 - 60 minutes
  4. Mix with 50 µL Buccutite™ FOL-Activated APC-iFluor® 750 working solution

  5. Incubate at room temperature for 60 minutes
Important Note

Upon receipt, store the kit at 4 °C. When stored properly, the kit should be stable for six months. Alternatively Components A and B can be stored at -20 °C. Do not freeze Reaction Buffer (Component C). Warm all the components and centrifuge the vials briefly before opening, and immediately prepare the required solutions before starting your conjugation. The following SOP is an example for labeling goat anti-mouse IgG antibody.

PREPARATION OF WORKING SOLUTION

Antibody working solution

For labeling 25 µg antibody (assuming the target antibody concentration is 1 mg/mL), mix 1.25 µL (5% of the total reaction volume) of Reaction Buffer (Component C) with 25 µL of the target antibody solution.

Note: If you have a different concentration, adjust the antibody volume accordingly to make ~25 µg antibody available for your labeling reaction.

Note: The antibody should be dissolved in 1X phosphate buffered saline (PBS), pH 7.2-7.4; If the antibody is dissolved in glycine buffer, it must be dialyzed against 1X PBS, pH 7.2-7.4, or use Amicon Ultra-0.5, Ultracel-10 Membrane, 10 kDa ( Cat. # UFC501008 from Millipore) to remove free amines or ammonium salts (such as ammonium sulfate and ammonium acetate) that are widely used for antibody precipitation.

Note: Impure antibodies or antibodies stabilized with bovine serum albumin (BSA) or gelatin will not be labeled well.

Note: The antibody –Buccutite™ MTA reaction efficiency is significantly reduced if the antibody concentration is less than 1 mg/mL. For optimal labeling efficiency the final antibody concentration range of 1-10 mg/mL is recommended.

Buccutite ™ MTA working solution

Add 10 µL DMSO (Not provided) into the vial of Buccutite ™ MTA (Component B).

Buccutite ™ FOL-Activated APC-iFluor™ 750 working solution

Add 50 µL ddH2O into the vial of Buccutite ™ FOL-Activated APC-iFluor® 750 (Component A).

SAMPLE EXPERIMENTAL PROTOCOL

Run Antibody-Buccutite™ MTA reaction
  1. Add 2.5 µL of Buccutite ™ MTA working solution into antibody working solution, and mix them well by repeatedly pipetting for a few times or vortex the vial for a few seconds.
  2. Keep the antibody- Buccutite ™ MTA reaction mixture at room temperature for 30 - 60 minutes.

    Note: The antibody-Buccutite™ MTA reaction mixture can be rotated or shaken for longer time if desired.

Make Antibody-APC-iFluor™ 750 conjugation
  1. Add 50 µL of Buccutite™ FOL-Activated APC-iFluor® 750 working solution with Antibody-Buccutite™ MTA solution, mix well by repeatedly pipetting for a few times or vortex the vial for a few seconds.

  2. Incubate for 1 to 2 hours.
  3. The antibody-APC-iFluor® 750 conjugate is now ready to use.

    Note: For immediate use, the antibody-APC-iFluor® 750 conjugate need be diluted with the buffer of your choice.

    Note: For longer term storage, antibody-APC-iFluor® 750 conjugate solution need be concentrated or freeze dried.

Storage of Antibody-APC-iFluor® 750 Conjugate

The antibody conjugate should be stored in the presence of a carrier protein (e.g., 0.1% bovine serum albumin) and 0.02-0.05% sodium azide. The Ab-APC-iFluor® 750 conjugate solution could be stored at 4 °C for two months without significant change and kept from light.

Table 1. Available fluorophores at AAT Bioquest Buccutite™ Rapid Antibody Labelling Kits

Cat# Labels Ex (nm) Em (nm)
1312 PE 565 575
1340 PE-Cy5 565 674
1341 PE-Cy5.5 565 700
1342 PE-Cy7 565 780
1343 PE-Texas Red 565 600
1313 APC 651 662
1347

APC-iFluor® 700

651 713
1350 APC-Cy5.5 651 700
1351 APC-Cy7 651 780
1353 PerCP 482 677

1348

APC-iFluor® 750

651

791

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Extinction coefficient (cm -1 M -1)700000
Excitation (nm)651
Emission (nm)791

Images


References


View all 3 references: Citation Explorer
Flow cytometry APC-tandem dyes are degraded through a cell-dependent mechanism.
Authors: Le Roy, Christine and Varin-Blank, Nadine and Ajchenbaum-Cymbalista, Florence and Letestu, Rémi
Journal: Cytometry. Part A : the journal of the International Society for Analytical Cytology (2009): 882-90
Polychromatic (eight-color) slide-based cytometry for the phenotyping of leukocyte, NK, and NKT subsets.
Authors: Mittag, Anja and Lenz, Dominik and Gerstner, Andreas O H and Sack, Ulrich and Steinbrecher, Michael and Koksch, Mario and Raffael, Alexander and Bocsi, Jozsef and Tárnok, Attila
Journal: Cytometry. Part A : the journal of the International Society for Analytical Cytology (2005): 103-15
Near-infrared dyes for six-color immunophenotyping by laser scanning cytometry.
Authors: Gerstner, Andreas O H and Lenz, Dominik and Laffers, Wiebke and Hoffman, Robert A and Steinbrecher, Michael and Bootz, Friedrich and Tárnok, Attila
Journal: Cytometry (2002): 115-23
