iFluor® 488 hydrazide

Fluorescent dye hydrazine derivatives are the most popular tool for conjugating dyes to a target compound with a carbonyl group (e.g., aldehyde, carboxylic acid or activated carboxy group such as NHS ester). Fluorescent dye hydrazine derivatives are also useful for tracing neurons.

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
International	See distributors
Bulk request	Inquire
Custom size	Inquire
Shipping	Standard overnight for United States, inquire for international

Request quotation

Physical properties

Molecular weight	890.57
Solvent	Water

Spectral properties

Correction Factor (260 nm)	0.21
Correction Factor (280 nm)	0.11
Extinction coefficient (cm ^-1 M ^-1)	75000¹
Excitation (nm)	491
Emission (nm)	516
Quantum yield	0.9¹

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12171501

Alternative formats

iFluor® 488 succinimidyl ester

iFluor® 488 amine

iFluor® 488 maleimide

iFluor® 488 azide

iFluor® 488 alkyne

Overview SDS Protocol

Molecular weight

890.57

Correction Factor (260 nm)

0.21

Correction Factor (280 nm)

0.11

Extinction coefficient (cm ^-1 M ^-1)

75000¹

Excitation (nm)

491

Emission (nm)

516

Quantum yield

0.9¹

Although FITC is still the most popular fluorescent labeling dye for preparing green fluorescent bioconjugates, there are certain limitations with FITC, such as severe photobleaching for microscope imaging and pH-sensitive fluorescence. Protein conjugates prepared with iFluor® 488 dyes are far superior to conjugates of fluorescein derivatives such as FITC. iFluor® 488 conjugates are significantly brighter than fluorescein conjugates and are much more photostable. Additionally, the fluorescence of iFluor® 488 is not affected by pH (4-10). This pH insensitivity is a major improvement over fluorescein, which emits its maximum fluorescence only at pH above 9. iFluor® 488 hydrazide is reasonably stable and shows good reactivity and selectivity with a carbonyl group (such as aldehyde). This iFluor® 488 has spectral properties and reactivity similar to Alexa Fluor® 488 hydrazide ( Alexa Fluor® is the trademark of Invitrogen).

Calculators

Common stock solution preparation

Table 1. Volume of Water needed to reconstitute specific mass of iFluor® 488 hydrazide to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

	0.1 mg	0.5 mg	1 mg	5 mg	10 mg
1 mM	112.288 µL	561.438 µL	1.123 mL	5.614 mL	11.229 mL
5 mM	22.458 µL	112.288 µL	224.575 µL	1.123 mL	2.246 mL
10 mM	11.229 µL	56.144 µL	112.288 µL	561.438 µL	1.123 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)		Molecular weight		Volume (Calculate)		Concentration (Calculate)		Moles
	/		=		x		=

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Correction Factor (260 nm)	0.21
Correction Factor (280 nm)	0.11
Extinction coefficient (cm ^-1 M ^-1)	75000¹
Excitation (nm)	491
Emission (nm)	516
Quantum yield	0.9¹

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)	Quantum yield	Correction Factor (260 nm)	Correction Factor (280 nm)
iFluor® 350 hydrazide	345	450	20000¹	0.95¹	0.83	0.23
iFluor® 555 hydrazide	557	570	100000¹	0.64¹	0.23	0.14
iFluor® 647 hydrazide	656	670	250000¹	0.25¹	0.03	0.03
iFluor® 680 hydrazide	684	701	220000¹	0.23¹	0.097	0.094
iFluor® 700 hydrazide	690	713	220000¹	0.23¹	0.09	0.04
iFluor® 750 hydrazide	757	779	275000¹	0.12¹	0.044	0.039
iFluor® 790 hydrazide	787	812	250000¹	0.13¹	0.1	0.09
iFluor® 488 tyramide	491	516	75000¹	0.9¹	0.21	0.11
iFluor® 405 hydrazide	403	427	37000¹	0.91¹	0.48	0.77
iFluor® 488 Styramide Superior Replacement for Alexa Fluor 488 tyramide and Opal 520	491	516	75000¹	0.9¹	0.21	0.11
iFluor® 488 TCO	491	516	75000¹	0.9¹	0.21	0.11
iFluor® 488 Tetrazine	491	516	75000¹	0.9¹	0.21	0.11
iFluor®488-dUTP 1 mM in Tris Buffer (pH 7.5)	491	516	75000¹	0.9¹	0.21	0.11
Show More (4)

Images

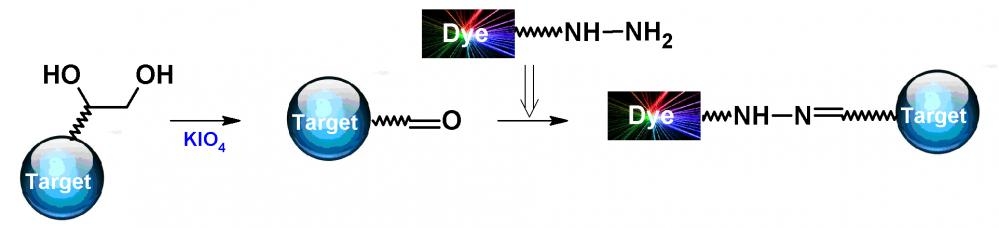

Figure 1. Fluorescent dye hydrazine derivatives are the most popular tool for conjugating dyes to a target compound with a carbonyl group (e.g., aldehyde, carboxylic acid or activated carboxy group such as NHS ester). Fluorescent dye hydrazine derivatives are also useful for tracing neurons.
