ReadiLink™ Rapid iFluor™ 594 Antibody Labeling Kit *Microscale Optimized for Labeling 50 µg Antibody Per Reaction*

Save 25% on your purchase of ReadiLink™ Rapid iFluor™ 594 Antibody Labeling Kit *Microscale Optimized for Labeling 50 µg Antibody Per Reaction* when you use the promotion code ifluor25. Act quickly, offer expires 05-31-19.Details

Image Viewer
Select color channel(s)
HeLa cells were stained with (Tubulin+) or without (Tubulin-) mouse anti-tubulin and then visualized with iFluor<sup>™</sup> 594 goat anti-mouse IgG (Left) or with Alexa Fluor<sup>®</sup> 594 goat anti-mouse IgG (Right).
Roll over image to zoom in

Unit Size: Cat No: Price (USD): Qty:
2 Labelings 1230 $145

Export item/cart as Excel file

Send item/cart as email

Important: We request your email address to ensure that the recipient(s) knows you intended for them to see the email, and that it is not junk mail.
Your Name*:
Your Email*:
Recipient Email*:
Your Personal Message:
Additional Ordering Information
Telephone: 1-800-990-8053
Fax: 1-408-733-1304
International: See distributors


Ex/Em (nm)592/614
Storage Freeze (<-15 °C)
Minimize light exposure
Category Superior Labeling Dyes
iFluor Dyes and Kits
Related General proteins
Labeling via Amino Groups
Secondary Reagents
AAT Bioquest's iFluor™ dyes are optimized for labeling proteins, in particular, antibodies. iFluor™ 594 dyes have fluorescence excitation and emission maxima of ~590 nm and ~610 nm respectively. iFluor™ 594 family has the spectral properties similar to those of Texas Red® and Alexa Fluor® 594 (Texas Red® and Alexa Fluor® 594 are the trademarks of Invitrogen). iFluor™ 594 family is pH-independent from pH 3 to 11. These spectral characteristics make this new dye family an excellent alternative to Texas Red® and Alexa Fluor® 594.Compared to Texas Red®, iFluor™ 594 is much easier to be conjugated with RPE with much higher conjugation yield, and the resulted RPE-iFluor™ 594 tandem has better FRET efficiency.ReadiLink™ labeling kits essentially only require 2 simple mixing steps without a column purification needed. iFluor™ 594 SE used in this ReadiLink™ kit is reasonably stable and shows good reactivity and selectivity with protein amino groups. The kit has all the essential components for labeling ~2x50 ug antibody. Each of the two vials of iFluor™ 594 dye provided in the kit is optimized for labeling ~50 µg antibody. iFluor™ 594 SE protein labeling kit provides a convenient method to label monoclonal, polyclonal antibodies or other proteins (>10 kDa) with the iFluor™ 594 SE.

Spectrum Advanced Spectrum Viewer

Sorry, your browser does not support inline SVG. Relative Intensity (%) 100 80 60 40 20 0 Sorry, your browser does not support inline SVG.
Sorry, your browser does not support inline SVG. Sorry, your browser does not support inline SVG.
Move mouse over grid to display wavelength & intensity values.

Wavelength (nm)


Quick Preview

This protocol only provides a guideline, and should be modified according to your specific needs.
At a glance

Table 1. Available fluorophores in AAT Bioquest ReadyLink™ Rapid Antibody Labelling Kits

Cat# Labels Ex (nm) Em (nm)
1100  mFluor™ Violet 450 403 454
1105 mFluor™ Violet 420 398 411
1110 mFluor™ Violet 510  414  508
1114 mFluor™ Violet 540  399  550
1120 mFluor™ Blue 570 553  570
1123 mFluor™ Green 620  522  617
1126 mFluor™ Yellow 630  561  630
1130 mFluor™ Red 700   657 700
1131  mFluor™ Red 780 629  780
1220 iFluor™ 350   345 442
1227 iFluor™ 555  559  569
1230  iFluor™ 594  592 614
1235  iFluor™ 647  654 674
1240  iFluor™ 680  682 701
1245  iFluor™ 700  693 713
1250  iFluor™ 750  753 779
1255  iFluor™ 488  491 514
1260  iFluor™ 633  638 655
1265 iFluor™ 790   782 811
1290  Cy3  555 565
1292  Cy5  644 665
1294  Cy7  749  776
1299  FITC 494  520
Preparation of working solution


Warm all the components and centrifuge the vials briefly before opening, and immediately prepare the required solutions before starting your conjugation. The following protocol is for recommendation.

Protein working solution (Solution A):
For labeling 50 µg of protein (assuming the target protein concentration is 1 mg/mL), mix 5 µL (10% of the total reaction volume) of Reaction Buffer (Component B) with 50 µL of the target protein solution. Note: If you have a different protein concentration, adjust the protein volume accordingly to make ~50 µg of protein available for your labeling reaction. Note: For labeling 100 µg of protein (assuming the target protein concentration is 1 mg/mL), mix 10 µL (10% of the total reaction volume) of Reaction Buffer (Component B) with 100 µL of the target protein solution. Note: The protein should be dissolved in 1X phosphate buffered saline (PBS), pH 7.2 - 7.4; if the protein is dissolved in glycine buffer, it must be dialyzed against 1X PBS, pH 7.2 - 7.4, or use Amicon Ultra-0.5, Ultracel-10 Membrane, 10 kDa (cat# UFC501008 from Millipore) to remove free amines or ammonium salts (such as ammonium sulfate and ammonium acetate) that are widely used for protein precipitation. Note: Impure antibodies or antibodies stabilized with bovine serum albumin (BSA) or gelatin will not be labeled well. Note: For optimal labeling efficiency, a final protein concentration range of 1 - 2 mg/mL is recommended, with a significantly reduced conjugation efficiency at less than 1 mg/mL.

Sample experimental protocol

Run conjugation reaction

  1. Add the protein working solution (Solution A) to ONE vial of labeling dye (Component A), and mix them well by repeatedly pipetting for a few times or vortex the vial for a few seconds. Note: If labeling 100 µg of protein, use both vials (Component A) of labeling dye by dividing the 100 µg of protein into 2 x 50 µg of protein and reacting each 50 µg of protein with one vial of labeling dye. Then combine both vials for the next step.

  2. Keep the conjugation reaction mixture at room temperature for 30 - 60 minutes. Note: The conjugation reaction mixture can be rotated or shaken for longer time if desired.

Stop Conjugation reaction

  1. Add 5 µL (for 50 µg protein) or 10 µL (for 100 µg protein) which is 10% of the total reaction volume of TQ™-Dyed Quench Buffer (Component C) into the conjugation reaction mixture; mix well.

  2. Incubate at room temperature for 10 minutes. The labeled protein (antibody) is now ready to use.

Storage of Protein Conjugate

The protein conjugate should be stored at > 0.5 mg/mL in the presence of a carrier protein (e.g., 0.1% bovine serum albumin). For longer storage, the protein conjugates could be lyophilized or divided into single-used aliquots and stored at ≤ –20°C.

Example data analysis and figures

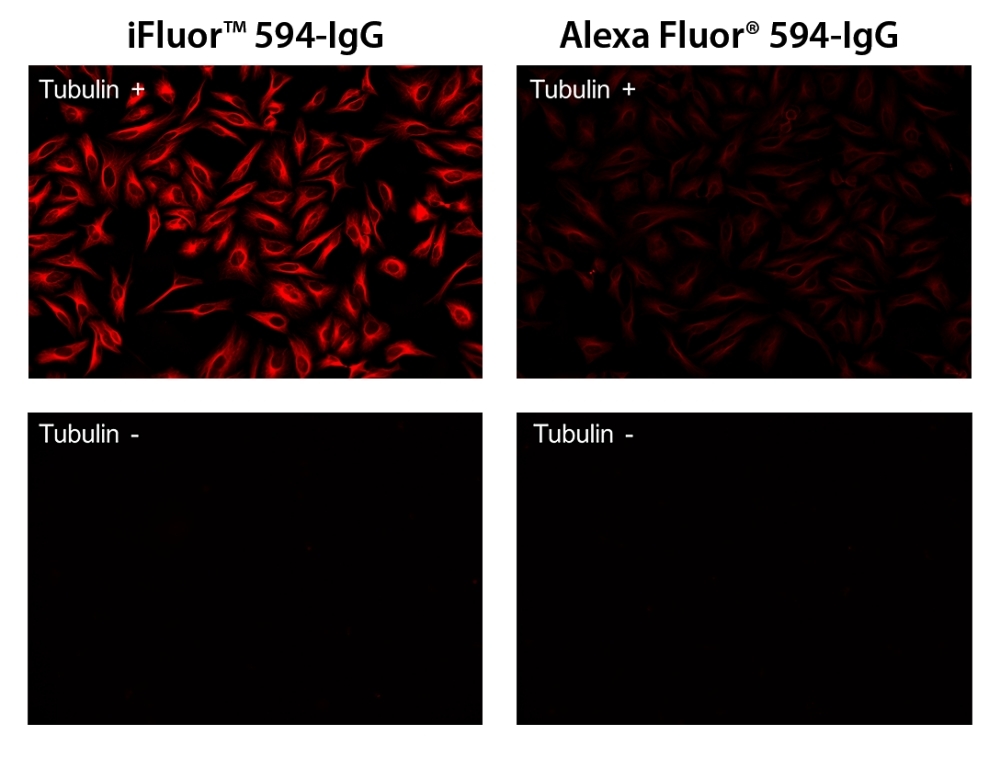

Figure 1. HeLa cells were stained with (Tubulin+) or without (Tubulin-) mouse anti-tubulin and then visualized with iFluor 594 goat anti-mouse IgG (Left) or with Alexa Fluor® 594 goat anti-mouse IgG (Right).
AAT Bioquest provides high-quality reagents and materials for research use only. For proper handling of potentially hazardous chemicals, please consult the Safety Data Sheet (SDS) provided for the product. Chemical analysis and/or reverse engineering of any kit or its components is strictly prohibited without written permission from AAT Bioquest. Please call 408-733-1055 or email if you have any questions.

References & Citations

Deep Sequencing Analysis of the Eha-Regulated Transcriptome of Edwardsiella tarda Following Acidification
Authors: D Gao, N Liu, Y Li, Y Zhang, G Liu
Journal: Metabolomics (Los Angel) (2017): 2153--0769

Suramin inhibits cullin-RING E3 ubiquitin ligases
Authors: Kenneth Wu, Robert A Chong, Qing Yu, Jin Bai, Donald E Spratt, Kevin Ching, Chan Lee, Haibin Miao, Inger Tappin, Jerard Hurwitz
Journal: Proceedings of the National Academy of Sciences (2016): E2011--E2018

Glycosaminoglycan mimicry by COAM reduces melanoma growth through chemokine induction and function
Authors: Helene Piccard, Nele Berghmans, Eva Korpos, Chris Dillen, Ilse Van Aelst, Sandra Li, Erik Martens, Sandra Liekens, Sam Noppen, Jo Van Damme
Journal: International Journal of Cancer (2012): E425--E436
