iFluor® 647 azide

Click chemistry is a method for attaching a probe or substrate of interest to a specific biomolecule, a process called bioconjugation. The possibility of attaching fluorophores and other reporter molecules has made click chemistry a very powerful tool for identifying, locating, and characterizing both old and new biomolecules. The classic click reaction is the copper-catalyzed reaction of an azide with an alkyne to form a 5-membered heteroatom ring, this reaction is commonly called Cu(I)-Catalyzed Azide-Alkyne Cycloaddition (CuAAC).

Ordering information

Price
Catalog Number
Unit Size
Quantity

Add to cart

Additional ordering information

Telephone	1-800-990-8053
Fax	1-800-609-2943
Email	sales@aatbio.com
Quotation	Request
International	See distributors
Shipping	Standard overnight for United States, inquire for international

Physical properties

Molecular weight	1041.11
Solvent	DMSO

Spectral properties

Correction Factor (260 nm)	0.03
Correction Factor (280 nm)	0.03
Correction Factor (656 nm)	0.0793
Extinction coefficient (cm ^-1 M ^-1)	250000¹
Excitation (nm)	656
Emission (nm)	670
Quantum yield	0.25¹

Storage, safety and handling

H-phrase	H303, H313, H333
Hazard symbol	XN
Intended use	Research Use Only (RUO)
R-phrase	R20, R21, R22
Storage	Freeze (< -15 °C); Minimize light exposure
UNSPSC	12171501

Alternative formats

iFluor® 647 succinimidyl ester

iFluor® 647 amine

iFluor® 647 maleimide

iFluor® 647 alkyne

iFluor® 647 hydrazide

Overview SDS Protocol

Molecular weight

1041.11

Correction Factor (260 nm)

0.03

Correction Factor (280 nm)

0.03

Correction Factor (656 nm)

0.0793

Extinction coefficient (cm ^-1 M ^-1)

250000¹

Excitation (nm)

656

Emission (nm)

670

Quantum yield

0.25¹

AAT Bioquest's iFluor® dyes are optimized for labeling proteins, particularly antibodies. These dyes are bright, photostable, and have minimal quenching on proteins. They can be well excited by the major laser lines of fluorescence instruments (e.g., 350, 405, 488, 555, and 633 nm). iFluor® 647 dyes have fluorescence excitation and emission maxima of ~656 nm and ~670 nm respectively. iFluor® 647 family has spectral properties essentially identical to those of Cy5® (Cy5® is the trademark of GE Healthcare). Compared to Cy5® probes, iFluor® 647 reagents have much stronger fluorescence and higher photostability. Their fluorescence is pH-independent from pH 3 to 11. These spectral characteristics make this new dye family an excellent alternative to Cy5® and Alexa Fluor® 647 (Cy5® and Alexa Fluor® are the trademarks of Invitrogen and GE Health Care). iFluor® 647 azide is reasonably stable and shows good reactivity and selectivity with the alkyne group.

Calculators

Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of iFluor® 647 azide to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

	0.1 mg	0.5 mg	1 mg	5 mg	10 mg
1 mM	96.051 µL	480.257 µL	960.513 µL	4.803 mL	9.605 mL
5 mM	19.21 µL	96.051 µL	192.103 µL	960.513 µL	1.921 mL
10 mM	9.605 µL	48.026 µL	96.051 µL	480.257 µL	960.513 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)		Molecular weight		Volume (Calculate)		Concentration (Calculate)		Moles
	/		=		x		=

Spectrum

Open in Advanced Spectrum Viewer

Spectral properties

Correction Factor (260 nm)	0.03
Correction Factor (280 nm)	0.03
Correction Factor (656 nm)	0.0793
Extinction coefficient (cm ^-1 M ^-1)	250000¹
Excitation (nm)	656
Emission (nm)	670
Quantum yield	0.25¹

Product Family

Name	Excitation (nm)	Emission (nm)	Extinction coefficient (cm ^-1 M ^-1)	Quantum yield	Correction Factor (260 nm)	Correction Factor (280 nm)	Correction Factor (656 nm)
iFluor® 488 azide	491	516	75000¹	0.9¹	0.21	0.11	-
iFluor® 555 azide	557	570	100000¹	0.64¹	0.23	0.14	-
iFluor® 647 Styramide Superior Replacement for Alexa Fluor 647 tyramide	656	670	250000¹	0.25¹	0.03	0.03	0.0793
iFluor® 647 Tyramide	656	670	250000¹	0.25¹	0.03	0.03	0.0793
iFluor® 647 TCO	656	670	250000¹	0.25¹	0.03	0.03	0.0793
iFluor® 647 Tetrazine	656	670	250000¹	0.25¹	0.03	0.03	0.0793
iFluor™ 405 azide	403	427	37000¹	0.91¹	0.48	0.77	-

Images

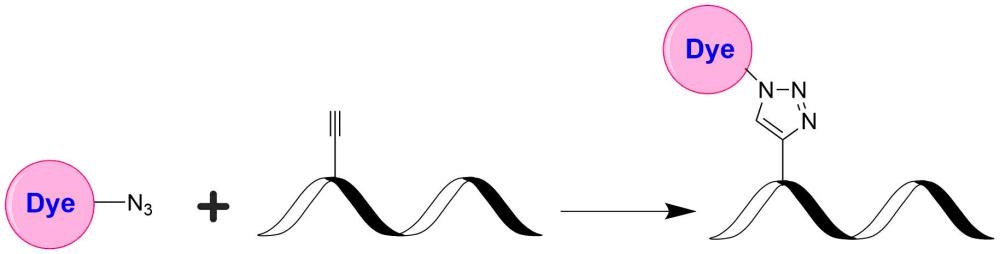

Figure 1. Click chemistry is a method for attaching a probe or substrate of interest to a specific biomolecule, a process called bioconjugation. The possibility of attaching fluorophores and other reporter molecules has made click chemistry a very powerful tool for identifying, locating, and characterizing both old and new biomolecules. The classic click reaction is the copper-catalyzed reaction of an azide with an alkyne to form a 5-membered heteroatom ring, this reaction is commonly called Cu(I)-Catalyzed Azide-Alkyne Cycloaddition (CuAAC).
