Wheat Germ Agglutinin (WGA) Conjugates

iFluor<sup>®</sup> 488-WGA conjugate

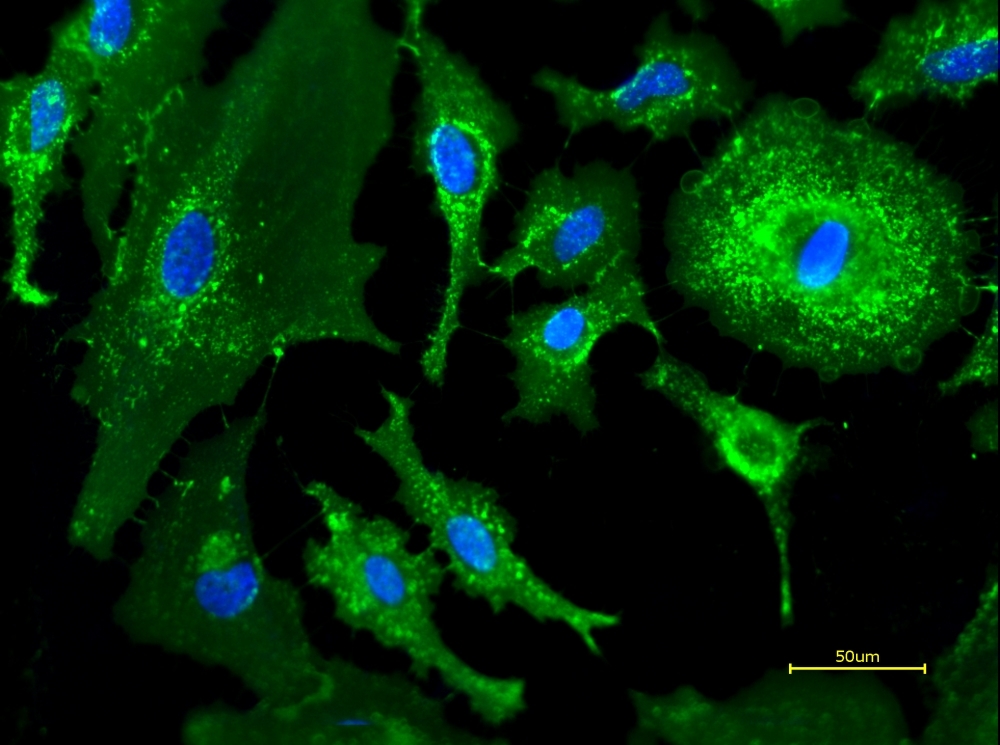

Live HeLa cells were stained with iFluor® 488-Wheat Germ Agglutinin (WGA) Conjugate at 5 µg/mL for 30 minutes followed by Hoechst 33342 (Cat No. 17535). Image was acquired using fluorescence microscopy using FITC and DAPI filter set.
Wheat germ agglutinin (WGA) is a carbohydrate-binding lectin originally derived from Triticum vulgare. Like other lectins, such as Concanavalin A (ConA), WGA exhibits a high binding affinity for distinct sugar residues commonly present on cell-surface and intracellular glycoconjugates (e.g., glycoproteins and glycolipids). This specificity is often exploited in fluorescence imaging and analysis techniques to label the plasma membranes of eukaryotic cells, gram-positive bacteria, and yeast bud scars, stain fibrotic scar tissue, and localize and detect glycosylated proteins in gels. Fluorescent WGA conjugates, including those labeled with bright, photostable iFluor® dyes, provide greater flexibility in designing colocalization and other multicolor experiments for imaging and flow cytometry.



Properties of Wheat Germ Agglutinin

Wheat germ agglutinin selectively binds to N-acetylglucosaminyl (GlcNAc) and N-acetylneuraminic acid (sialic acid) residues on glycoconjugates and oligosaccharides found throughout the cell surface. The presence and distribution of these residues can not only vary among cell and organelle types but can also be expressed abnormally in various pathologies, making WGA a useful marker in identifying and profiling These phenotypes. WGA is water-soluble and, in solution, exists primarily as a heterodimer with a molecular weight of ∼38 kDa. Under physiological conditions, WGA is cationic (pl > 9) and unable to penetrate live cells. Cell and tissue samples must be fixed before staining with fluorescent WGA conjugates to detect intracellular glycoconjugates and oligosaccharides.

When succinylated with succinic anhydride, the solubility of WGA increases 100-fold at neutral pH and can agglutinate rabbit and human erythrocytes (A, B, and O blood types) with a minimum concentration of 2 µg/mL. Like unmodified WGA, succinylated WGA is specific for GlcNAc residues. However, it loses its binding affinity for sialic acid residues suggesting the use of both lectins as a system for distinguishing between N-acetylglucosaminylated and sialylated glycoconjugates.

Fluorescent WGA conjugates are commonly used in imaging and flow cytometry to localize and detect cell-surface or intracellular glycoconjugates. They are useful at identifying cell types based on glycoprotein-makeup and for labeling eukaryotic cell walls, fibrotic scar tissue, yeast bud scars, chitin and bacterial cell wall peptidoglycans. The latter has been used to differentiate gram-positive and gram-negative bacteria.


Fluorescent iFluor®-WGA Conjugates

iFluor<sup>®</sup> 488-WGA conjugate

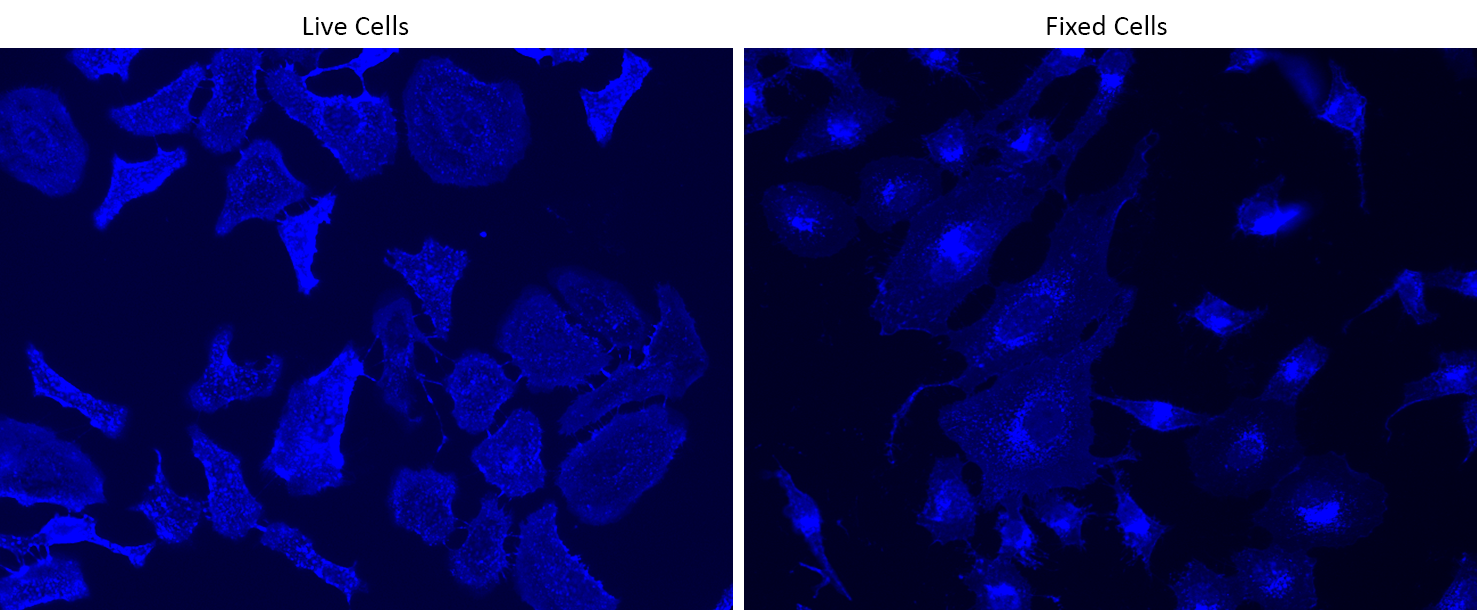

Live and fixed HeLa cells were stained with iFluor® 350-Wheat Germ Agglutinin (WGA) Conjugate at 10 µg/mL for 30 minutes. The image was acquired on a fluorescence microscope using a DAPI filter set.
AAT Bioquest offers iFluor®-WGA conjugates in multiple fluorescence colors ranging from deep blue through NIR wavelengths, in particular our green-fluorescent iFluor® 488, red-fluorescent iFluor® 594, and far-red fluorescent iFluor® 647-WGA conjugates. These conjugates have nearly identical spectra to their respective FITC, Texas Red, and Cy5 counterparts, but provide significantly brighter more photostable fluorescence signals over a broader pH range (pH 4 to 10). The longer-wavelength iFluor® 647-WGA conjugate, which emits maximally at 670 nm, offers significant advantages in multicolor imaging or when working with samples known to have high intrinsic autofluorescence, such as tissues. The fluorescence emission of iFluor® 647 is well-separated from that of other commonly used blue- and green-fluorescent dyes, eliminating the need for compensation.

Also available are several WGA conjugates labeled with our Alexa Fluor® XFD equivalents, including the widely-used Alexa Fluor® 488 and Alexa Fluor® 594 dyes, among others. All of the XFD dyes have the exact same chemical structure as Alexa Fluor® alternatives.


Table 1. iFluor® wheat germ agglutinin conjugates for live and fixed cells.

Product name
Ex/Em (nm)
Filter Set
Unit Size
Cat No.
iFluor® 350-Wheat Germ Agglutinin ConjugateMembrane-impermeant345/450DAPI1 mg25525
iFluor® 488-Wheat Germ Agglutinin ConjugateMembrane-impermeant491/516FITC1 mg25530
iFluor® 532-Wheat Germ Agglutinin ConjugateMembrane-impermeant537/560Cy3/TRITC1 mg25532
iFluor® 555-Wheat Germ Agglutinin ConjugateMembrane-impermeant557/570Cy3/TRITC1 mg25539
iFluor® 594-Wheat Germ Agglutinin ConjugateMembrane-impermeant588/604Texas Red1 mg25550
iFluor® 647-Wheat Germ Agglutinin ConjugateMembrane-impermeant656/670Cy51 mg25559
iFluor® 680-Wheat Germ Agglutinin ConjugateMembrane-impermeant684/701Cy51 mg25560
iFluor® 700-Wheat Germ Agglutinin ConjugateMembrane-impermeant690/713Cy51 mg25561
iFluor® 750-Wheat Germ Agglutinin ConjugateMembrane-impermeant757/779Cy71 mg25562
iFluor® 790-Wheat Germ Agglutinin ConjugateMembrane-impermeant787/812Cy71 mg25563

Table 2. Alexa Fluor® wheat germ agglutinin conjugates for live and fixed cells.

Product name
Cell Permeability
Ex/Em (nm)
Filter Set
Unit Size
Cat No.
Wheat Germ Agglutinin, XFD350 LabeledMembrane-impermeant303/439DAPI1 mg25495
Wheat Germ Agglutinin, XFD488 LabeledMembrane-impermeant499/520FITC1 mg25500
Wheat Germ Agglutinin, XFD532 LabeledMembrane-impermeant317/553Cy3/TRITC1 mg25502
Wheat Germ Agglutinin, XFD555 LabeledMembrane-impermeant520/568Cy3/TRITC1 mg25503
Wheat Germ Agglutinin, XFD594 LabeledMembrane-impermeant590/618Texas Red1 mg25509
Wheat Germ Agglutinin, XFD647 LabeledMembrane-impermeant604/671Cy51 mg25512
Wheat Germ Agglutinin, XFD750 LabeledMembrane-impermeant752/776Cy71 mg25515

Table 3. mFluor™ wheat germ agglutinin conjugates for live and fixed cells.

Product Name
Unit Size
mFluor™ Violet 450-Wheat Germ Agglutinin (WGA) Conjugate4064451 mg25450
mFluor™ Violet 500-Wheat Germ Agglutinin (WGA) Conjugate4105011 mg25452
mFluor™ Violet 540-Wheat Germ Agglutinin (WGA) Conjugate4025351 mg25454
