iFluor® 488-Wheat Germ Agglutinin (WGA) Conjugate
Ordering information
Price | |
Catalog Number | |
Unit Size | |
Quantity |
Additional ordering information
Telephone | 1-800-990-8053 |
Fax | 1-800-609-2943 |
sales@aatbio.com | |
Quotation | Request |
International | See distributors |
Shipping | Standard overnight for United States, inquire for international |
Physical properties
Molecular weight | N/A |
Solvent | Water |
Spectral properties
Correction Factor (260 nm) | 0.21 |
Correction Factor (280 nm) | 0.11 |
Extinction coefficient (cm -1 M -1) | 750001 |
Excitation (nm) | 491 |
Emission (nm) | 516 |
Quantum yield | 0.91 |
Storage, safety and handling
Certificate of Origin | Download PDF |
H-phrase | H303, H313, H333 |
Hazard symbol | XN |
Intended use | Research Use Only (RUO) |
R-phrase | R20, R21, R22 |
Storage | Freeze (< -15 °C); Minimize light exposure |
UNSPSC | 12171501 |
Overview | ![]() ![]() |
Molecular weight N/A | Correction Factor (260 nm) 0.21 | Correction Factor (280 nm) 0.11 | Extinction coefficient (cm -1 M -1) 750001 | Excitation (nm) 491 | Emission (nm) 516 | Quantum yield 0.91 |
Wheat germ agglutinin (WGA) is a lectin that binds to N-acetyl-D-glucosamine and sialic acid. It is of the most studied and useful lectins for it biological applications. Since WGA binds to glycoconjugates its derivatives and conjugates are widely used to label cell membranes and fibrotic scar tissue for fluorescence imaging and analysis. The carbohydrate-binding specificity of WGA is directed against sequences of β-1,4-GlcNAc-linked residues, the chitodextrins. Each monomer contains two identical, non-interacting binding sites which are complementary to 3 or 4 β-1,4-GlcNAc units. Of the monosaccharides examined, only GlcNAc binds to WGA. ManNAc does not bind and GalNAc binds only weakly. WGA binds with high affinity to internal GlcNAc residues in large oligosaccharides containing repeat sequences of Gal beta(1----4)GlcNAc beta(1----3) (i.e. polylactosamine-type glycans). N-Acetylneuraminic acid is involved only in low-affinity interactions with WGA. WGA displays an intricate pattern of saccharide specificities that might be used for structural analysis of complex carbohydrates. iFluor®488 conjugate of WGA might be the brightest WGA conjugate. It exhibits the bright and green fluorescence of the iFluor® 488 dye. iFluor®488 WGA conjugate binds to sialic acid and N-acetylglucosaminyl residues as AF488 WGA conjugate does.
Platform
Fluorescence microscope
Excitation | FITC filter set |
Emission | FITC filter set |
Recommended plate | Black wall/clear bottom |
Example protocol
PREPARATION OF STOCK SOLUTIONS
Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.
Note The reconstituted conjugate solution can be stored at 2-8 °C for short-term storage or at -20 °C for long-term storage.
iFluor™ 488-Wheat Germ Agglutinin (WGA) Conjugate stock solution (200X)
Add 500 µL of ddH2O into the powder form to make 2 mg/mL stock solution.Note The reconstituted conjugate solution can be stored at 2-8 °C for short-term storage or at -20 °C for long-term storage.
PREPARATION OF WORKING SOLUTION
iFluor™ 488-Wheat Germ Agglutinin (WGA) Conjugate working solution (1X)
Add 5 µL of 200X WGA conjugate solution to 1 mL HHBS Buffer.Note The optimized staining concentration may be different with different cell lines. The recommended starting concentration is 5-10 µg/mL for live cells.
SAMPLE EXPERIMENTAL PROTOCOL
Warm the vial to room temperature centrifuge briefly before opening. Staining protocols vary with applications. Appropriate dilution of conjugates should be determined experimentally.
Live Cells Stain
- Wash cells twice with a HHBS buffer.
- Add 100 µL iFluor™ 488-WGA working solution.
- Incubate cells with WGA working solution for 10-30 minutes at 37 °C.
- Wash cells twice with HHBS buffer.
- Image cells on a fluorescence microscope using FITC filter set.
Fixed Cells Stain
WGA conjugates can be also used to stain fixed cells.- Fix cells with 4% Formaldehyde in PBS.
Note For fixed cell membrane staining, it is recommended to stain without permeabilization step. Permeabilized step can after fixation will lead to intracellular compartments stain such as Golgi and Endoplasmic Reticulum (ER) structures. - Add 100 µL iFluor™ 488-WGA working solution.
- Incubate cells with WGA working solution for 10-30 minutes at room temperature.
- Wash cells twice with HHBS buffer.
- Image cells on a fluorescence microscope using FITC filter set.

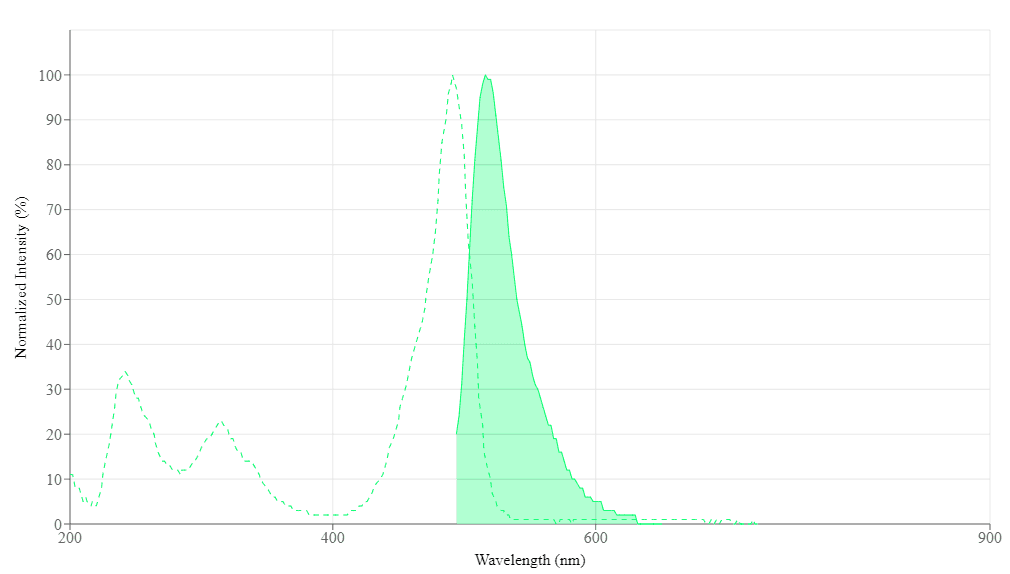

Spectrum
Open in Advanced Spectrum Viewer


Spectral properties
Correction Factor (260 nm) | 0.21 |
Correction Factor (280 nm) | 0.11 |
Extinction coefficient (cm -1 M -1) | 750001 |
Excitation (nm) | 491 |
Emission (nm) | 516 |
Quantum yield | 0.91 |
Product Family
Name | Excitation (nm) | Emission (nm) | Extinction coefficient (cm -1 M -1) | Quantum yield | Correction Factor (260 nm) | Correction Factor (280 nm) |
iFluor® 555-Wheat Germ Agglutinin (WGA) Conjugate | 557 | 570 | 1000001 | 0.641 | 0.23 | 0.14 |
iFluor® 594-Wheat Germ Agglutinin (WGA) Conjugate | 588 | 604 | 1800001 | 0.531 | 0.05 | 0.04 |
iFluor® 647-Wheat Germ Agglutinin (WGA) Conjugate | 656 | 670 | 2500001 | 0.251 | 0.03 | 0.03 |
