XFD532 acid *Same Structure to Alexa Fluor™ 532 acid*

Ordering information
Price ()
Catalog Number1795
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight626.70
SolventDMSO
Spectral properties
Extinction coefficient (cm -1 M -1)81000
Excitation (nm)534
Emission (nm)553
Quantum yield0.611
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12171501
Related products
XFD488 azide *Same Structure to Alexa Fluor™ 488 azide*
XFD488 alkyne *Same Structure to Alexa Fluor™ 488 alkyne*
XFD488 NHS Ester *Same Structure to Alexa Fluor™ 488 NHS Ester*
XFD488 C5 Maleimide *Same Structure to Alexa Fluor™ 488 C5 Maleimide*
XFD350 NHS Ester *Same Structure to Alexa Fluor™ 350 NHS Ester*
XFD532 NHS Ester *Same Structure to Alexa Fluor™ 532 NHS Ester*
XFD594 NHS Ester *Same Structure to Alexa Fluor™ 594 NHS Ester*
XFD350 C5 Maleimide *Same Structure to Alexa Fluor™ 350 C5 Maleimide*
XFD532 C5 Maleimide *Same Structure to Alexa Fluor™ 532 C5 Maleimide*
XFD594 C5 Maleimide *Same Structure to Alexa Fluor™ 594 C5 Maleimide*
XFD488 Hydroxylamine *Same Structure to Alexa Fluor™ 488 Hydroxylamine*
XFD350 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD594 Same Structure to Alexa Fluor™ 594*
XFD350 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD594 Same Structure to Alexa Fluor™ 594*
XFD488 amine *Same Structure to Alexa Fluor™ 488 amine*
XFD594 amine *Same Structure to Alexa Fluor™ 594 amine*
XFD350-streptavidin conjugate *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488-streptavidin conjugate *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594-streptavidin conjugate *XFD594 Same Structure to Alexa Fluor™ 594*
XFD350 Phalloidin *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 Phalloidin *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 Phalloidin *XFD594 Same Structure to Alexa Fluor™ 594*
XFD488 tyramide reagent *Same Structure to Alexa Fluor™ 488 tyramide*
XFD546 tyramide reagent *Same Structure to Alexa Fluor™ 546 tyramide*
XFD594 tyramide reagent *Same Structure to Alexa Fluor™ 594 tyramide*
XFD488 NHS Ester-UltraPure Grade *XFD488 Same Structure to Alexa Fluor™ 488*
XFD555 NHS Ester *Same Structure to Alexa Fluor™ 555 NHS Ester*
XFD647 NHS Ester *Same Structure to Alexa Fluor™ 647 NHS Ester*
XFD680 NHS Ester *Same Structure to Alexa Fluor™ 680 NHS Ester*
XFD700 NHS Ester *Same Structure to Alexa Fluor™ 700 NHS Ester*
XFD750 NHS Ester *Same Structure to Alexa Fluor™ 750 NHS Ester*
XFD647 maleimide *C2, XFD647 Same Structure to Alexa Fluor™ 647*
XFD546 NHS Ester *Same Structure to Alexa Fluor™ 546 NHS Ester*
XFD568 NHS Ester *Same Structure to Alexa Fluor™ 568 NHS Ester*
XFD350 tyramide reagent *Same Structure to Alexa Fluor™ 350 tyramide*
XFD568 tyramide reagent *Same Structure to Alexa Fluor™ 568 tyramide*
XFD488 tetrazine *Same Structure to Alexa Fluor™ 488 tetrazine*
XFD488 aldehyde *Same Structure to Alexa Fluor™ 488 aldehyde*
XFD™488-dUTP *1 mM in Tris Buffer (pH 7.5)*
XFD514 NHS Ester *Same Structure to Alexa Fluor™ 514 NHS Ester*
XFD514 tyramide
XFD647 Azide
XFD647 Alkyne
XFD488 TCO
Show More (47)

OverviewpdfSDSpdfProtocol


Molecular weight
626.70
Extinction coefficient (cm -1 M -1)
81000
Excitation (nm)
534
Emission (nm)
553
Quantum yield
0.611
XFD532 is manufactured by AAT Bioquest, and it has the same chemical structure of Alexa Fluor® 532 (Alexa Fluor® is the trademark of ThermoFisher). XFD532 acid has the same molecule as Alexa Fluor® 532 acid. It is a bright yellow-fluorescent dye optimal for use with the frequency-doubled Nd:YAG laser line. XFD532 dye is water soluble and pH-insensitive from pH 4 to pH 10. XFD532 acid is the most economic amine-reactive form for conjugating this dye to a peptide.

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of XFD532 acid *Same Structure to Alexa Fluor™ 532 acid* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM159.566 µL797.83 µL1.596 mL7.978 mL15.957 mL
5 mM31.913 µL159.566 µL319.132 µL1.596 mL3.191 mL
10 mM15.957 µL79.783 µL159.566 µL797.83 µL1.596 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

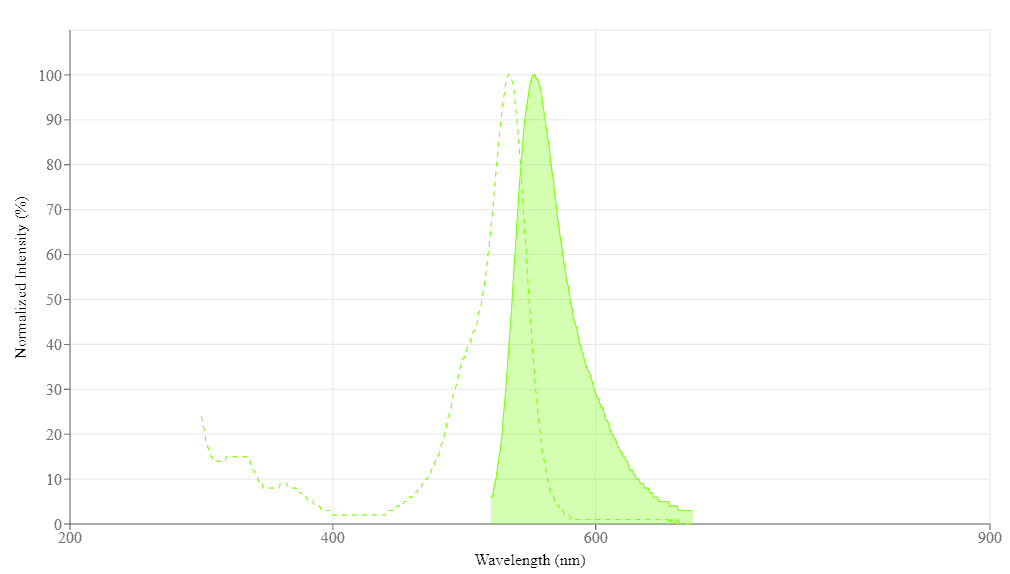

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Extinction coefficient (cm -1 M -1)81000
Excitation (nm)534
Emission (nm)553
Quantum yield0.611
