Experimental Protocol for Calcein AM Assay
by K Chico
The calcein AM viability assay is a simple sensitive assay for measuring cell viability, cell proliferation , or to assess cytotoxicity in adherent cells or those in suspension. Calcein AM interacts with intracellular esterases to produce a hydrophilic, strongly fluorescent compound that is retained in the cytoplasm. Analysis can be performed at an Ex/Em = 490/525 nm in a fluorescent microplate reader or under an appropriate channel in a flow cytometer. Other calceins may require other spectral settings outside of the typical green wavelengths. The measured fluorescence intensity is proportional to the number of viable cells within a sample.
Calcein AM assay buffer: if not supplied ready to use, dilute in distilled or deionized water as instructed. A common option is Hanks and Hepes buffer, but others may be employed based on experimental requirements. A table of recipes and preparation instructions for various buffers is available here.
Calcein AM stock solution: resuspend calcein AM in an appropriate amount of anhydrous DMSO to make a stock solution. For most cell lines, Calcein AM at the final concentration of 4 to 5 µM is recommended. The nonionic detergent Pluronic® F-127 at a final concentration of 0.02% is sometimes used to increase the aqueous solubility of AM esters.
For the most reproducible assay, fresh samples are recommended. Snap frozen samples are the second best alternative, though it is important to avoid multiple freeze-thaws. Addition of a protease inhibitor may be necessary for certain samples.
Ideally, the cell concentration should be between 3e5 to 5e5 cells/mL.
Positive control: live, non-treated cells grown in a normal culture environment.
Negative control: Cells that undergo induced death. This population can be achieved by exposing a sample to:
A Protocol for a High-Throughput Multiplex Cell Viability Assay
An Improved Flow Cytometry-Based Natural Killer Cytotoxicity Assay Involving Calcein AM Staining of Effector Cells
Staining of fluorogold-prelabeled retinal ganglion cells with calcein-AM: A new method for assessing cell vitality
Original created on October 24, 2023, last updated on October 24, 2023
Tagged under: calcein, cell viability, protocol

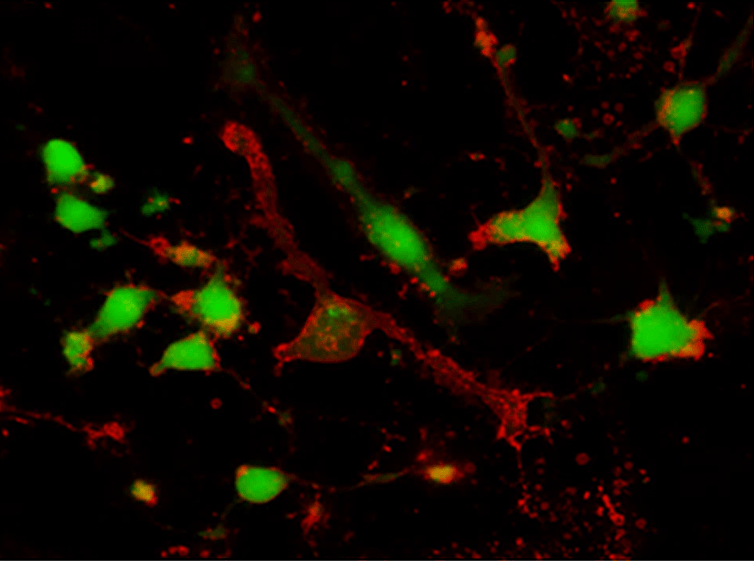

Simultaneous imaging of live and apoptotic HeLa cells labeled using calcein AM (green) and Annexin V-iFluor® 647 conjugate (red).
[TOC - 1]
Materials and Equipment
- Calcein AM
- Calcein AM assay buffer
- Centrifuge
- Culture microplates
- PBS
- Lab grade deionized water
- Cell culture medium
- CO2 incubator
- DMSO
- FACS tubes
- Ethanol/formaldehyde
- Fluorescence microplate reader
- Flow cytometer
- 96-well flat-bottom, black plate
Reagent Preparation
Calcein AM assay buffer: if not supplied ready to use, dilute in distilled or deionized water as instructed. A common option is Hanks and Hepes buffer, but others may be employed based on experimental requirements. A table of recipes and preparation instructions for various buffers is available here.
Calcein AM stock solution: resuspend calcein AM in an appropriate amount of anhydrous DMSO to make a stock solution. For most cell lines, Calcein AM at the final concentration of 4 to 5 µM is recommended. The nonionic detergent Pluronic® F-127 at a final concentration of 0.02% is sometimes used to increase the aqueous solubility of AM esters.
Table 1. Common stock solution preparation.
▲ ▼ | 50 µg ▲ ▼ | 100 µg ▲ ▼ | 500 µg ▲ ▼ | 1 mg ▲ ▼ | 5 mg ▲ ▼ |
| 1 mM | 50.258 µL | 100.517 µL | 502.583 µL | 1.005 mL | 5.026 mL |
| 5 mM | 10.052 µL | 20.103 µL | 100.517 µL | 201.033 µL | 1.005 mL |
| 10 mM | 5.026 µL | 10.052 µL | 50.258 µL | 100.517 µL | 1.005 mL |
Note:
- Aliquots can be stored at -20 ℃ and should be used within two months. Immediately prior to use, dilute the calcein AM stock solution in the calcein AM assay buffer, preparing at least enough for all wells.
- The optimal concentration of calcein AM may vary depending on cell type. In general, this should be empirically determined.
Table 2. Specifications for calcein AM and calcein AM derivatives.
| Product ▲ ▼ | Ex (nm) ▲ ▼ | Em (nm) ▲ ▼ | Spectrum ▲ ▼ | Unit Size ▲ ▼ | Cat No. ▲ ▼ |
| Calcein Blue, AM *CAS 168482-84-6* | 354 nm | 441 nm |  | 1 mg | 22007 |
| Calcein UltraBlue™ | 359 nm | 458 nm | | 1 mg | 21908 |
| CytoCalcein™ Violet 450 *Excited at 405 nm* | 406 nm | 445 nm | | 1 mg | 22012 |
| CytoCalcein™ Violet 500 *Excited at 405 nm* | 420 nm | 505 nm | | 1 mg | 22013 |
| Calcein, AM *CAS 148504-34-1* | 501 nm | 521 nm | | 1 mg | 22002 |
| Calcein, AM *UltraPure grade* *CAS 148504-34-1* | 501 nm | 521 nm | | 1 mg | 22003 |
| Calcein, AM *UltraPure grade* *CAS 148504-34-1* | 501 nm | 521 nm | | 20x50 µg | 22004 |
| Calcein Orange™ diacetate | 531 nm | 545 nm | | 1 mg | 22009 |
| Calcein Red™ AM | 562 nm | 576 nm | | 1 mg | 21900 |
| Calcein Deep Red™ AM ester | 643 nm | 663 nm | | 1 mg | 22011 |
Fluorescence Microplate
Detection of Jurkat cell viability using calcein Blue AM. Jurkat cells were treated with staurosporine and stained with Calcein Blue AM (blue), annexin V iFluor® 488 (green), and 7-AAD (red).
Cell Preparation
- Grow cells as instructed in an appropriate 96-well plate.
Note: Clear plates can be used to ensure cell adhesion, but will increase background fluorescence and may reduce assay sensitivity. If using a clear plate, samples can be transferred to a solid black plate prior to reading. In general, AAT Bioquest recommends using a black wall/clear bottom plate, and setting the instrument to bottom read mode. - For adherent cells, carefully aspirate the media.
- For suspension cells, spin the 96-well plate at 1,000 g for 5 minutes at 4°C and carefully aspirate the media.
Protocol
For the most reproducible assay, fresh samples are recommended. Snap frozen samples are the second best alternative, though it is important to avoid multiple freeze-thaws. Addition of a protease inhibitor may be necessary for certain samples.
- Plate cells in a 96-well plate with the densities from 1e3 to 5e5 cells/mL.
- Prepare duplicates and/or triplicates as desired.
- Cell concentrations must be optimized to ensure the best dynamic range.
Optional: It may be necessary to remove leftover media in the supernatant, as phenol red and serum can interfere with the sensitivity of the assay. If so:- Centrifuge the plate at 250 G for 5 minutes and remove the supernatant.
- Wash cells with an appropriate amount of fresh assay buffer or PBS.
- Repeat centrifugation and aspiration steps.
- Add an appropriate amount of fresh assay buffer to each well.
- Add an appropriate amount of fresh calcein AM stock solution to each well.
- Incubate for 30 minutes at 37°C, or as otherwise instructed or optimized. 20 minutes to 1 hour is a typical range of time. Decreasing the loading temperature may reduce compartmentalization.
Note: Incubation time should be empirically determined based on cell type and concentration. - Wash cells in indicator-free buffer (containing an anion transporter inhibitor, if applicable) to remove excess probe.
- Read fluorescence in the microplate reader at Ex/Em 490/525 nm cutoff 515nm, or other spectral points depending on if other calcein variants in alternative colors are used.
Flow Cytometry

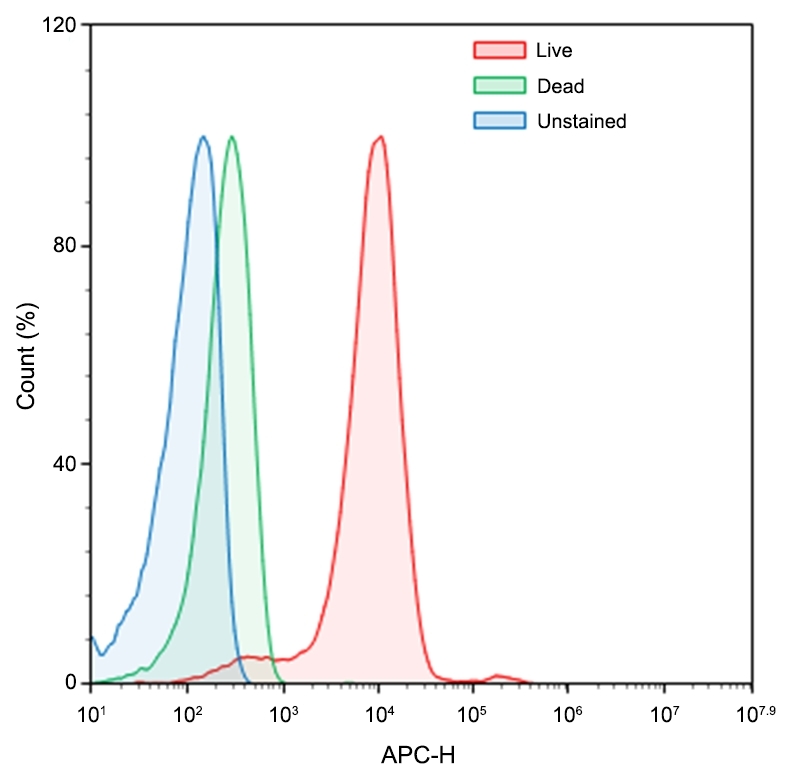

Flow Cytometry Analysis of Jurkat cells stained with Calcein Deep Red™ AM ester. Jurkat cells were washed once with HH buffer and stained with 2 uM Calcein Deep Red™ AM ester in HH with 0.02% PF-127 and 1mM PBC for 30 minutes at 37C incubator. Cells were then washed with HH buffer and resuspended in HH buffer. The fluorescence intensities of Live cells (healthy, Red) and Dead cells (treated in 55°C water bath for 30 minutes, Green) were measured with NovoCyte 3000 flow cytometer using blue laser APC emission channel.
Cell Preparation
Ideally, the cell concentration should be between 3e5 to 5e5 cells/mL.
Note: The concentration should remain <106 cells/mL, as cells cultivated in excess may naturally enter apoptosis and/or may not be analyzed efficiently by the flow cytometer.
Positive control: live, non-treated cells grown in a normal culture environment.
Negative control: Cells that undergo induced death. This population can be achieved by exposing a sample to:
- 90% Ethanol for 30-60 seconds at 37°C; or
- 3% Formaldehyde for 30 minutes on ice, followed by a wash step with PBS, and resuspension in the assay buffer.
Protocol
- Transfer an appropriate amount of cells into fresh FACS tubes, including repeats as desired. The following controls and samples should be prepared in separate tubes:
- Unlabeled live cells
- Unlabeled dead cells
- Calcein AM stained live cells
- Calcein AM stained dead cells
- Add an appropriate amount of the reconstituted calcein AM stock solution to each respective tube.
- Mix the cells gently through tapping the tube or pipetting.
- Incubate cells, protected from light, at 37 °C.
Note: Incubation period may range from 30 minutes, depending, and can be optimized for each cell line and experimental condition. With longer incubation times, cells may settle on the bottom of the tubes. Gentle resuspension can be performed by gently swirling tubes or pipetting the solution periodically to ensure an even distribution of calcein AM throughout the staining step. - Measure fluorescence of each tube on the flow cytometer equipped with appropriate lasers. For calcein AM, this will require a blue laser, and the instrument should be set to the FITC channel (530/30 filter set).
- Live cells will fluoresce due to the presence of active esterases capable of cleaving calcein AM.
- Dead cells will not fluoresce due to the absence of active esterases, leaving calcein AM in its uncleaved form.
Selection Guide for Calcein Viability Dyes
| Dye | Calcein Blue | CytoCalcein™ Violet 450 | Calcein UltraBlue™ | CytoCalcein™ Violet 500 | Calcein UltraGreen™ | Calcein | Calcein Orange™ | Calcein Red™ | Calcein Deep Red™ | |
| Principle | In live cells, non-fluorescent calcein AM is converted to a fluorescent calcein product after AM ester hydrolysis by intracellular esterases. | |||||||||
| Readout | Live cells are highly fluorescent and easily distinguishable from dead cells, which are non-fluorescent. | |||||||||
| Laser(nm) | UV (350) | Violet (405) | UV (350) | Violet (405) | Blue (488) | Blue (488) | Green (532) | Yellow (561-568) | Red (633-647) | |
| Ex/Em(nm) | 354/441 | 406/445 | 359/458 | 420/505 | 492/514 | 501/521 | 531/545 | 562/576 | 643/663 | |
| Multiplexable | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| Dye Compatibility | Compatible with green and red fluorescent proteins, indicators, and other probes | Compatible with green and red fluorescent proteins, indicators, and other probes | Compatible with green and red fluorescent proteins, indicators, and other probes | Compatible with blue and red fluorescent proteins, indicators, and other probes | Compatible with blue and red fluorescent proteins, indicators, and other probes | Compatible with blue and red fluorescent proteins, indicators, and other probes | Compatible with blue and red fluorescent proteins, indicators, and other probes | Compatible with blue and green fluorescent proteins, indicators, and other probes | Compatible with blue and green fluorescent proteins, indicators, and other probes | |
| Sample Type | Live Cells | |||||||||
| Platform | Fluorescence Microscope, Fluorescence Microplate Reader, Flow Cytometer | |||||||||
| Cat No. | AM Ester | 22007 | 22012 | 21908 | 22013 | 21905 | 22003 | 22009 | 21900 | 22011 |
| Reference Dye | 22006 | 21909 | 22001 | 22008 | 21901 | 21902 | ||||
| Spectrum | | | | | | | | | | |
