XFD546 NHS Ester *Same Structure to Alexa Fluor™ 546 NHS Ester*

Ordering information
Price
Catalog Number
Unit Size
Quantity
Add to cart
Additional ordering information
Telephone1-800-990-8053
Fax1-800-609-2943
Emailsales@aatbio.com
InternationalSee distributors
Bulk requestInquire
Custom sizeInquire
ShippingStandard overnight for United States, inquire for international
Request quotation
Physical properties
Molecular weight1159.60
SolventDMSO
Spectral properties
Correction Factor (260 nm)0.21
Correction Factor (280 nm)0.12
Extinction coefficient (cm -1 M -1)112000
Excitation (nm)561
Emission (nm)572
Quantum yield0.791
Storage, safety and handling
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12171501
Related products
XFD488 azide *Same Structure to Alexa Fluor™ 488 azide*
XFD488 alkyne *Same Structure to Alexa Fluor™ 488 alkyne*
XFD488 C5 Maleimide *Same Structure to Alexa Fluor™ 488 C5 Maleimide*
XFD350 C5 Maleimide *Same Structure to Alexa Fluor™ 350 C5 Maleimide*
XFD532 C5 Maleimide *Same Structure to Alexa Fluor™ 532 C5 Maleimide*
XFD594 C5 Maleimide *Same Structure to Alexa Fluor™ 594 C5 Maleimide*
XFD488 Hydroxylamine *Same Structure to Alexa Fluor™ 488 Hydroxylamine*
XFD350 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 goat anti-mouse IgG (H+L) *Cross Adsorbed, XFD594 Same Structure to Alexa Fluor™ 594*
XFD350 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 goat anti-rabbit IgG (H+L) *Cross Adsorbed, XFD594 Same Structure to Alexa Fluor™ 594*
XFD488 amine *Same Structure to Alexa Fluor™ 488 amine*
XFD594 amine *Same Structure to Alexa Fluor™ 594 amine*
XFD350-streptavidin conjugate *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488-streptavidin conjugate *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594-streptavidin conjugate *XFD594 Same Structure to Alexa Fluor™ 594*
XFD350 Phalloidin *XFD350 Same Structure to Alexa Fluor™ 350*
XFD488 Phalloidin *XFD488 Same Structure to Alexa Fluor™ 488*
XFD594 Phalloidin *XFD594 Same Structure to Alexa Fluor™ 594*
XFD532 acid *Same Structure to Alexa Fluor™ 532 acid*
XFD488 acid *Same Structure to Alexa Fluor™ 488 acid*
XFD488 tyramide reagent *Same Structure to Alexa Fluor™ 488 tyramide*
XFD546 tyramide reagent *Same Structure to Alexa Fluor™ 546 tyramide*
XFD594 tyramide reagent *Same Structure to Alexa Fluor™ 594 tyramide*
XFD488 NHS Ester-UltraPure Grade *XFD488 Same Structure to Alexa Fluor™ 488*
XFD647 C2 Maleimide *Same Structure to Alexa Fluor™ 647 C2 Maleimide*
XFD350 tyramide reagent *Same Structure to Alexa Fluor™ 350 tyramide*
XFD568 tyramide reagent *Same Structure to Alexa Fluor™ 568 tyramide*
XFD350 acid *Same Structure to Alexa Fluor™ 350 acid*
XFD546 acid *Same Structure to Alexa Fluor™ 546 acid*
XFD568 acid *Same Structure to Alexa Fluor™ 568 acid*
XFD488 tetrazine *Same Structure to Alexa Fluor™ 488 tetrazine*
XFD488 aldehyde *Same Structure to Alexa Fluor™ 488 aldehyde*
XFD™488-dUTP *1 mM in Tris Buffer (pH 7.5)*
XFD514 acid
XFD514 tyramide
XFD532 tyramide
XFD647 Azide
XFD647 Alkyne
XFD488 TCO
XFD532 amine
XFD555 amine
XFD568 amine
XFD647 amine
XFD750 amine
XFD555 acid
XFD647 acid
XFD750 acid
XFD700 acid
XFD647 Phalloidin *equivalent to Alexa Fluor® 647 phalloidin*
Show More (42)

OverviewpdfSDSpdfProtocol


Molecular weight
1159.60
Correction Factor (260 nm)
0.21
Correction Factor (280 nm)
0.12
Extinction coefficient (cm -1 M -1)
112000
Excitation (nm)
561
Emission (nm)
572
Quantum yield
0.791
XFD546 is manufactured by AAT Bioquest, and it has the same chemical structure of Alexa Fluor® 546 (Alexa Fluor® is the trademark of ThermoFisher). XFD546 NHS Ester (Succinimidyl Ester) has the same molecule as the Alexa Fluor® 546 NHS Ester. It is a bright orange-fluorescent dye optimal for use with the frequency-doubled Nd:YAG laser line. XFD546 dye is water soluble and pH-insensitive from pH 4 to pH 10. The NHS ester (or succinimidyl ester) of XFD546 is the most convenient amine-reactive form for conjugating this dye to a protein or antibody.

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of XFD546 NHS Ester *Same Structure to Alexa Fluor™ 546 NHS Ester* to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM86.237 µL431.183 µL862.366 µL4.312 mL8.624 mL
5 mM17.247 µL86.237 µL172.473 µL862.366 µL1.725 mL
10 mM8.624 µL43.118 µL86.237 µL431.183 µL862.366 µL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

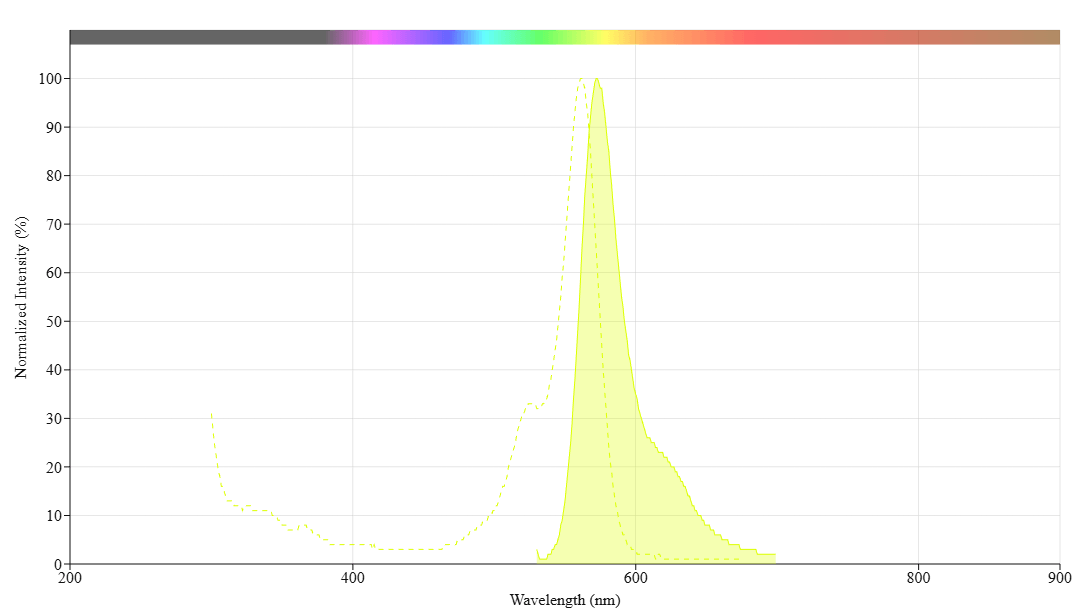

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Correction Factor (260 nm)0.21
Correction Factor (280 nm)0.12
Extinction coefficient (cm -1 M -1)112000
Excitation (nm)561
Emission (nm)572
Quantum yield0.791

Citations


View all 2 citations: Citation Explorer
A combined solvatochromic shift and TDDFT study probing solute-solvent interactions of blue fluorescent Alexa Fluor 350 dye: Evaluation of ground and excited state dipole moments
Authors: Patil, M. K., Kotresh, M. G., Inamdar, S. R.
Journal: Spectrochim Acta A Mol Biomol Spectrosc (2019): 142-152
Observing the Reversible Single Molecule Electrochemistry of Alexa Fluor 647 Dyes by Total Internal Reflection Fluorescence Microscopy
Authors: Fan, S., Webb, J. E. A., Yang, Y., Nieves, D. J., Goncales, V. R., Tran, J., Hilzenrat, G., Kahram, M., Tilley, R. D., Gaus, K., Gooding, J. J.
Journal: Angew Chem Int Ed Engl (2019): 14495-14498

References


View all 1 references: Citation Explorer
Quantitative comparison of long-wavelength Alexa Fluor dyes to Cy dyes: fluorescence of the dyes and their bioconjugates
Authors: Berlier JE, Rothe A, Buller G, Bradford J, Gray DR, Filanoski BJ, Telford WG, Yue S, Liu J, Cheung CY, Chang W, Hirsch JD, Beechem JM, Haugl and RP., undefined
Journal: J Histochem Cytochem (2003): 1699
