iFluor® 440 succinimidyl ester

Ordering information
Price ()
Catalog Number1041
Unit Size
Find Distributor
Additional ordering information
Telephone1-408-733-1055
Fax1-408-733-1304
Emailsales@aatbio.com
InternationalSee distributors
ShippingStandard overnight for United States, inquire for international
Physical properties
Molecular weight692.83
SolventDMSO
Spectral properties
Correction Factor (260 nm)0.352
Correction Factor (280 nm)0.229
Extinction coefficient (cm -1 M -1)400001
Excitation (nm)434
Emission (nm)480
Quantum yield0.671
Storage, safety and handling
Certificate of OriginDownload PDF
H-phraseH303, H313, H333
Hazard symbolXN
Intended useResearch Use Only (RUO)
R-phraseR20, R21, R22
StorageFreeze (< -15 °C); Minimize light exposure
UNSPSC12171501

OverviewpdfSDSpdfProtocol


Molecular weight
692.83
Correction Factor (260 nm)
0.352
Correction Factor (280 nm)
0.229
Extinction coefficient (cm -1 M -1)
400001
Excitation (nm)
434
Emission (nm)
480
Quantum yield
0.671
AAT Bioquest's iFluor® dyes are optimized for labeling proteins, in particular, antibodies. These dyes are bright, photostable and have minimal quenching on proteins. They can be well excited by the major laser lines of fluorescence instruments (e.g., 350, 405, 488, 555 and 633 nm). iFluor® 440 dyes are designed to be a superior replacement for DEAC dye that has extremely poor water solubility. iFluor® 440 SE is reasonably stable and shows good reactivity and selectivity with protein amino groups. Under the same conditions, iFluor® 440 dye conjugates are significantly brighter than the corresponding bioconjugates of DEAC or other spectrally similar dyes (such as SpectrumAqua), making the iFluor 440 conjugates much more sensitive.

Example protocol


PREPARATION OF STOCK SOLUTIONS

Unless otherwise noted, all unused stock solutions should be divided into single-use aliquots and stored at -20 °C after preparation. Avoid repeated freeze-thaw cycles.

1. Protein stock solution (Solution A)
Mix 100 µL of a reaction buffer (e.g., 1 M  sodium carbonate solution or 1 M phosphate buffer with pH ~9.0) with 900 µL of the target protein solution (e.g. antibody, protein concentration >2 mg/mL if possible) to give 1 mL protein labeling stock solution.
Note     The pH of the protein solution (Solution A) should be 8.5 ± 0.5. If the pH of the protein solution is lower than 8.0, adjust the pH to the range of 8.0-9.0 using 1 M  sodium bicarbonate solution or 1 M pH 9.0 phosphate buffer.
Note     The protein should be dissolved in 1X phosphate buffered saline (PBS), pH 7.2-7.4. If the protein is dissolved in Tris or glycine buffer, it must be dialyzed against 1X PBS, pH 7.2-7.4, to remove free amines or ammonium salts (such as ammonium sulfate and ammonium acetate) that are widely used for protein precipitation.
Note     Impure antibodies or antibodies stabilized with bovine serum albumin (BSA) or gelatin will not be labeled well. The presence of sodium azide or thimerosal might also interfere with the conjugation reaction. Sodium azide or thimerosal can be removed by dialysis or spin column for optimal labeling results.
Note     The conjugation efficiency is significantly reduced if the protein concentration is less than 2 mg/mL. For optimal labeling efficiency the final protein concentration range of 2-10 mg/mL is recommended.


2. iFluor™ 440 SE stock solution (Solution B)
Add anhydrous DMSO into the vial of iFluor™ 440 SE to make a 10 mM stock solution. Mix well by pipetting or vortex.
Note     Prepare the dye stock solution (Solution B) before starting the conjugation. Use promptly. Extended storage of the dye stock solution may reduce the dye activity. Solution B can be stored in freezer for two weeks when kept from light and moisture. Avoid freeze-thaw cycles.

SAMPLE EXPERIMENTAL PROTOCOL

This labeling protocol was developed for the conjugate of Goat anti-mouse IgG with iFluor™ 440 SE. You might need further optimization for your particular proteins.
Note     Each protein requires distinct dye/protein ratio, which also depends on the properties of dyes. Over labeling of a protein could detrimentally affects its binding affinity while the protein conjugates of low dye/protein ratio gives reduced sensitivity.


Run conjugation reaction
  1. Use 10:1 molar ratio of Solution B (dye)/Solution A (protein) as the starting point:  Add 5 µL of the dye stock solution (Solution B, assuming the dye stock solution is 10 mM) into the vial of the protein solution (95 µL of Solution A) with effective shaking. The concentration of the protein is ~0.05 mM assuming the protein concentration is 10 mg/mL and the molecular weight of the protein is ~200KD.
    Note     We recommend to use 10:1 molar ratio of Solution B (dye)/Solution A (protein). If it is too less or too high, determine the optimal dye/protein ratio at 5:1, 15:1 and 20:1 respectively.
  2. Continue to rotate or shake the reaction mixture at room temperature for 30-60 minutes.

Purify the conjugation
The following protocol is an example of dye-protein conjugate purification by using a Sephadex G-25 column.
  1. Prepare Sephadex G-25 column according to the manufacture instruction.
  2. Load the reaction mixture (From "Run conjugation reaction") to the top of the Sephadex G-25 column.
  3. Add PBS (pH 7.2-7.4) as soon as the sample runs just below the top resin surface.
  4. Add more PBS (pH 7.2-7.4) to the desired sample to complete the column purification. Combine the fractions that contain the desired dye-protein conjugate.
    Note     For immediate use, the dye-protein conjugate need be diluted with staining buffer, and aliquoted for multiple uses.
    Note     For longer term storage, dye-protein conjugate solution need be concentrated or freeze dried.

Calculators


Common stock solution preparation

Table 1. Volume of DMSO needed to reconstitute specific mass of iFluor® 440 succinimidyl ester to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.

0.1 mg0.5 mg1 mg5 mg10 mg
1 mM144.336 µL721.678 µL1.443 mL7.217 mL14.434 mL
5 mM28.867 µL144.336 µL288.671 µL1.443 mL2.887 mL
10 mM14.434 µL72.168 µL144.336 µL721.678 µL1.443 mL

Molarity calculator

Enter any two values (mass, volume, concentration) to calculate the third.

Mass (Calculate)Molecular weightVolume (Calculate)Concentration (Calculate)Moles
/=x=

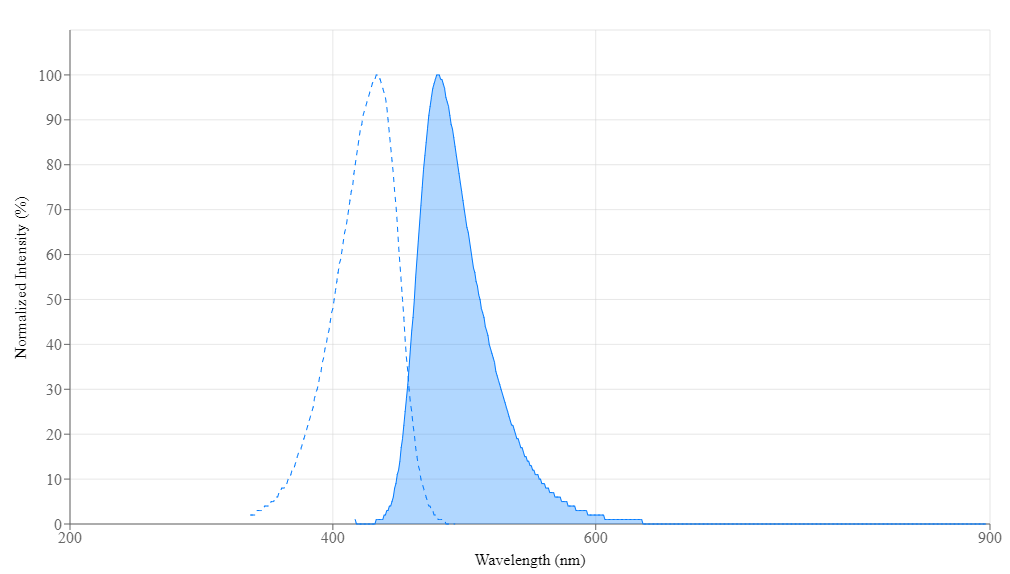

Spectrum


Open in Advanced Spectrum Viewer
spectrum

Spectral properties

Correction Factor (260 nm)0.352
Correction Factor (280 nm)0.229
Extinction coefficient (cm -1 M -1)400001
Excitation (nm)434
Emission (nm)480
Quantum yield0.671

Product family


NameExcitation (nm)Emission (nm)Extinction coefficient (cm -1 M -1)Quantum yieldCorrection Factor (260 nm)Correction Factor (280 nm)
iFluor® 350 succinimidyl ester3454502000010.9510.830.23
iFluor® 405 succinimidyl ester4034273700010.9110.480.77
iFluor® 430 succinimidyl ester4334984000010.7810.680.3
iFluor® 450 succinimidyl ester4515024000010.8210.450.27
iFluor® 460 succinimidyl ester468493800001~0.810.980.46
iFluor® 488 succinimidyl ester4915167500010.910.210.11
iFluor® 514 succinimidyl ester5115277500010.8310.2650.116
iFluor® 532 succinimidyl ester5375609000010.6810.260.16
iFluor® 546 succinimidyl ester54155710000010.6710.250.15
iFluor® 555 succinimidyl ester55757010000010.6410.230.14
iFluor® 560 succinimidyl ester56057112000010.5710.04820.069
iFluor® 568 succinimidyl ester56858710000010.5710.340.15
iFluor® 570 succinimidyl ester56057112000010.5810.0480.069
iFluor® 594 succinimidyl ester58860418000010.5310.050.04
iFluor® 597 succinimidyl ester59861810000010.710.3350.514
iFluor® 610 succinimidyl ester61062811000010.8510.320.49
iFluor® 633 succinimidyl ester64065425000010.2910.0620.044
iFluor® 647 succinimidyl ester65667025000010.2510.030.03
iFluor® 660 succinimidyl ester66367825000010.2610.070.08
iFluor® 665 succinimidyl ester667692110,00010.2210.120.09
iFluor® 670 succinimidyl ester67168220000010.5510.030.033
iFluor® 680 succinimidyl ester68470122000010.2310.0970.094
iFluor® 690 succinimidyl ester68570422000010.3010.090.06
iFluor® 700 succinimidyl ester69071322000010.2310.090.04
iFluor® 710 succinimidyl ester71773919000010.6010.120.07
iFluor® 720 succinimidyl ester71674024000010.1410.150.13
iFluor® 740 succinimidyl ester74276422500010.2010.160.16
iFluor® 750 succinimidyl ester75777927500010.1210.0440.039
iFluor® 770 succinimidyl ester77779725000010.160.090.08
iFluor® 780 succinimidyl ester78480825000010.1610.130.12
iFluor® 790 succinimidyl ester78781225000010.1310.10.09
iFluor® 800 succinimidyl ester80182025000010.1110.030.08
iFluor® 810 succinimidyl ester81182225000010.0510.090.15
iFluor® 820 succinimidyl ester8228502500001-0.110.16
iFluor® 830 succinimidyl ester830867----
iFluor® 840 succinimidyl ester8368792000001-0.20.09
iFluor® 860 succinimidyl ester8538782500001-0.10.14
Show More (38)

References


View all 12 references: Citation Explorer
7-(Diethylamino)coumarin-3-carboxylic acid as derivatization reagent for 405 nm laser-induced fluorescence detection: A case study for the analysis of sulfonamides by capillary electrophoresis.
Authors: Wu, Chengxin and Sun, Yuanyuan and Wang, Yuanhang and Duan, Wenzhen and Hu, Jiangyue and Zhou, Lei and Pu, Qiaosheng
Journal: Talanta (2019): 16-22
Design, synthesis and perception of fluorescently labeled isoprenoid cytokinins.
Authors: Kubiasová, Karolina and Mik, Václav and Nisler, Jaroslav and Hönig, Martin and Husičková, Alexandra and Spíchal, Lukáš and Pěkná, Zuzana and Šamajová, Olga and Doležal, Karel and Plíhal, Ondřej and Benková, Eva and Strnad, Miroslav and Plíhalová, Lucie
Journal: Phytochemistry (2018): 1-11
Intracellular Uncaging of cGMP with Blue Light.
Authors: Agarwal, Hitesh K and Zhai, Shenyu and Surmeier, D James and Ellis-Davies, Graham C R
Journal: ACS chemical neuroscience (2017): 2139-2144
Wavelength-selective one- and two-photon uncaging of GABA.
Authors: Amatrudo, Joseph M and Olson, Jeremy P and Lur, G and Chiu, Chiayu Q and Higley, Michael J and Ellis-Davies, Graham C R
Journal: ACS chemical neuroscience (2014): 64-70
A water soluble fluorescent polymer as a dual colour sensor for temperature and a specific protein.
Authors: Inal, Sahika and Kölsch, Jonas D and Sellrie, Frank and Schenk, Jörg A and Wischerhoff, Erik and Laschewsky, André and Neher, Dieter
Journal: Journal of materials chemistry. B (2013): 6373-6381
Structures, synthesis, and human Nod1 stimulation of immunostimulatory bacterial peptidoglycan fragments in the environment.
Authors: Fujimoto, Yukari and Fukase, Koichi
Journal: Journal of natural products (2011): 518-25
Fluorescent agonists for the Torpedo nicotinic acetylcholine receptor.
Authors: Krieger, Florian and Mourot, Alexandre and Araoz, Romulo and Kotzyba-Hibert, Florence and Molgó, Jordi and Bamberg, Ernst and Goeldner, Maurice
Journal: Chembiochem : a European journal of chemical biology (2008): 1146-53
Antimicrobial activity of various cationic molecules on foodborne pathogens.
Authors: Conte, Mariachiara and Aliberti, Francesco and Fucci, Laura and Piscopo, Marina
Journal: World journal of microbiology & biotechnology (2007): 1679-83
A series of related nucleotide analogues that aids optimization of fluorescence signals in probing the mechanism of P-loop ATPases, such as actomyosin.
Authors: Webb, Martin R and Reid, Gordon P and Munasinghe, V Ranjit N and Corrie, John E T
Journal: Biochemistry (2004): 14463-71
Fluorescent coumarin-labeled nucleotides to measure ADP release from actomyosin.
Authors: Webb, M R and Corrie, J E
Journal: Biophysical journal (2001): 1562-9
