iFluor™ 790 maleimide

Image Viewer

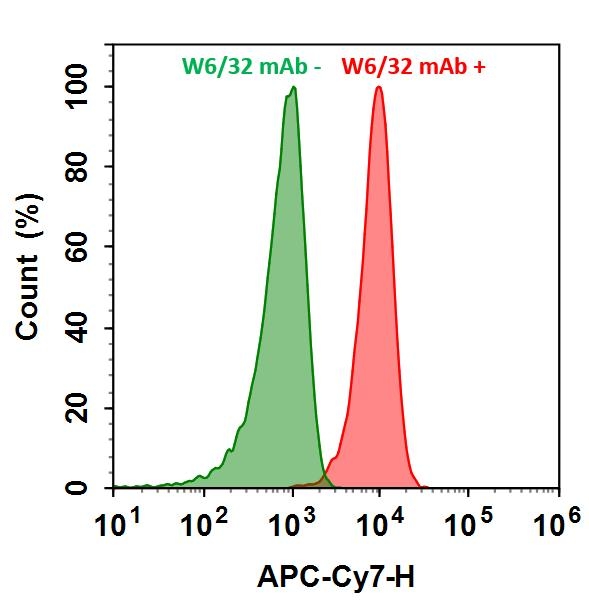

<p>HL-60 cells were incubated with (Red, +) or without (Green, -) Anti-human HLA-ABC (W6/32 mAb), followed by iFluor™ 790 goat anti-mouse IgG conjugate. The fluorescence signal was monitored using ACEA NovoCyte flow cytometer in APC-Cy7 channel.</p>
Roll over image to zoom in
Loading...

Unit Size: Cat No: Price (USD): Qty:
1 mg 1366 $295


Export item/cart as Excel file

Send item/cart as email
EXPORT TO EXCEL X

Export:
EXPORT TO EMAIL X
Important: We request your email address to ensure that the recipient(s) knows you intended for them to see the email, and that it is not junk mail.
Export:
Your Name*:
Your Email*:
Recipient Email*:
Your Personal Message:
Additional Ordering Information
Telephone: 1-800-990-8053
Fax: 1-408-733-1304
Email: sales@aatbio.com
International: See distributors





Overview

Ex/Em (nm)782/811
MW1472.51
SolventWater
Storage F/D/L
Category Superior Labeling Dyes
iFluor™ Dyes and Kits
Related General proteins
Labeling via Thiol Groups
In vivo fluorescence imaging uses a sensitive camera to detect fluorescence emission from fluorophores in whole-body living small animals. To overcome the photon attenuation in living tissue, fluorophores with long emission at the near-infrared (NIR) region are generally preferred, including widely used small indocarbocyanine dyes. Recent advances in imaging strategies and reporter techniques for in vivo fluorescence imaging include novel approaches to improve the specificity and affinity of the probes and to modulate and amplify the signal at target sites for enhanced sensitivity. Further emerging developments are aiming to achieve high-resolution, multimodality and lifetime-based in vivo fluorescence imaging. Our iFluor™ 790 is designed to label proteins and other biomolecules with near infrared fluorescence. Conjugates prepared with iFluor™ 790 have the excitation and emission spectra similar to that of indocyanine green (ICG) and the IRDye® 800 dye, with 783/814 nm excitation/emission maxima. iFluor™ 790 dye emission is well separated from commonly used far-red fluorophores such as Cy5, Cy7 or allophycocyanin (APC), facilitating multicolor analysis. This fluorophore is also useful for small animal in-vivo imaging applications or for other imaging applications that require NIR detections such as the two-color western applications with the LI-COR® Odyssey® infrared imaging system.




Calculators
Common stock solution preparation

Table 1. Volume of Water needed to reconstitute specific mass of iFluor™ 790 maleimide to given concentration. Note that volume is only for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.



Molarity calculator

Table 2. Enter any two values (mass, volume, concentration) to calculate the third.

Mass Molecular weight Volume Concentration Moles
/ = x =







Spectrum Advanced Spectrum Viewer

Sorry, your browser does not support inline SVG. Relative Intensity (%) 100 80 60 40 20 0 Sorry, your browser does not support inline SVG.
Sorry, your browser does not support inline SVG. Sorry, your browser does not support inline SVG.
Move mouse over grid to display wavelength & intensity values.

300
400
500
600
700
800
900
Wavelength (nm)





Protocol


Quick Preview

This protocol only provides a guideline, and should be modified according to your specific needs.
  1. Prepare protein stock solution (Solution A):
    1. (Optional) if your protein does not contain a free cysteine, you must treat your protein with DTT or TCEP to generate a thiol group. 10 molar equivalents of DTT or TCEP are sufficient for converting a disulfide bond to two free thiol groups. If DTT is used you must remove free DTT by dialysis or gel filtration before conjugating a dye maleimide to your protein. Following is a sample protocol for generating a free thiol group:

      a. Prepare a fresh solution of 1 M DTT (15.4 mg/100 µl) in distilled water.
      b. Make IgG solution in 20 mM DTT: add 20 µl of DTT stock per ml of IgG solution while mixing. Let stand at room temp for 30 minutes without additional mixing (to minimize reoxidation of cysteines to cystines).
      c. Pass the reduced IgG over a filtration column pre-equilibrated with "Exchange Buffer". Collect 0.25 ml fractions off the column.
      d. Determine the protein concentrations and pool the fractions with the majority of the IgG. This can be done either spectrophotometrically or colorimetrically.
      e. Carry out the conjugation as soon as possible after this step (see below).

      Note 1: IgG solutions should be >4 mg/ml for the best results. The antibody should be concentrated if less than 2 mg/ml. Include an extra 10% for losses on the buffer exchange column.
      Note 2: The reduction can be carried out in almost any buffers from pH 6 to 7, e.g., MES, phosphate or TRIS buffers.
      Note 3: Steps c and d can be replaced by dialysis.

    2. Mix 100 µL of a reaction buffer (e.g., 100 mM MES buffer with pH ~6.0) with 900 µL of the target protein solution (e.g. antibody, protein concentration >2 mg/ml if possible) to give 1 mL protein labeling stock solution.
      Note 1: The pH of the protein solution (Solution A) should be 6.5 ± 0.5.
      Note 2: Impure antibodies or antibodies stabilized with bovine serum albumin (BSA) or other proteins will not be labeled well.
      Note 3: The conjugation efficiency is significantly reduced if the protein concentration is less than 2 mg/mL. For optimal labeling efficiency the final protein concentration range of 2-10 mg/mL is recommended.

  2. Prepare dye stock solution (Solution B):
    Add anhydrous DMSO into the vial of iFluor™ dye maleimide to make a 10-20 mM stock solution. Mix well by pipetting or vortex under subdued light (if possible).
    Note: Prepare the dye stock solution (Solution B) before starting the conjugation. Use promptly. Extended storage of the dye stock solution may reduce the dye activity. Solution B can be stored in freezer for up to 4 weeks when kept from light and moisture. Avoid freeze-thaw cycles.

  3. Determine the optimal dye/protein ratio (optional):
    Note: Each protein requires distinct dye/protein ratio, which also depends on the properties of dyes. Over labeling of a protein could detrimentally affects its binding affinity while the protein conjugates of low dye/protein ratio gives reduced sensitivity. We recommend you experimentally determine the best dye/protein ratio by repeating Steps 4 and 5 using a serial different amount of labeling dye solutions. In general 4-6 dyes/protein are recommended for most of dye-protein conjugates.
    1. Use 10:1 molar ratio of Solution B (dye)/Solution A (protein) as the starting point: Add 5 µl of the dye stock solution (Solution B, assuming the dye stock solution is 10 mM) into the vial of the protein solution (95 µl of Solution A) with effective shaking. The concentration of the protein is ~0.05 mM assuming the protein concentration is 10 mg/mL and the molecular weight of the protein is ~200KD.
      Note: The concentration of the DMSO in the protein solution should be <10%.
    2. Run conjugation reaction (see Step 4 below).
    3. Repeat #3.2 with the molar ratios of Solution B/Solution A at 5:1; 15:1 and 20:1 respectively.
    4. Purify the desired conjugates using premade spin columns.
    5. Calculate the dye/protein ratio (DOS) for the above 4 conjugates (see next page).
    6. Run your functional tests of the above 4 conjugates to determine the best dye/protein ratio to scale up your labeling reaction.

  4. Run conjugation reaction:
    1. Add the appropriate amount of dye stock solution (Solution B) into the vial of the protein solution (Solution A) with effective shaking.
      Note: The best molar ratio of Solution B/Solution is determined from Step 3.6. If Step 3 is skipped, we recommend to use 10:1 molar ratio of Solution B (dye)/Solution A (protein).
    2. Continue to rotate or shake the reaction mixture at room temperature for 30-60 minutes.

  5. Purify the conjugation:
    The following protocol is an example of dye-protein conjugate purification by using a Sephadex G-25 column.
    1. Prepare Sephadex G-25 column according to the manufacture instruction.
    2. Load the reaction mixture (directly from Step 4) to the top of the Sephadex G-25 column.
    3. Add PBS (pH 7.2-7.4) as soon as the sample runs just below the top resin surface.
    4. Add more PBS (pH 7.2-7.4) to the desired sample to complete the column purification. Combine the fractions that contain the desired dye-protein conjugate.
      Note 1: For immediate use, the dye-protein conjugate need be diluted with staining buffer, and aliquoted for multiple uses. Note 2: For longer term storage, dye-protein conjugate solution need be concentrated or freeze dried (see below).





References & Citations

Nanovesicle delivery to the liver via retinol binding protein and platelet-derived growth factor receptors: how targeting ligands affect biodistribution
Authors: Ching-Yun Hsu, Chun-Han Chen, Ibrahim A Aljuffali, You-Shan Dai, Jia-You Fang
Journal: Nanomedicine (2017)






Additional Documents


Safety Data Sheet (SDS)


Catalogs
1. Fluorescent Labeling Probes & Kits

Application Notes
1. AssayWise Letters 2012, Vol 1(2)

Certificate of Analysis
